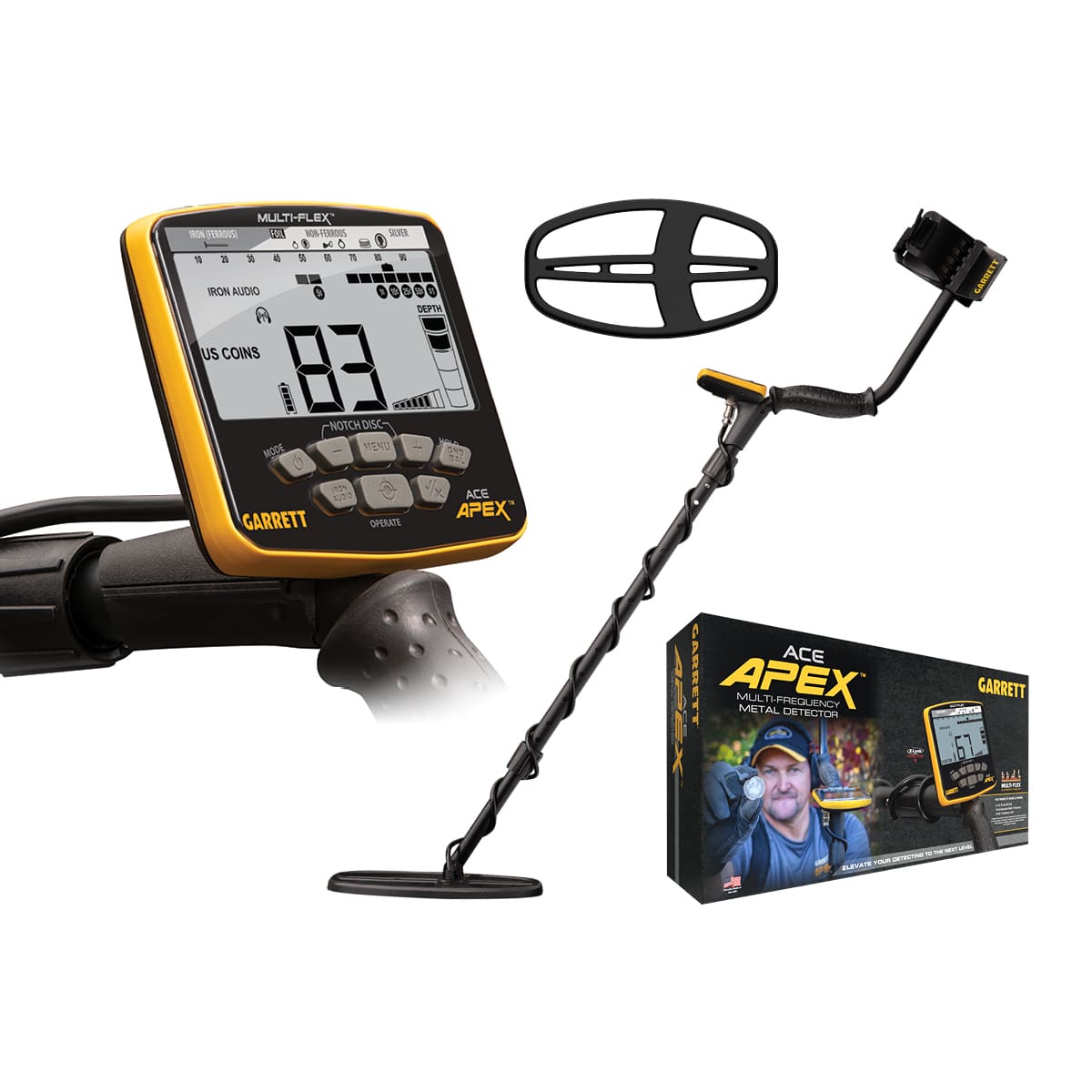

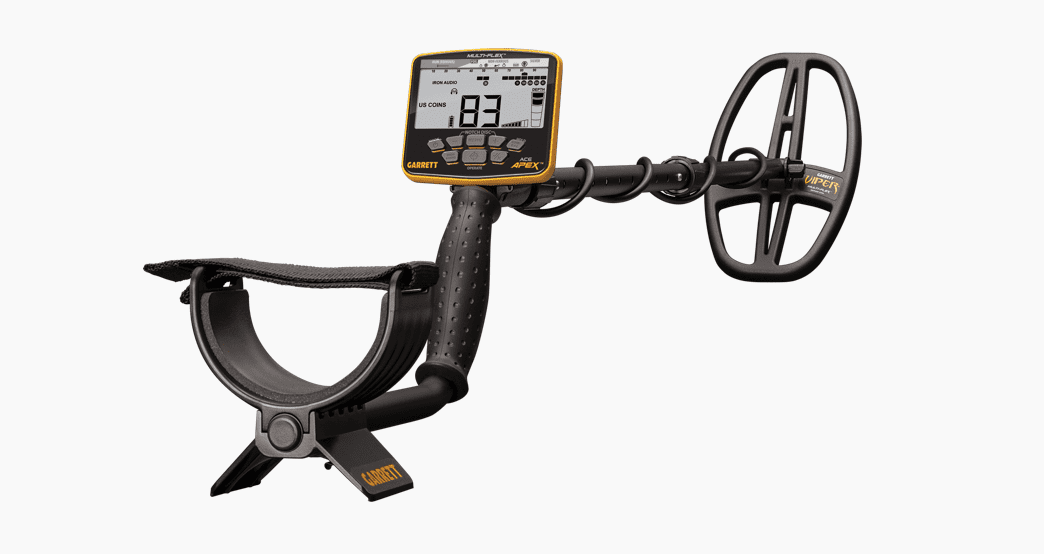

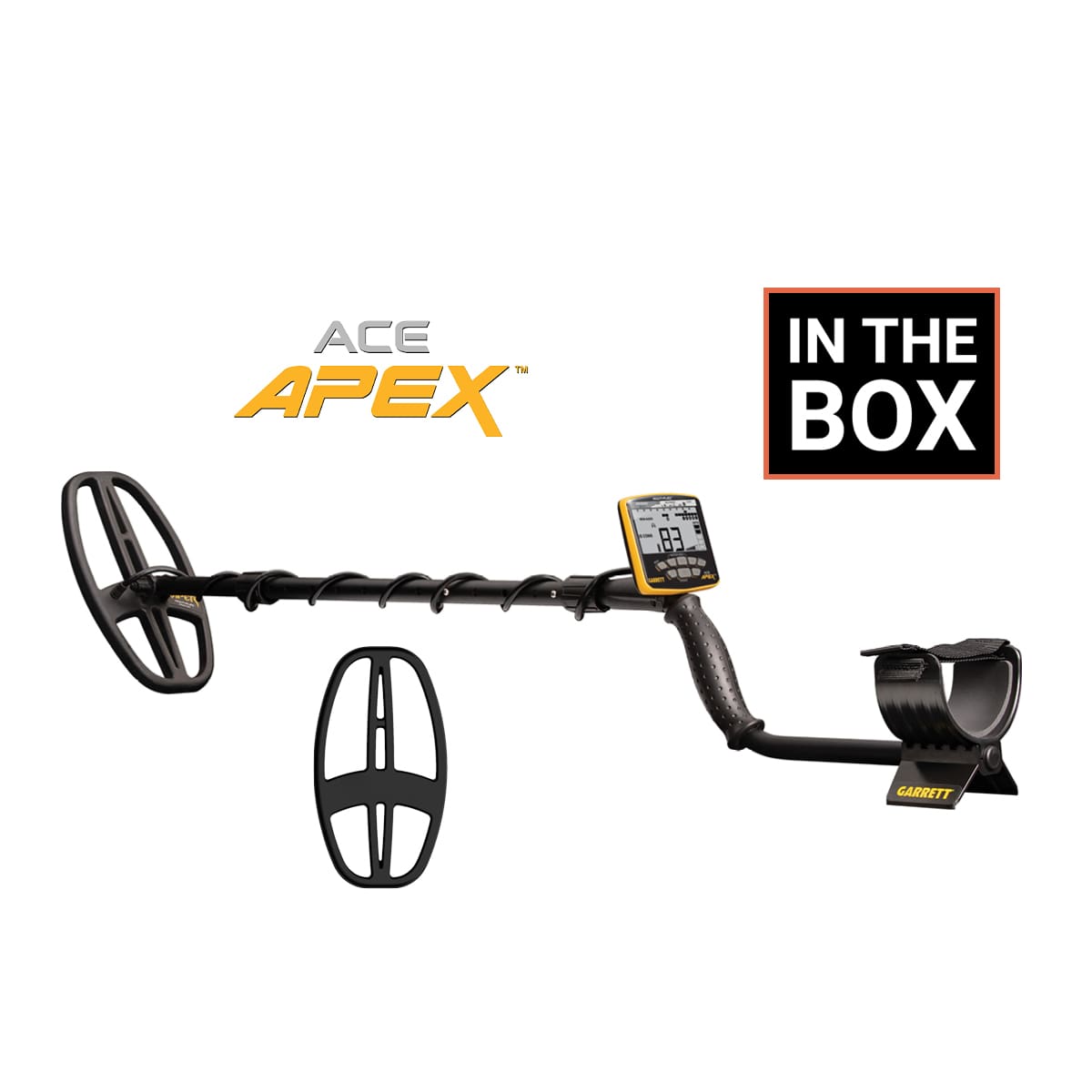

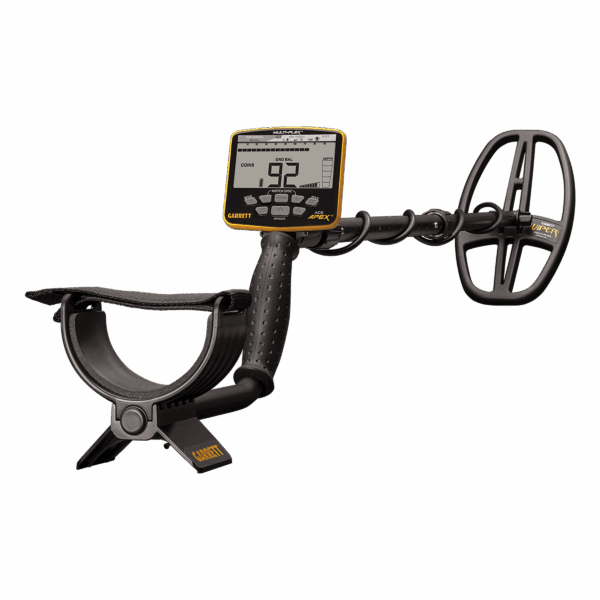

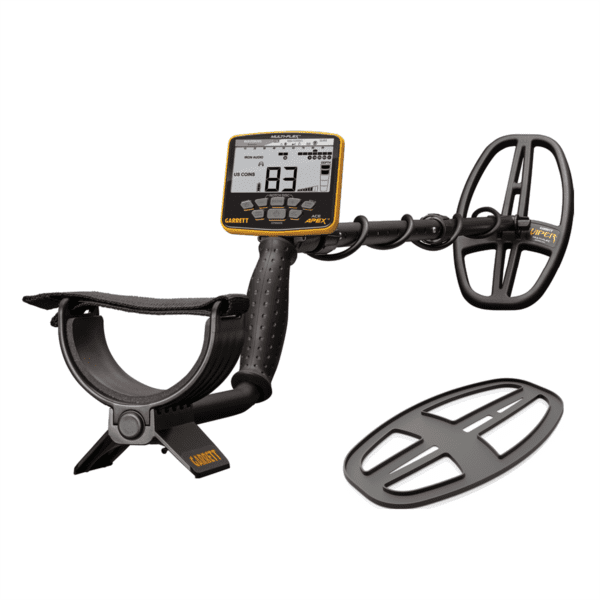

Garrett ACE Apex
Multi-Frequency
The pinnacle of multi-frequency detection flexibility. Includes 6″ x 11″ DD Viper searchcoil and built-in Z-Lynk wireless technology.

The Pinnacle Of Multi-frequency Detection Flexibility
APEX FREQUENCY OPTIONS
5 kHz | 10 kHz | 15 kHz | 20 kHz | Multi-Frequency | Multi-Salt
COMPLETE FLEXIBILITY
Garrett’s Multi-Flex technology, fueled by a cutting edge, broad-bandwidth digital platform, simply gives you more versatility with the Apex than can be found on any detector in its price range!

IRON AUDIO
Choose from powerful single frequencies to enhance detection on specific targets*, or select one of Apex’s simultaneous multifrequency modes to achieve excellent detection on all targets in all soils.
* Note: lower frequencies generally offer improved detection on larger and more conductive targets (i.e. large silver coins). Higher frequencies generally offer improved detection on smaller and less conductive targets (i.e., hammered silver coins, gold nuggets).
MULTI-FLEX PROVIDES TRUE TREASURE HUNTING VERSATILITY
Click on video to see a quick recap of Apex’s Multi-Flex Multi-Frequency technology.
CLICK ABOVE FOR IRON VOLUME™ DEMONSTRATION!
Iron Volume:
CONTROL WHAT YOU WANT TO HEAR
IRON VOLUME allows user to decrease the volume of iron targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease volume of undesired items.
With eight Iron Volume adjustments, Apex offers more flexibility than any other detectors in its price range.

Highly Versatile
Multi-Flex Multi-Frequency technology makes Apex ideal for coin shooting, relic hunting, shallow water wading, beach hunting, and even prospecting!
Simplicity… With Full Control

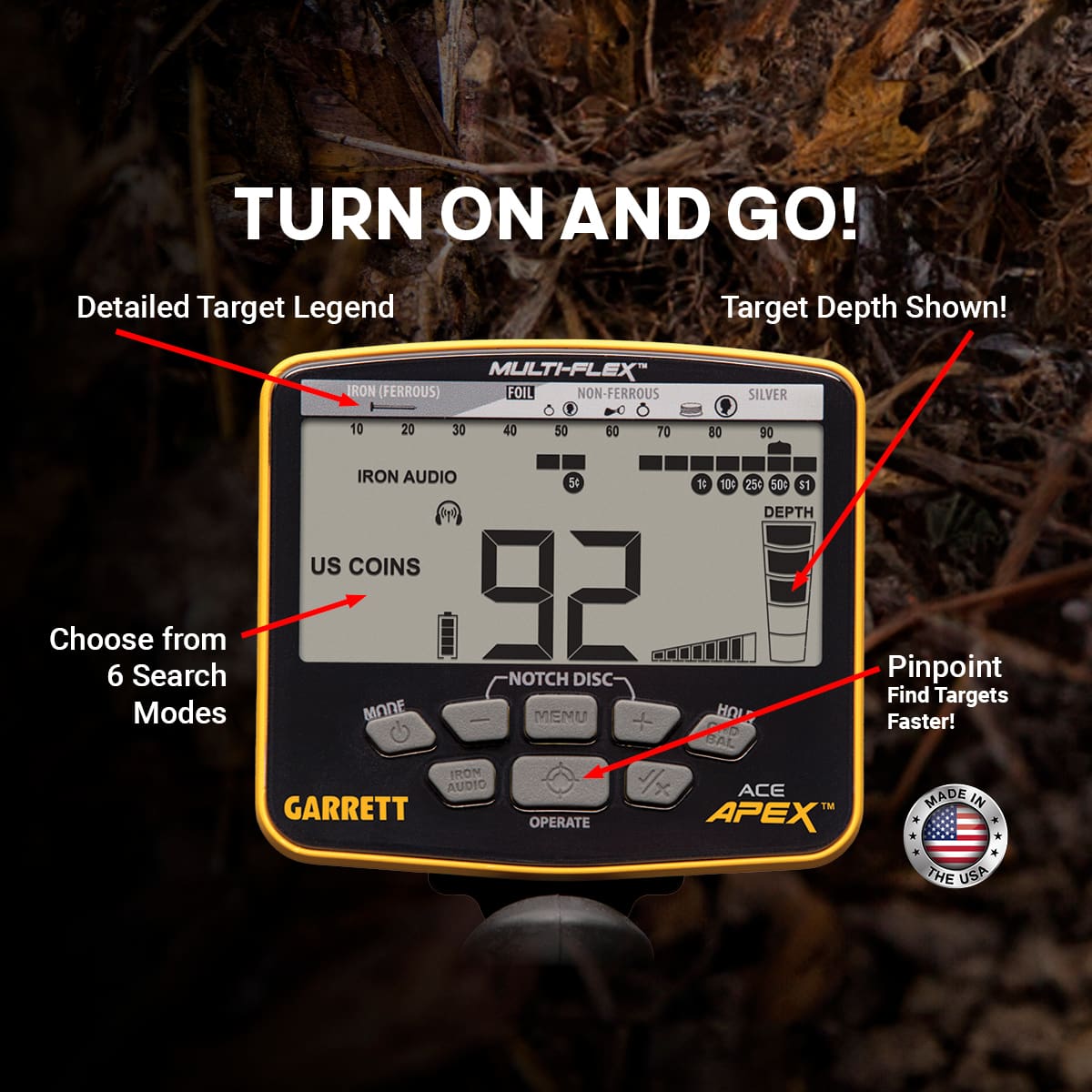

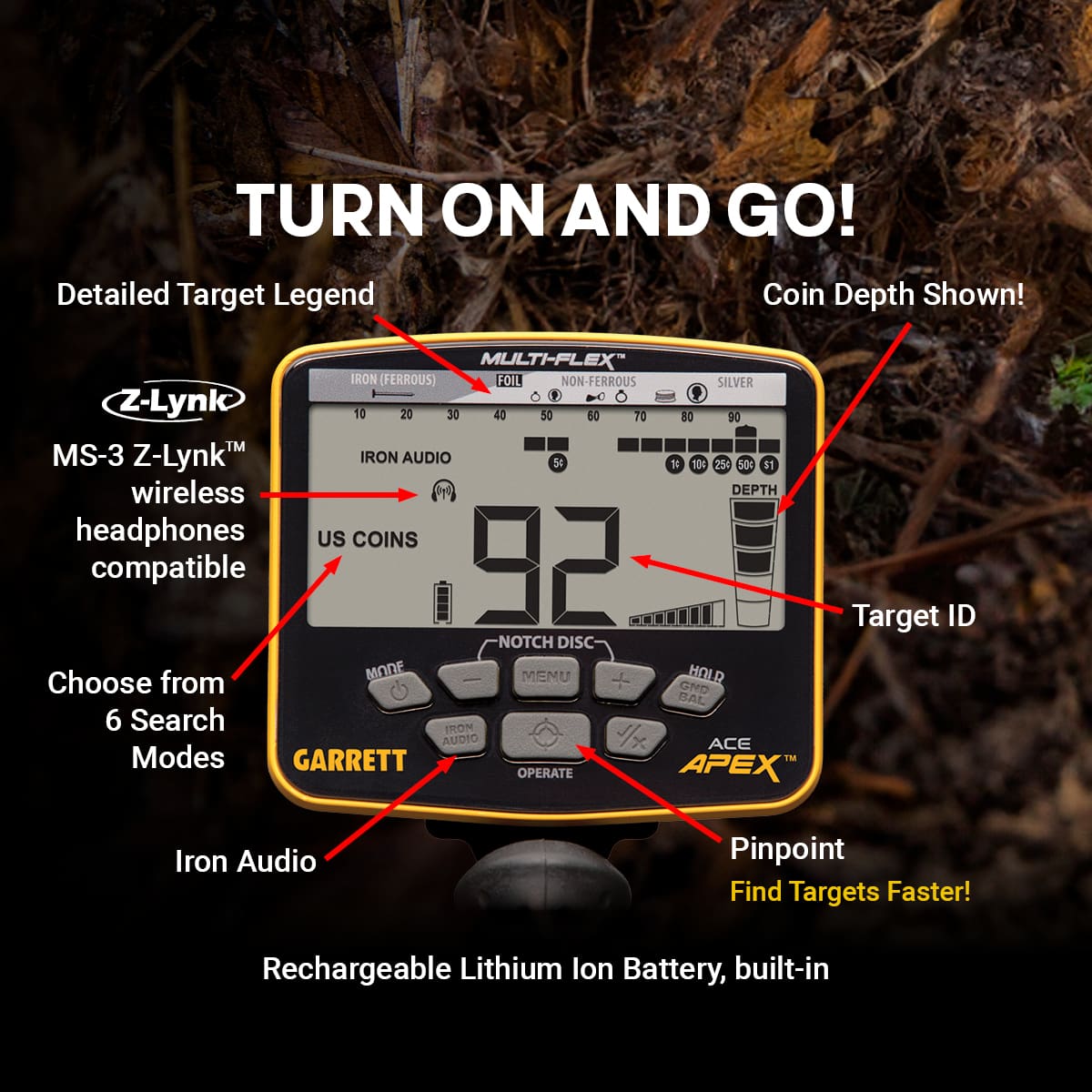

INTUITIVE AND EFFICIENT CONTROLS
Direct drive buttons for most frequently used controls. Easy-access menu adjustments for other controls.
Hybrid Audio System
The Apex target audio provides the simplicity of binary audio (found on existing ACE detectors) with the additional benefits of subtle proportional audio for faint targets.
SIX DETECTION MODES + PINPOINT
Zero, Coins, US Coins (with coin icons), Jewelry, Relics, and Custom
HI-RESOLUTION DISCRIMINATION
Twenty pixels of Notch Discrimination, including 8 pixels of Iron.
HI-RESOLUTION GROUND BALANCE
175 points of ground balance resolution (like the Garrett AT Max), ranging from ferrous ground to saltwater.
BACKLIT LCD
LARGE TARGET ID NUMBERS
VOLUME CONTROL
For both the built-in speaker and headphones.
RECHARGEABLE BATTERY
Built-in rechargeable lithium ion battery provides up to approximately 15 hours of use, depending on setting. Micro-USB charging cable included.
EIGHT SENSITIVITY/DEPTH ADJUSTMENTS
1/8” JACK for optional wired headphones
IRON AUDIO
Garrett’s unique feature helps to correctly identify complex iron objects, such as bottle caps.
BUILT-IN Z-LYNK WIRELESS TECHNOLOGY
Up to 6 times faster than Bluetooth. Hunt without the cords!
5-TONE AUDIBLE TARGET ID
Five distinct tones provide greater audible target identification than on previous Garrett detectors.
Unleash The Viper
Light weight. Broad coverage. Excellent target separation.

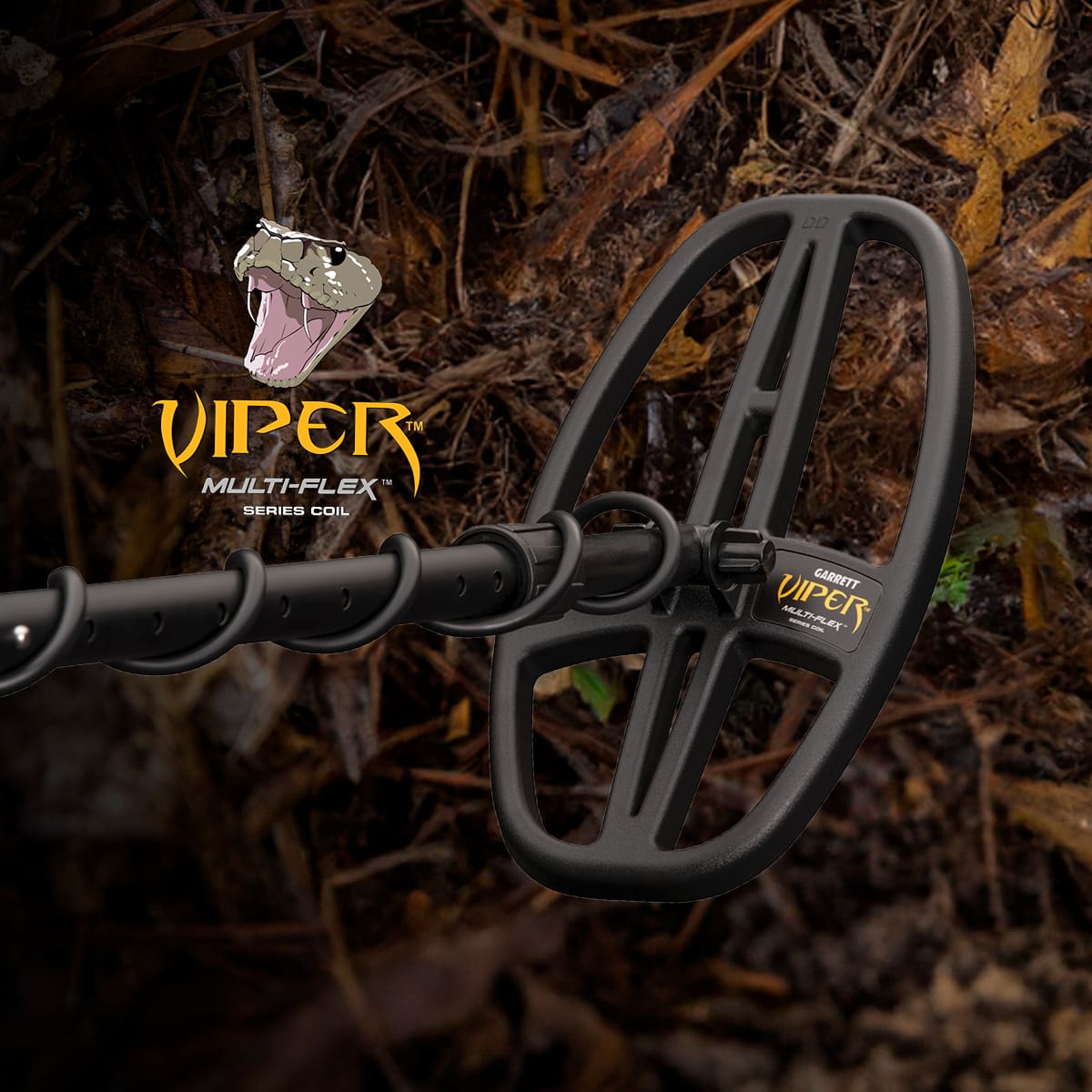

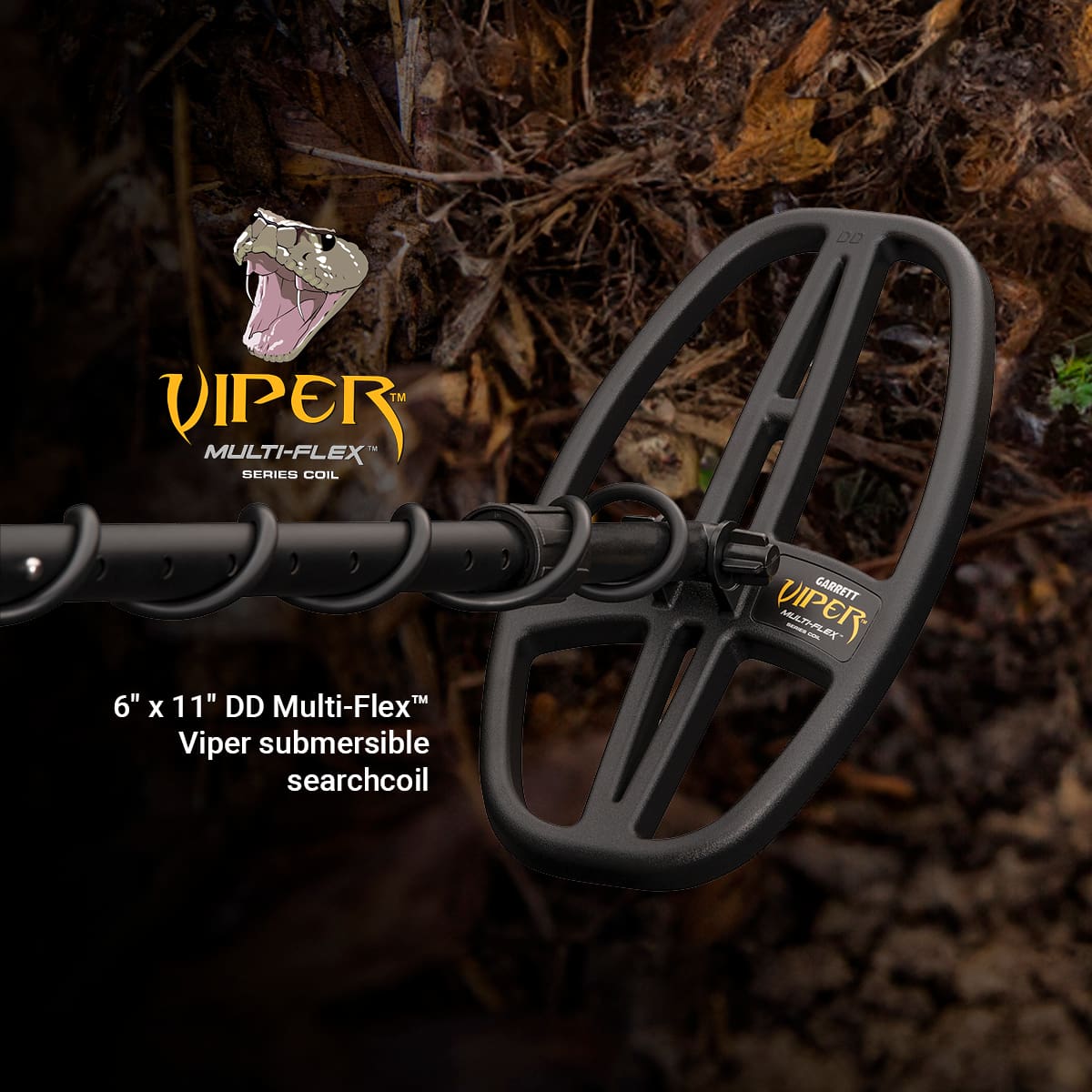

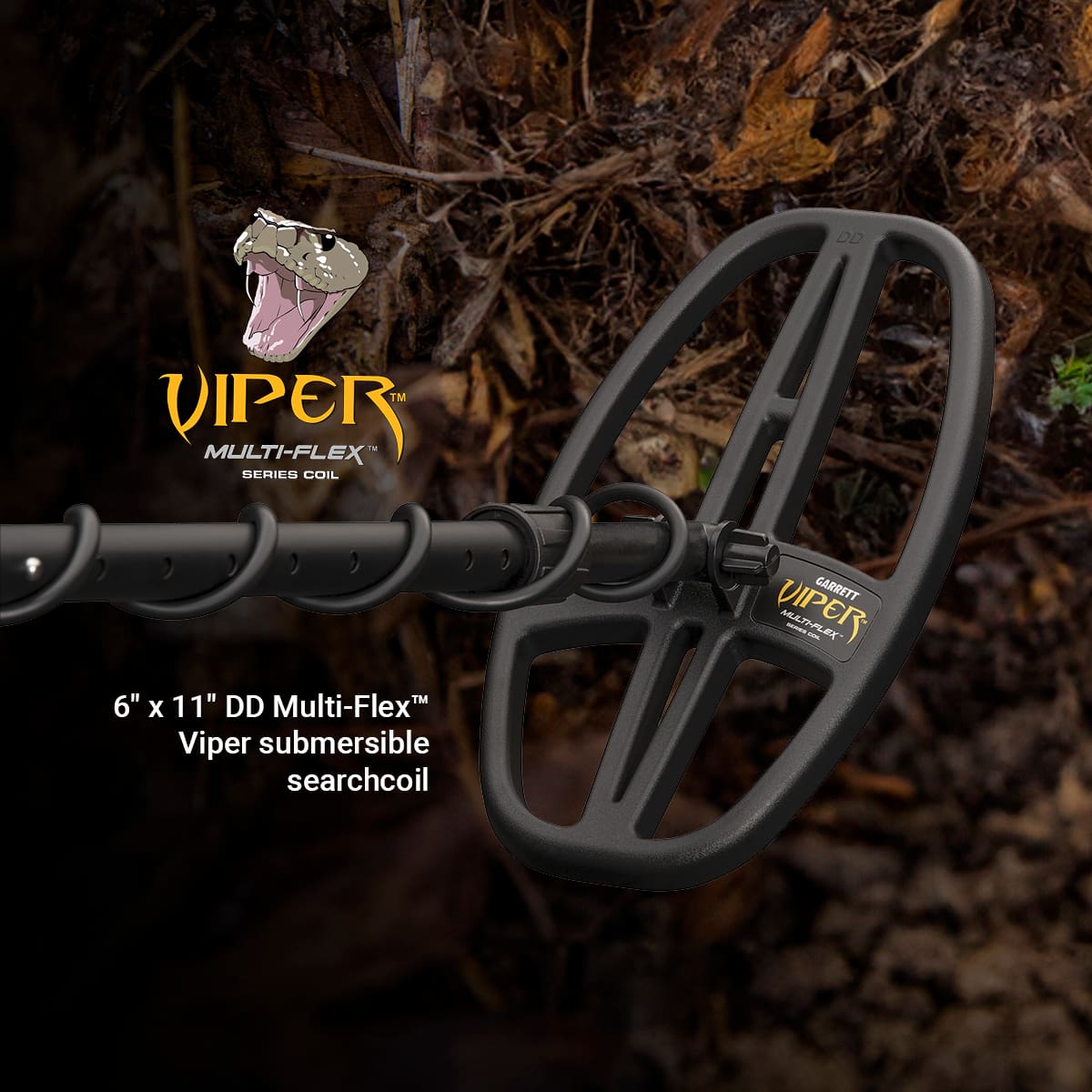

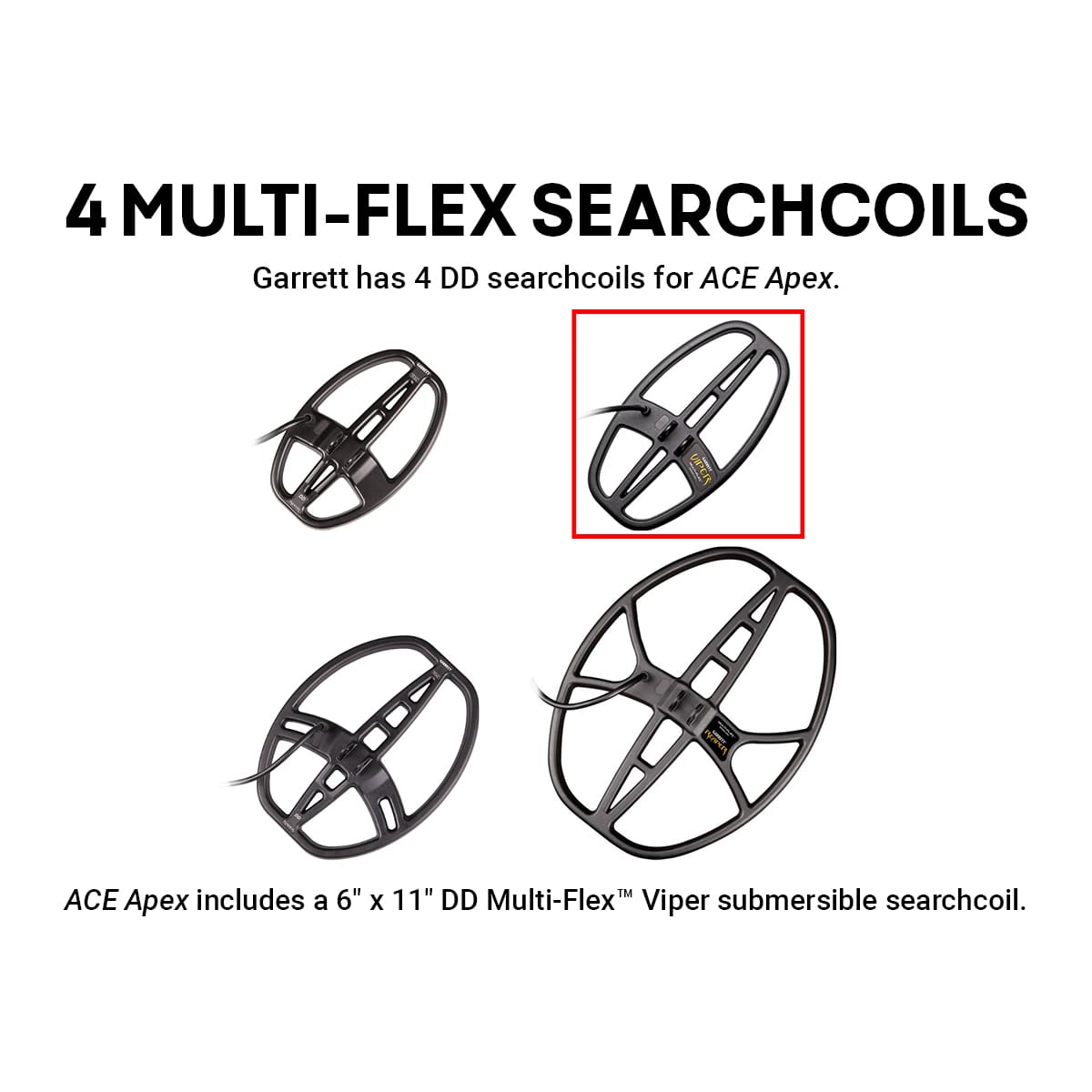

6″ x 11″ DD Multi-Flex™ Viper Searchcoil
- Fully waterproof, the Viper is a blend of two of Garrett’s most popular DD coils.
- The 11″ size is large enough to cover plowed fields, but its narrow 6″ footprint allows easy separation of targets in iron-infested areas.
- The Viper is designed as a low-impedance, broad-bandwidth coil to support the new Apex Multi-Flex frequency technology.
Note: As a result of the Multi-Flex coil technology, the Apex Viper coil is not compatible with older ACE detectors. Prior ACE coils are not compatible with an Apex detector.

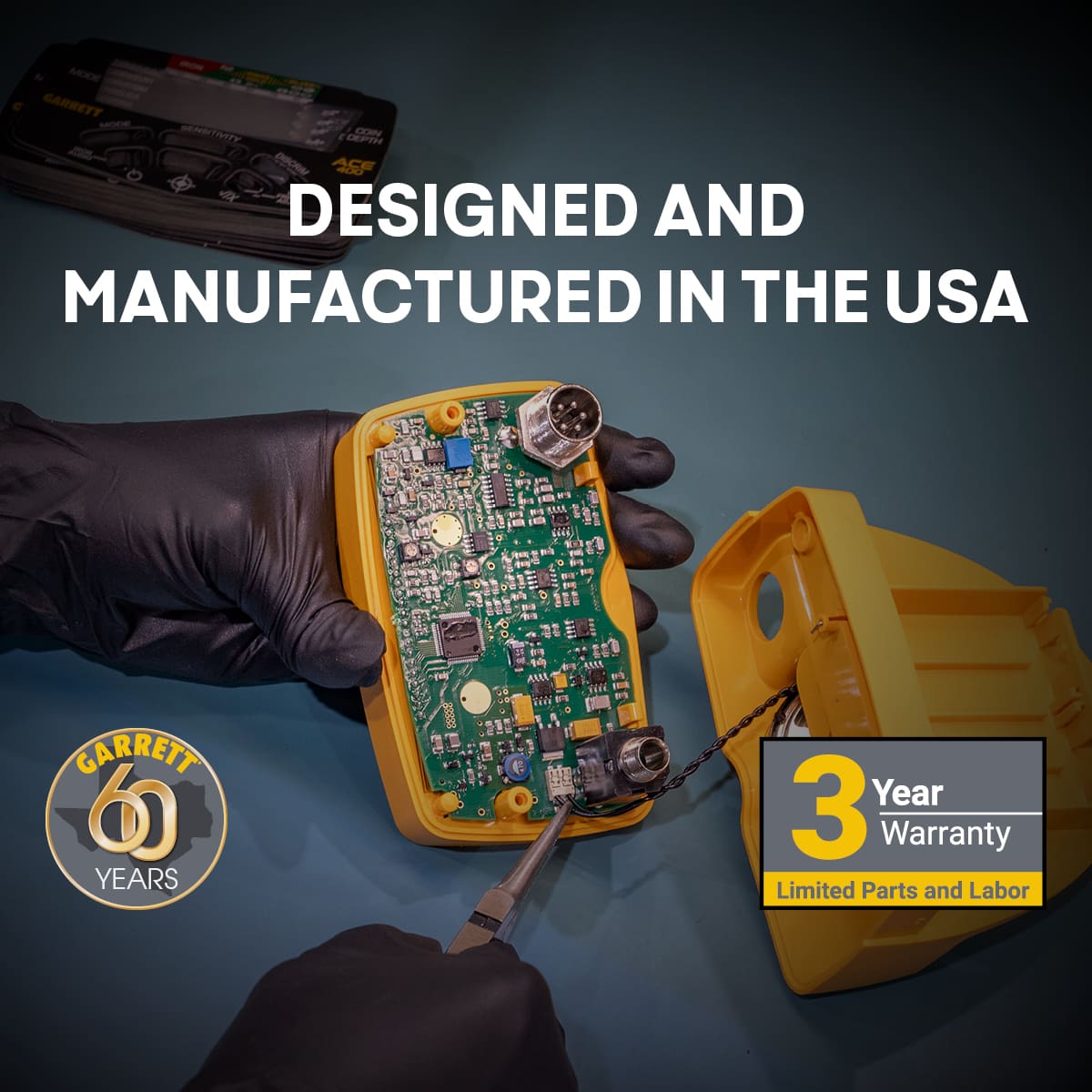

Proudly made in America, all Garrett metal detectors come with a 3-year limited warranty covering defects in materials and workmanship. It’s our commitment to quality, durability, and your long-term peace of mind.


PRODUCT HIGHLIGHTS
Click to Explore the ACE APEX™
Find out more about key features and the technology behind the ACE Apex™ by clicking on the buttons below.

ACE APEX Firmware UPDATE
