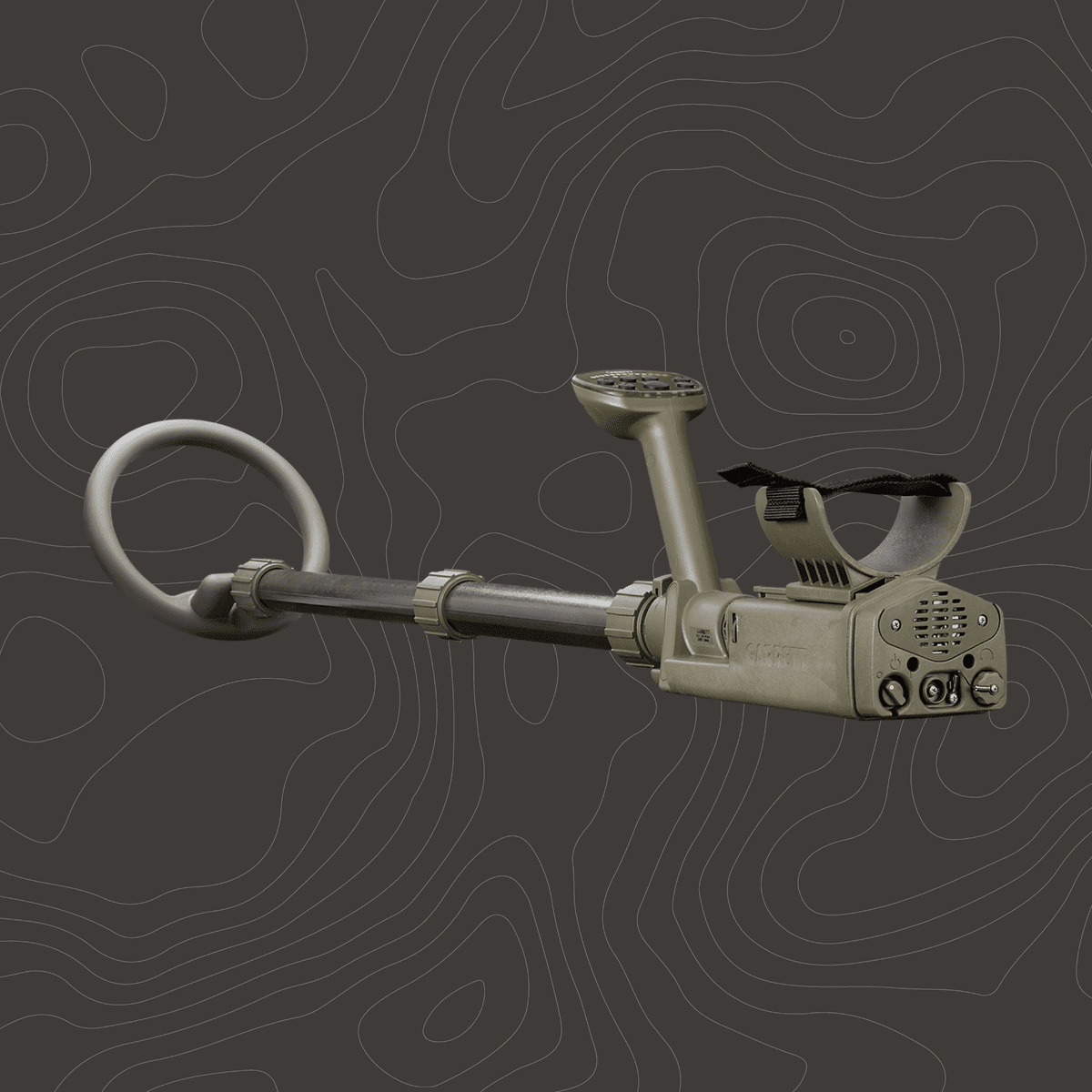

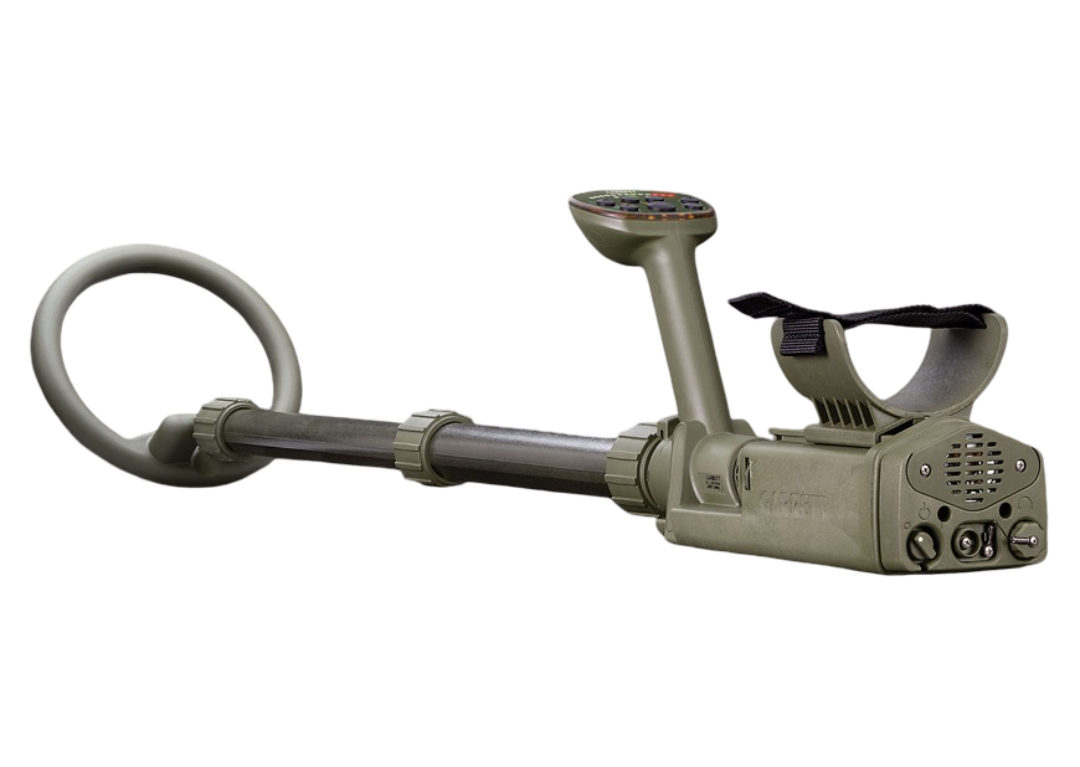

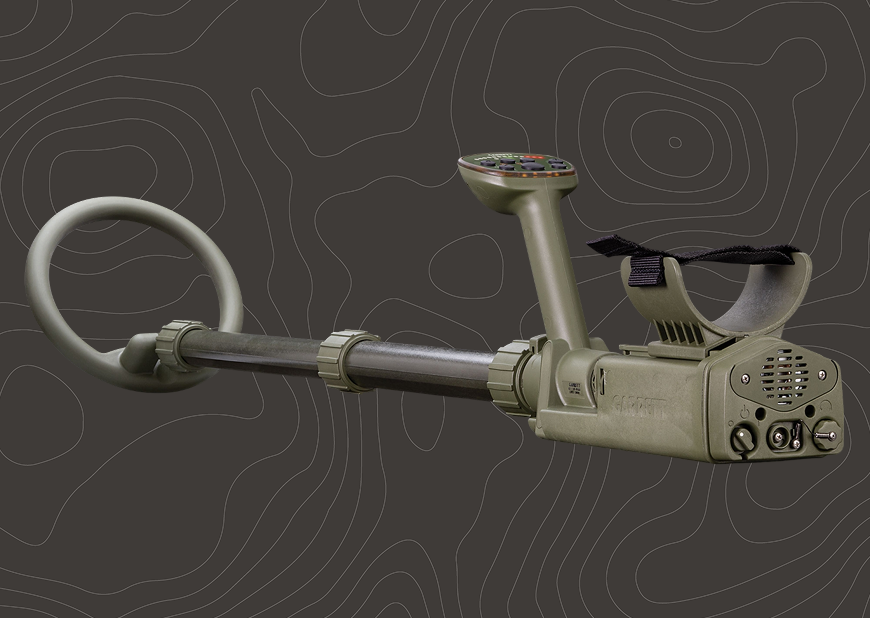

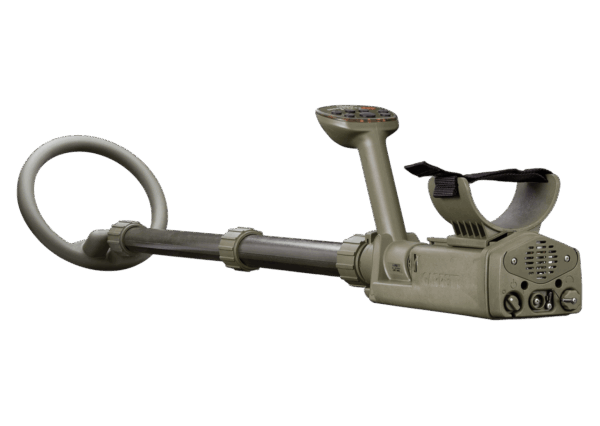

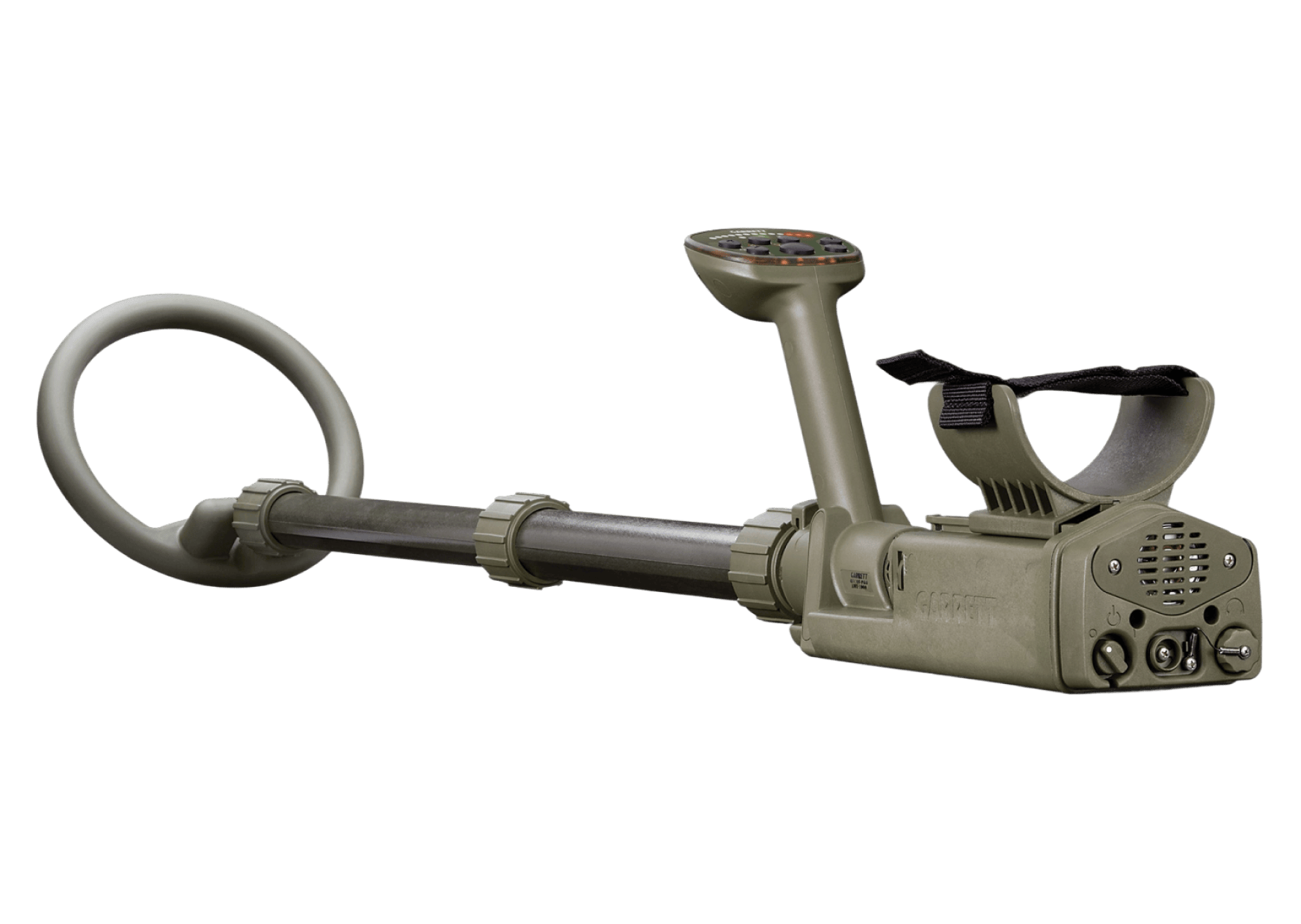

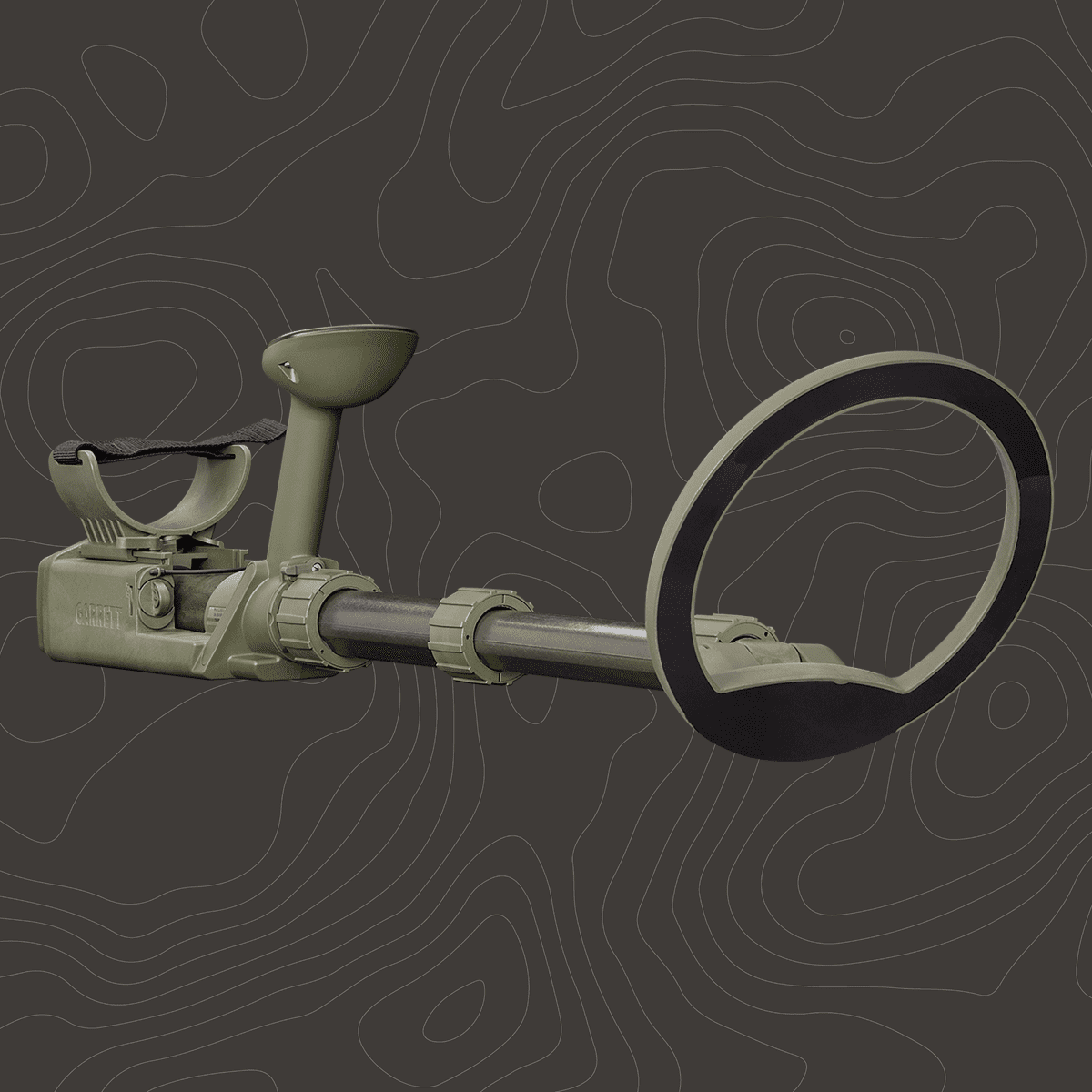

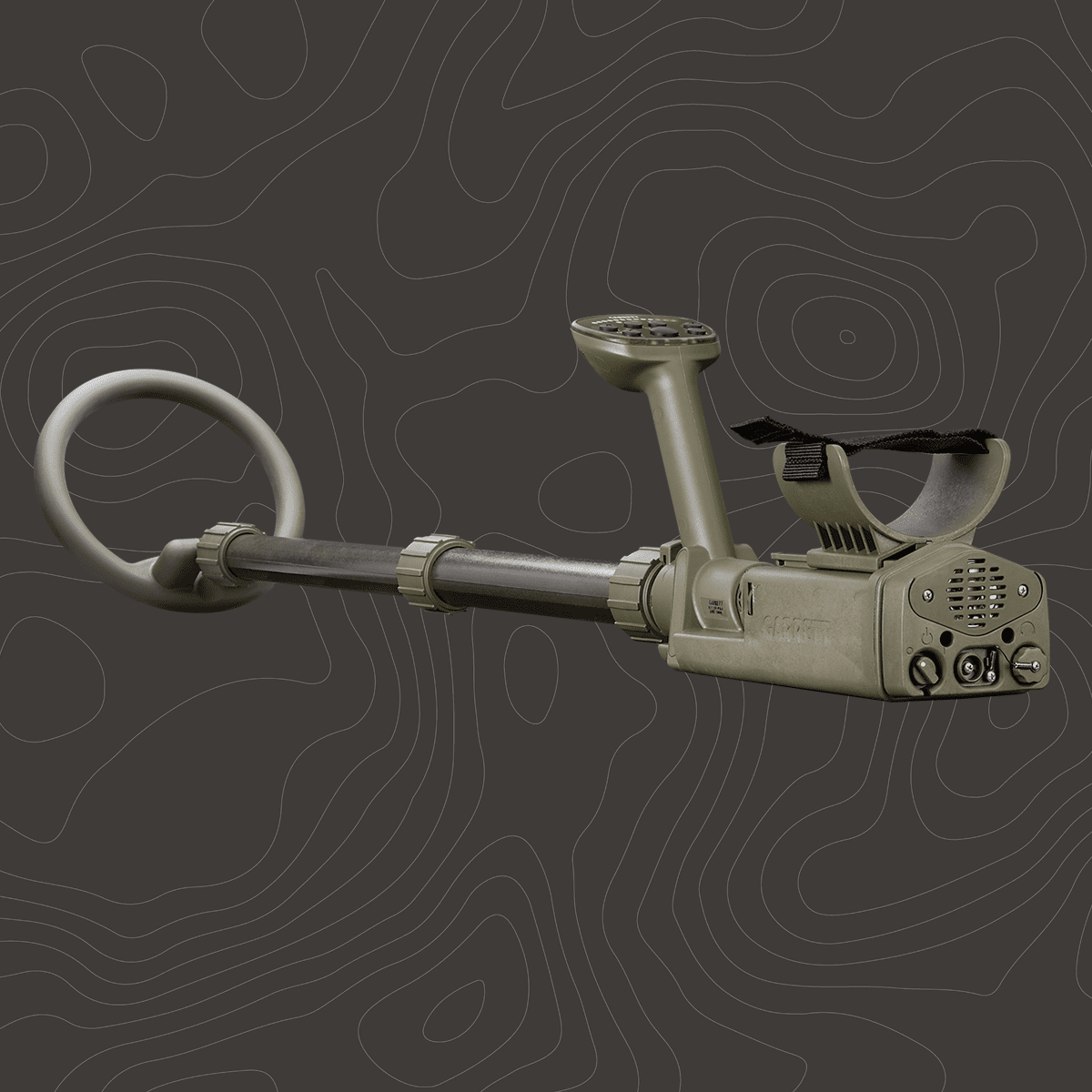

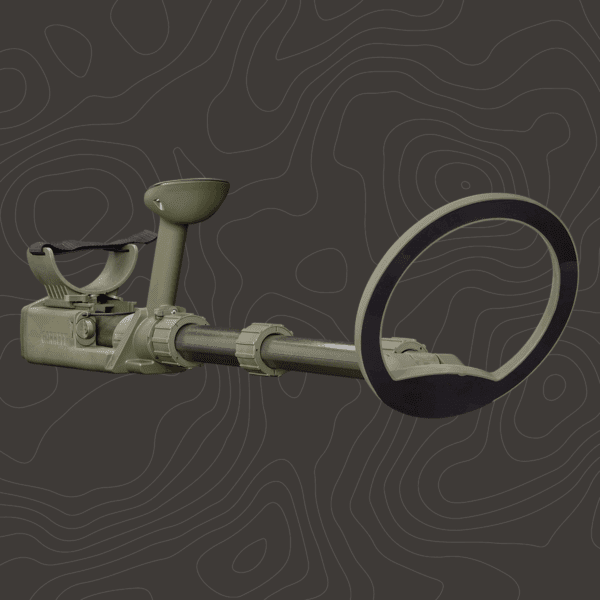

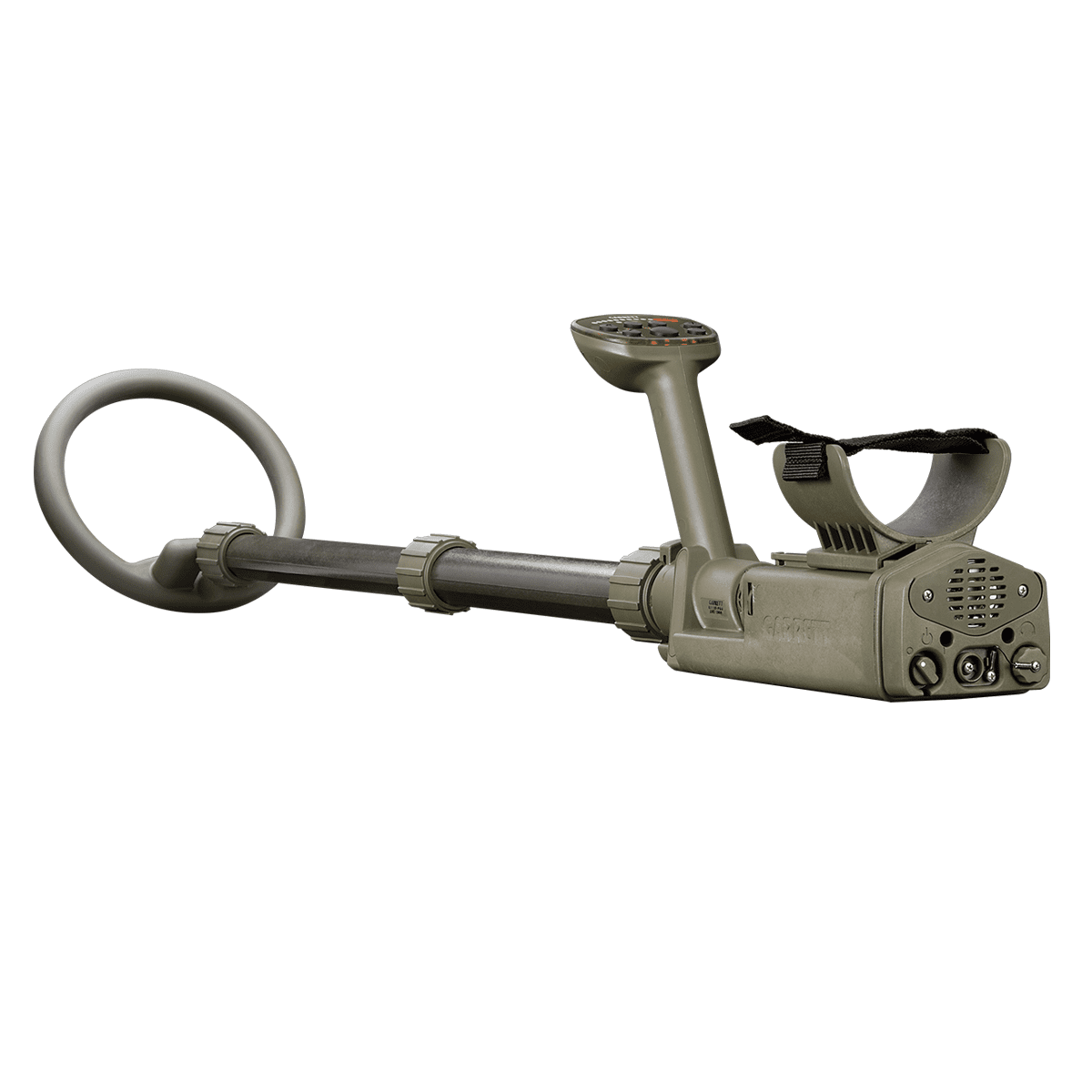

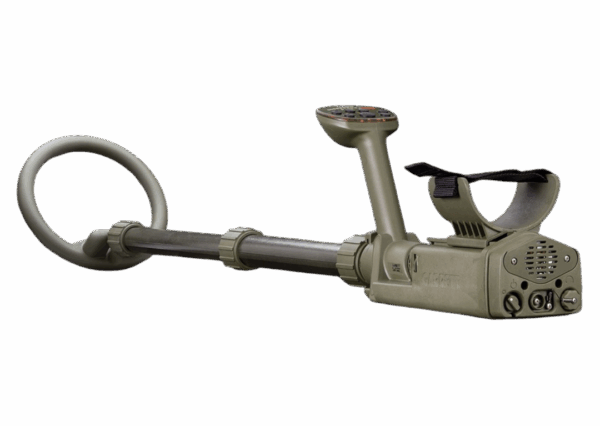

Garrett RECON PRO AML-1000™
Detect deeper, low-metal targets with high precision and performance. True static search ability.
Full Operational Versatility

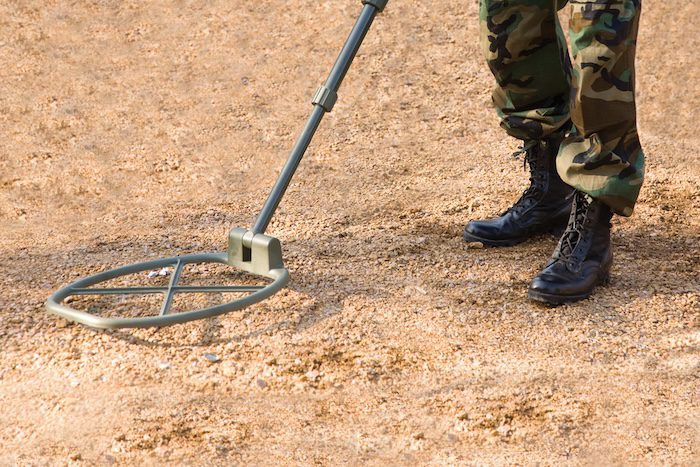

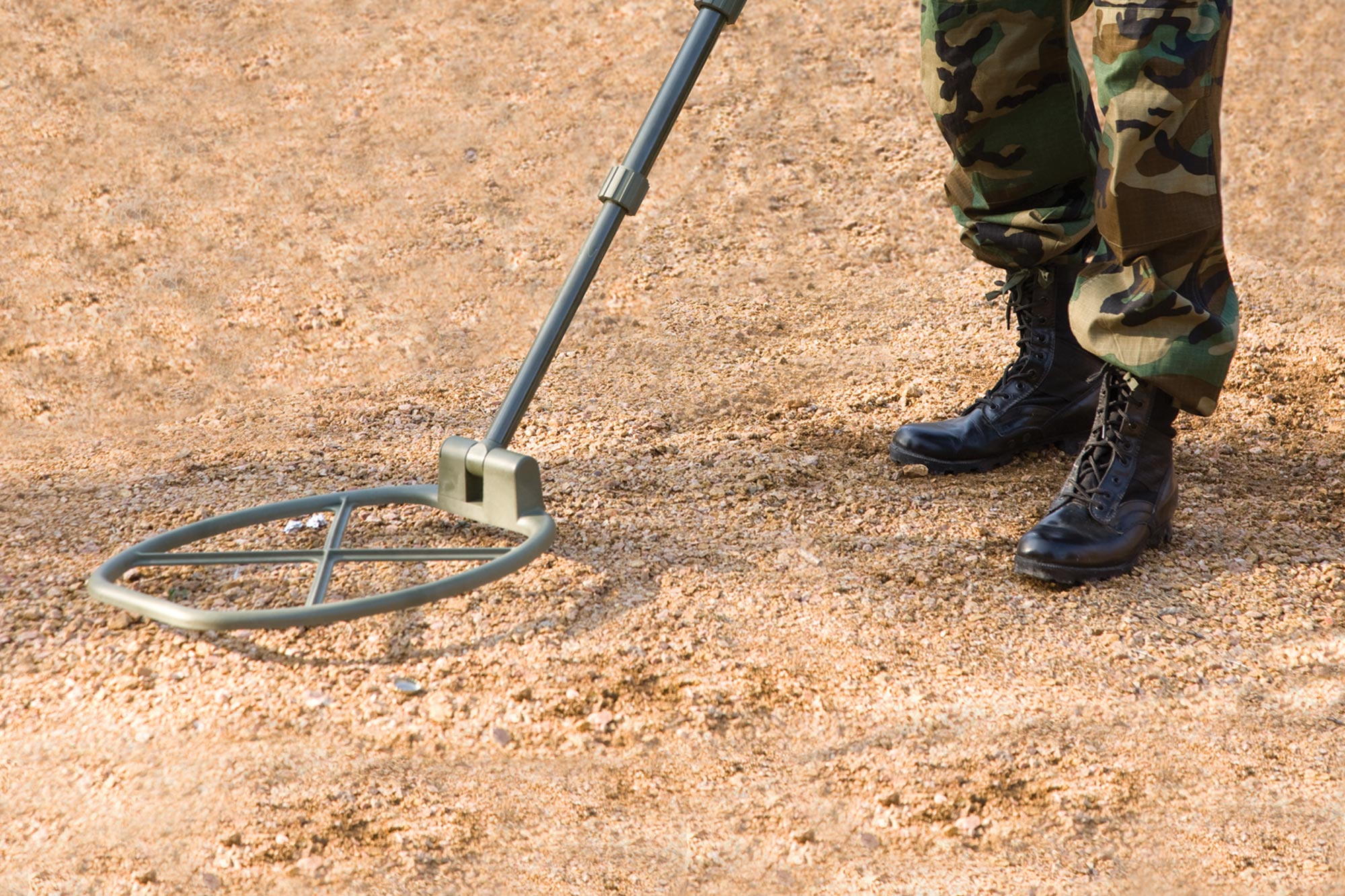

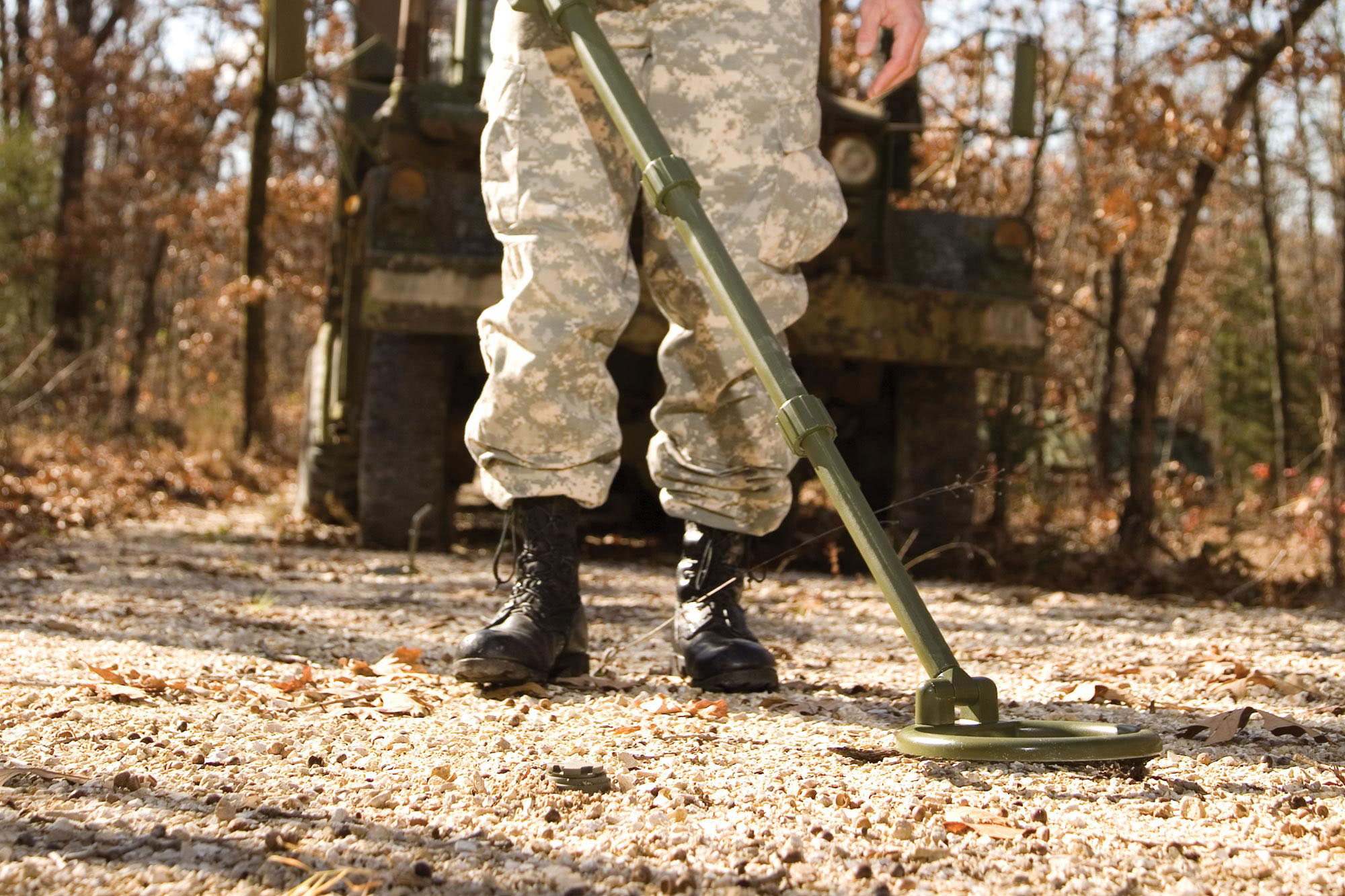

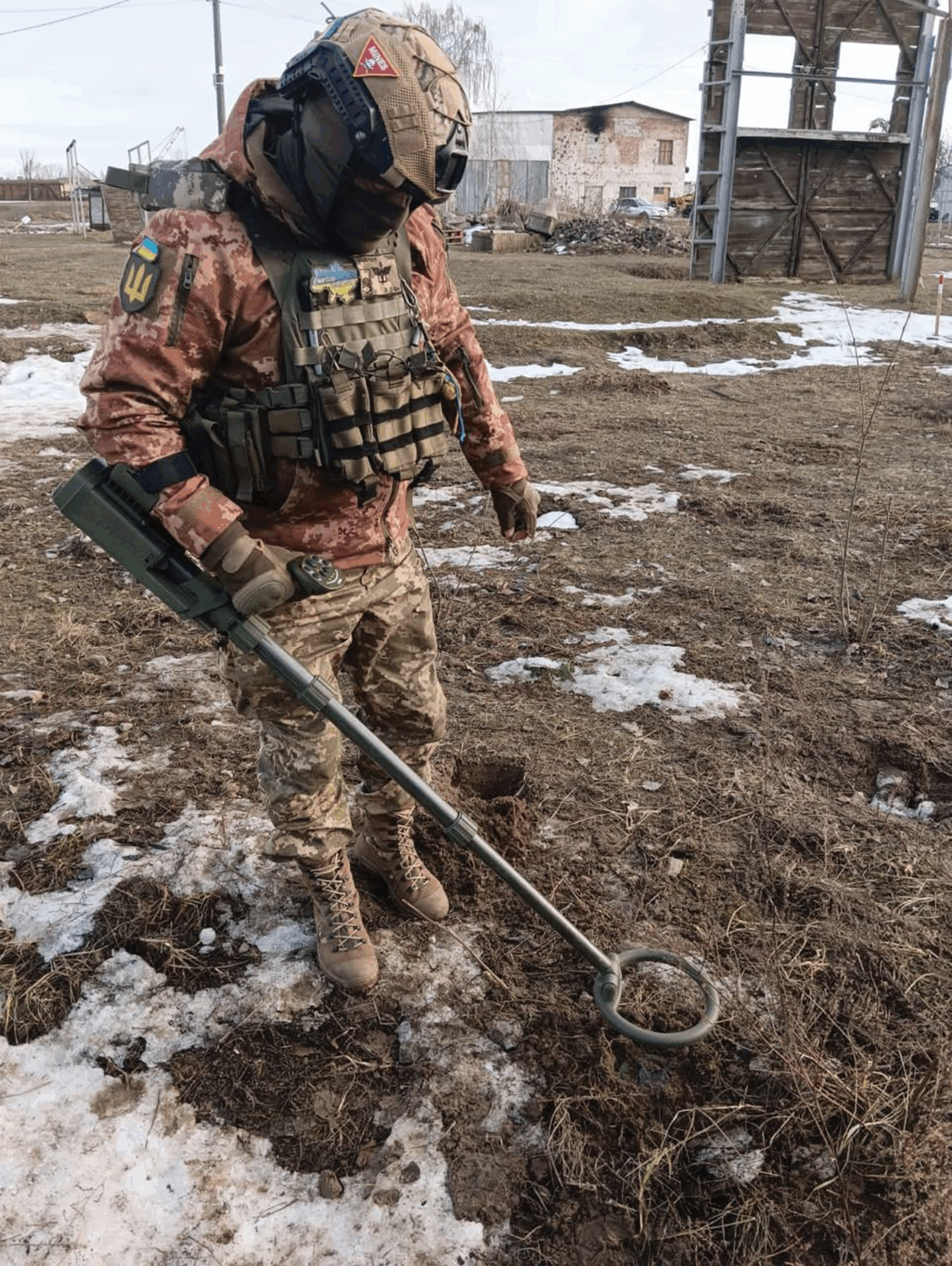

MILITARY: Rapid deployment for mines, UXO, and IED search.

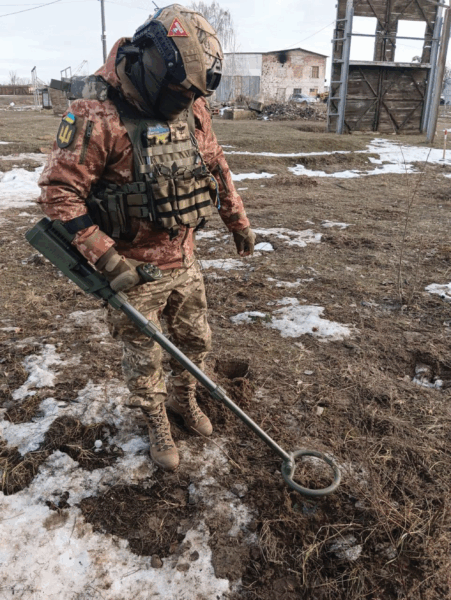

HUMANITARIAN: Highly dependable with deep detection capability.
Optimum Detection Sensitivity
- Low metal content targets to large metallic items are detected in ALL soils and shallow water with full detection capability.
- Designed for military and industrial use where user interface is more controlled.
- Includes standard 8” (20cm) search head.
- True Non-Motion Mode (static) search operation.
PRODUCT HIGHLIGHTS
Click to Explore the RECON Pro AML-1000
Find out more about key features and the technology behind the RECON PRO AML-1000 by clicking on the buttons below.

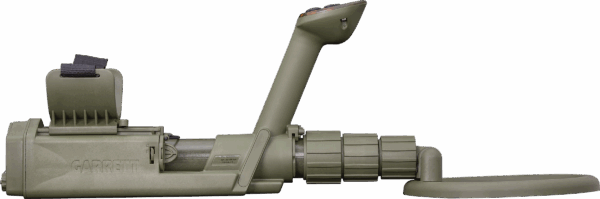

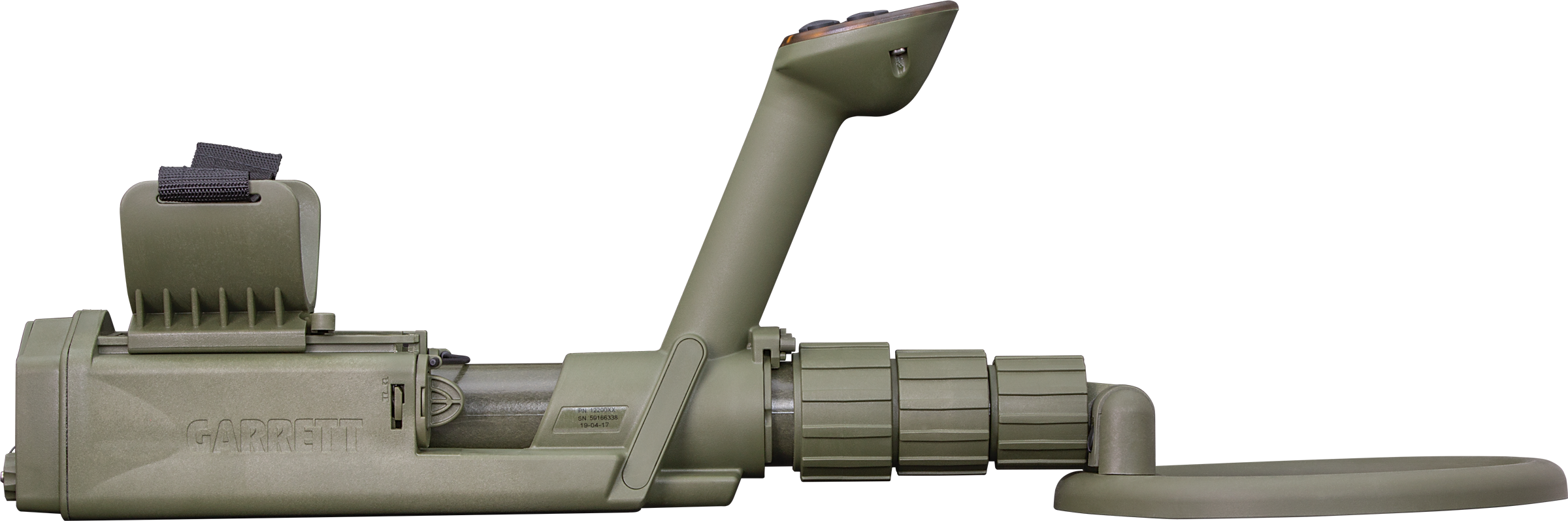

Easy Transport!

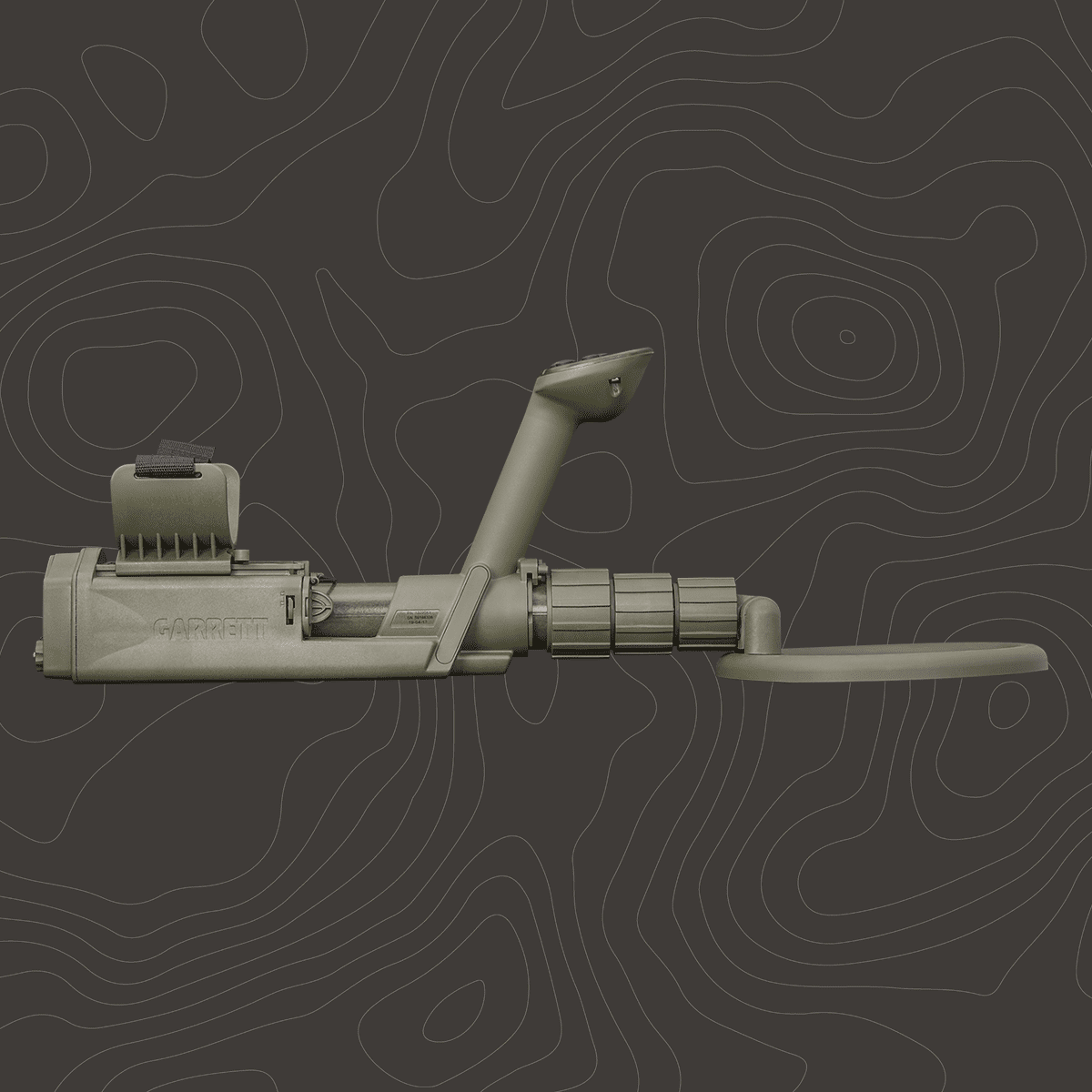

Only 19.8 inches (504 mm) when folded.
The RECON-PRO easily collapses and folds to a compact size for storage in its backpack or watertight transport case.
Compact. Rugged. Waterproof.

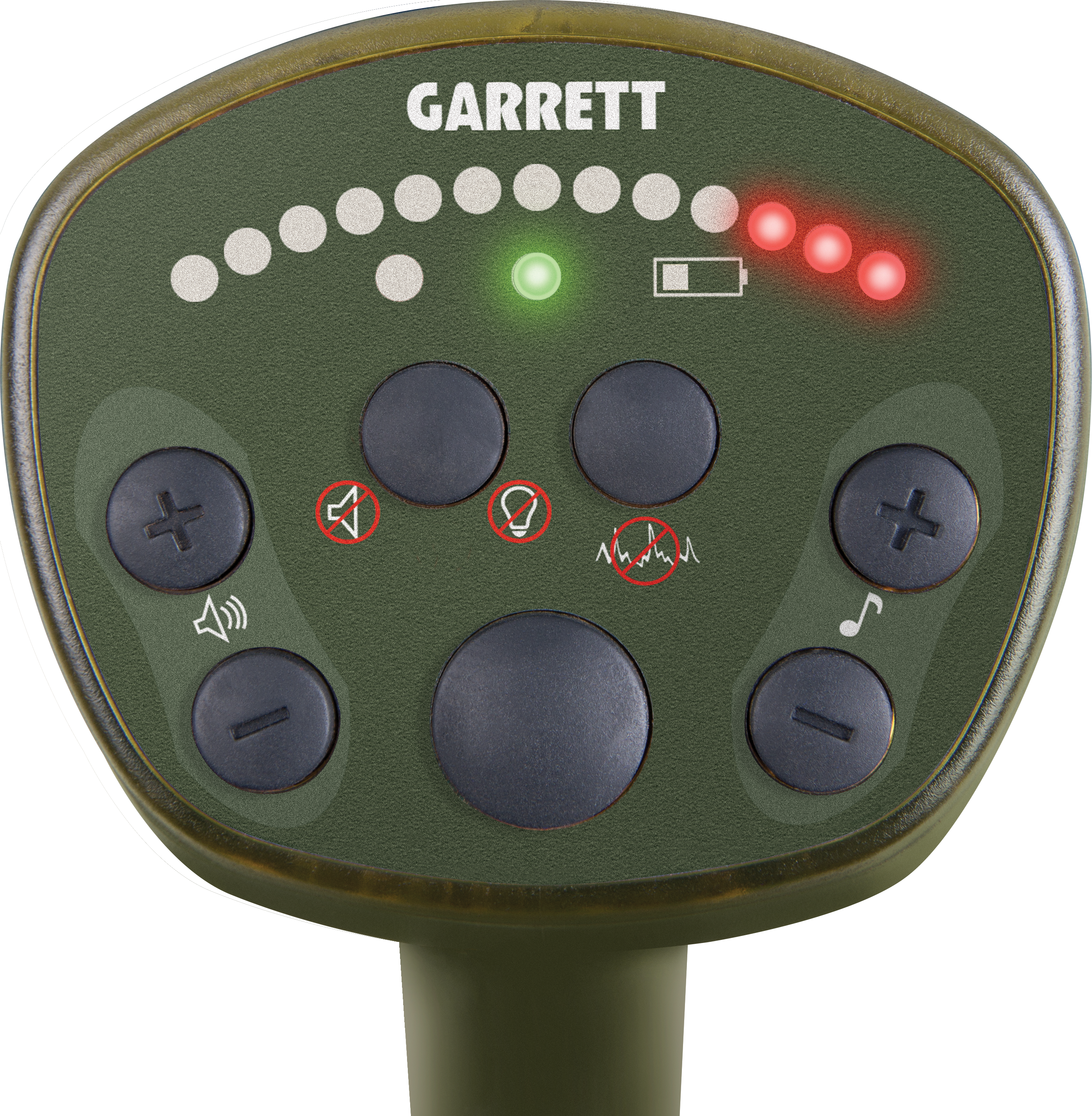

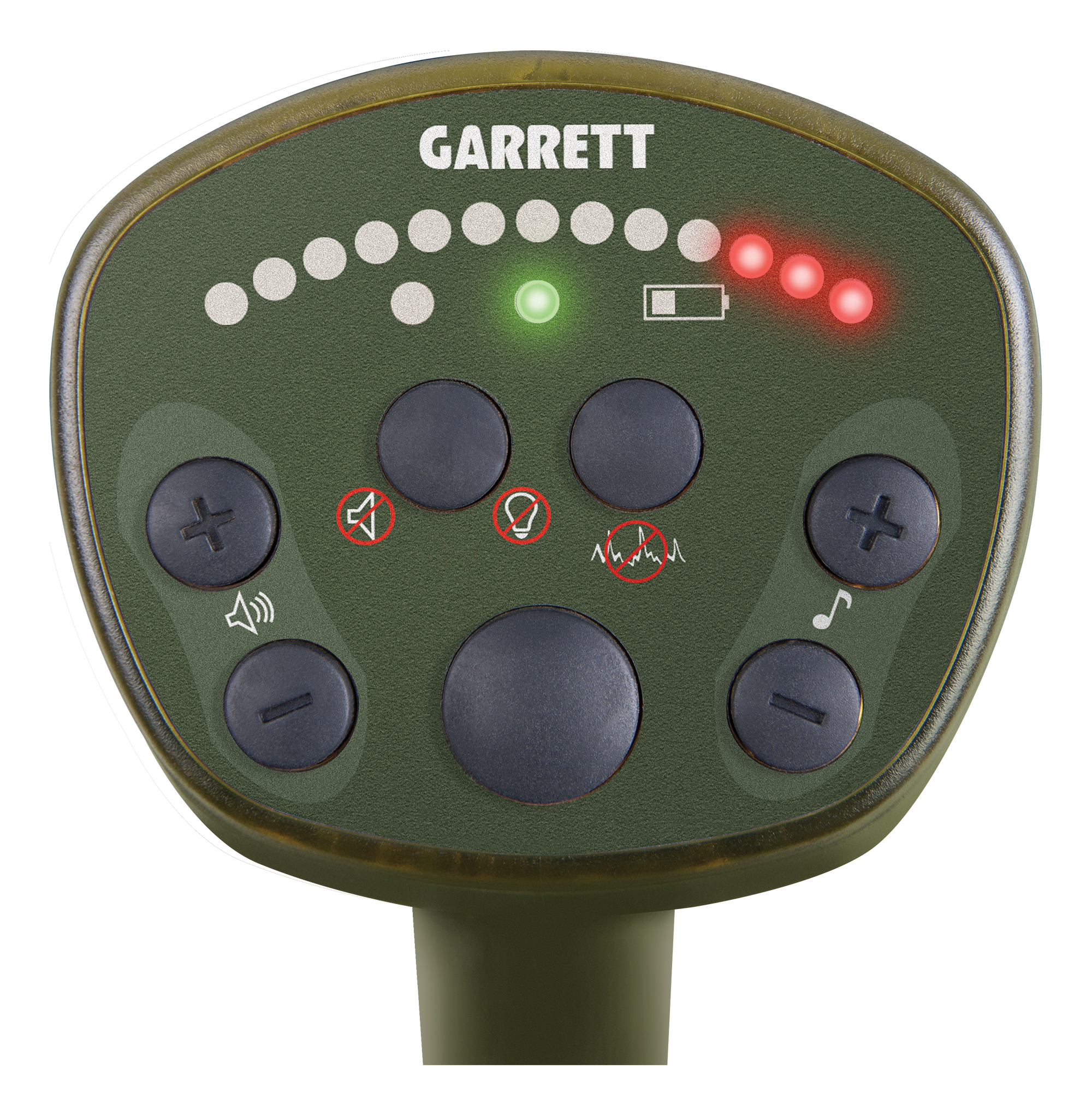

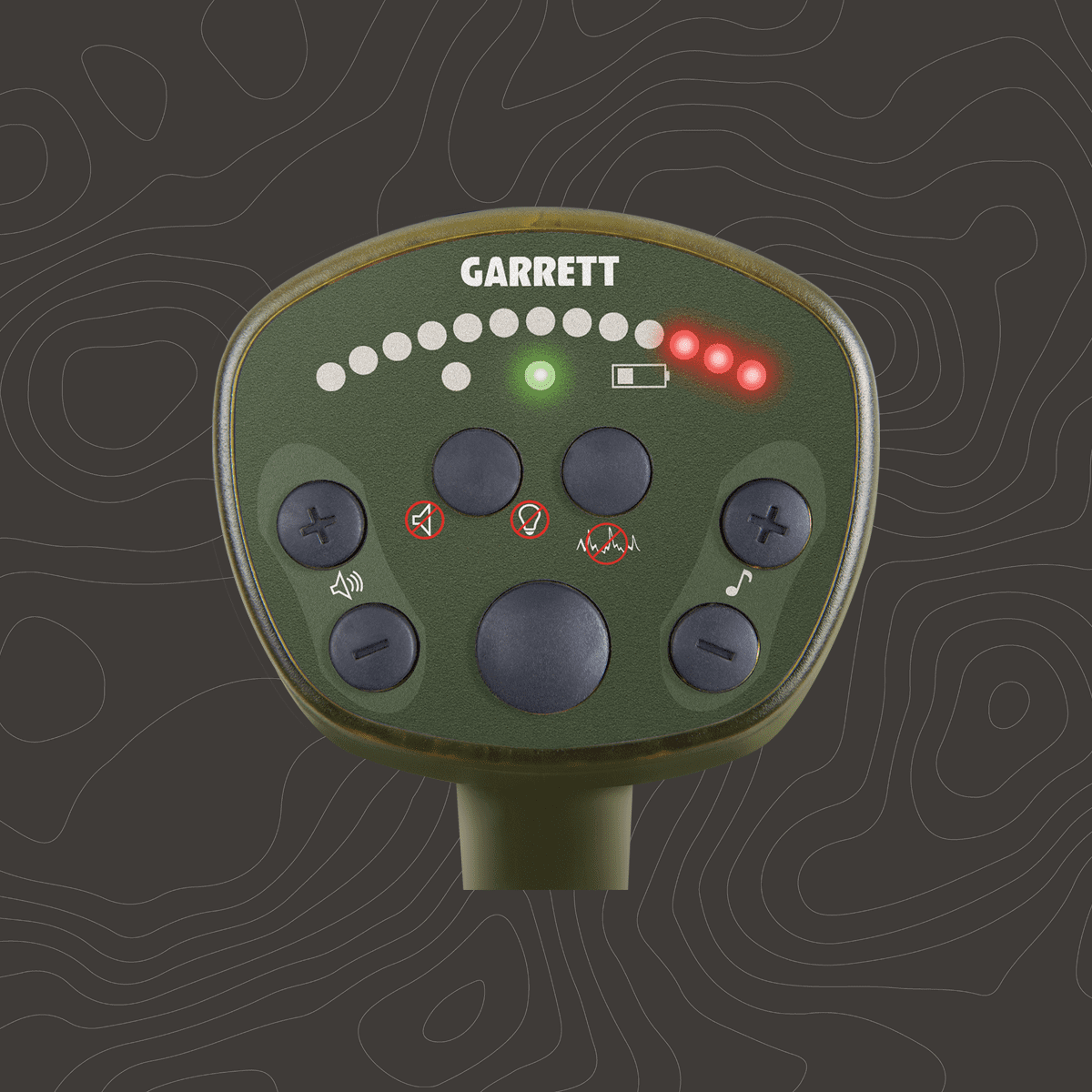

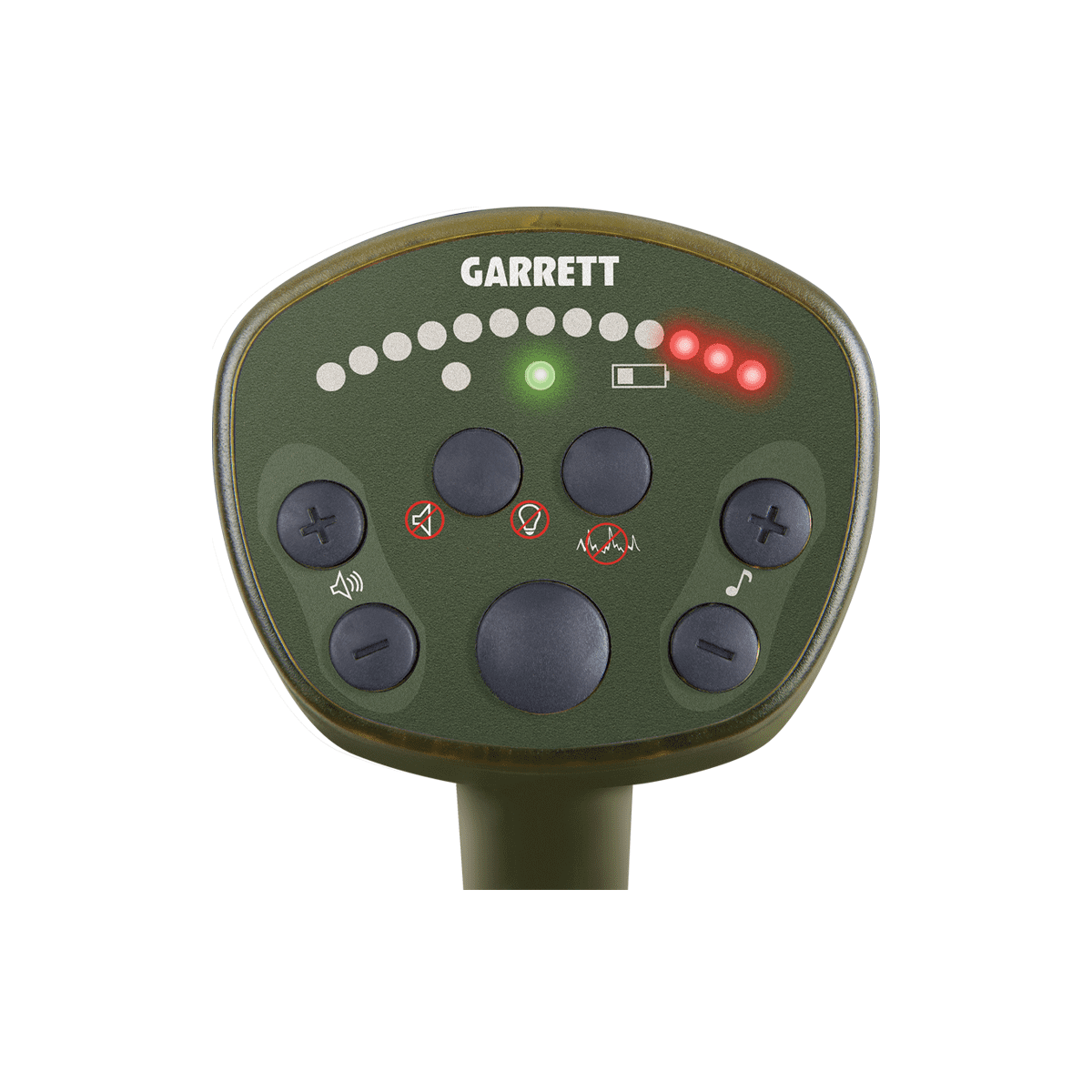

Easy Access Adjustments

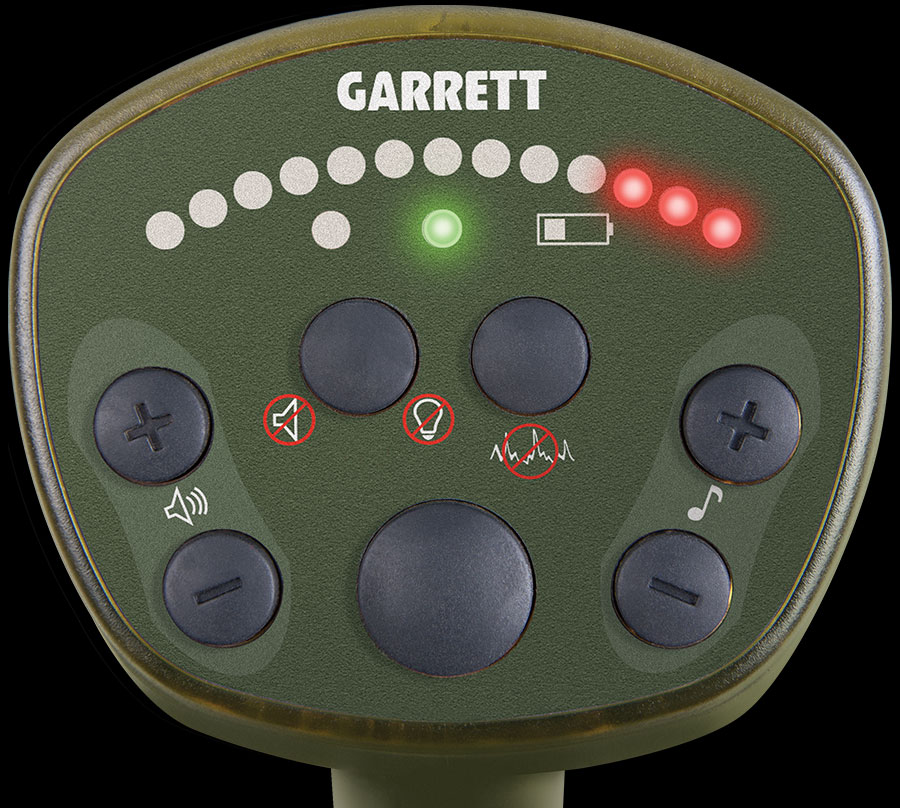

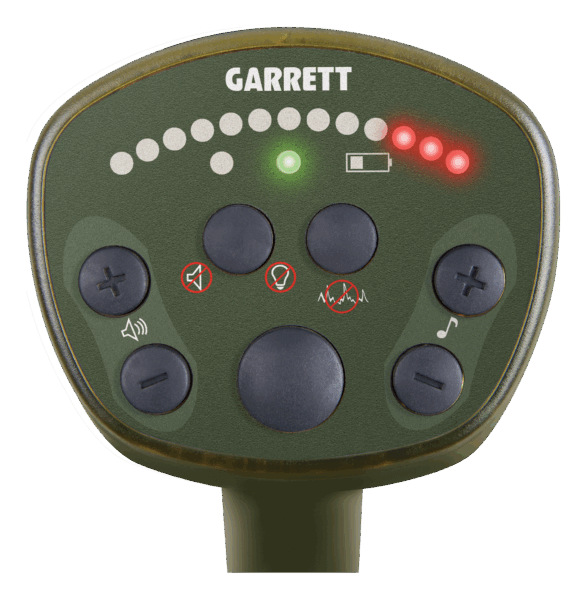

Single push-button controls for Sensitivity, Tone ID, RFI Noise Elimination, and Adjustable Audio Threshold can be adjusted with one hand.
Operators can quickly set up the Recon Pro as required and fully concentrate on detection tasks.

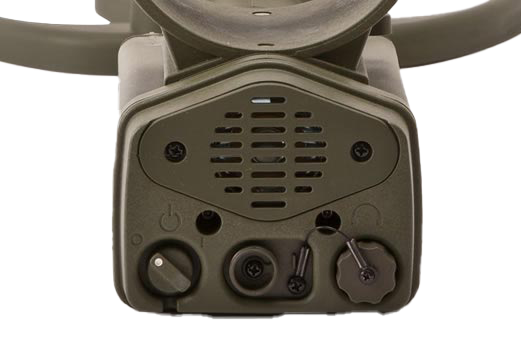

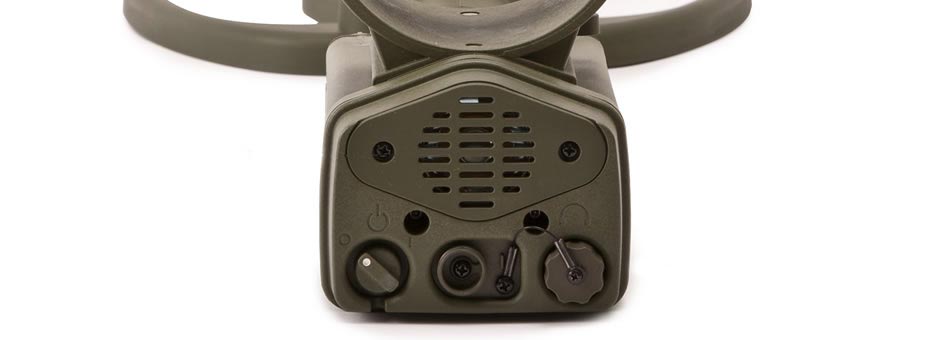

External Speaker
External speaker allows Recon Pro to be used with or without headphones for full field versatility.

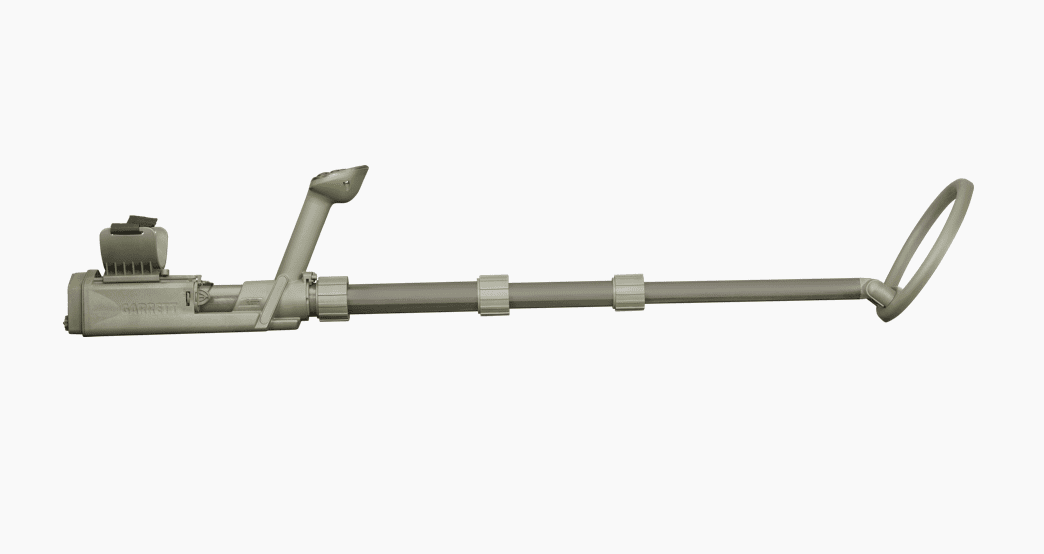

Garrett detectors, pinpointers, and searchcoils now come with a 3 Year Warranty.
Technical Specifications

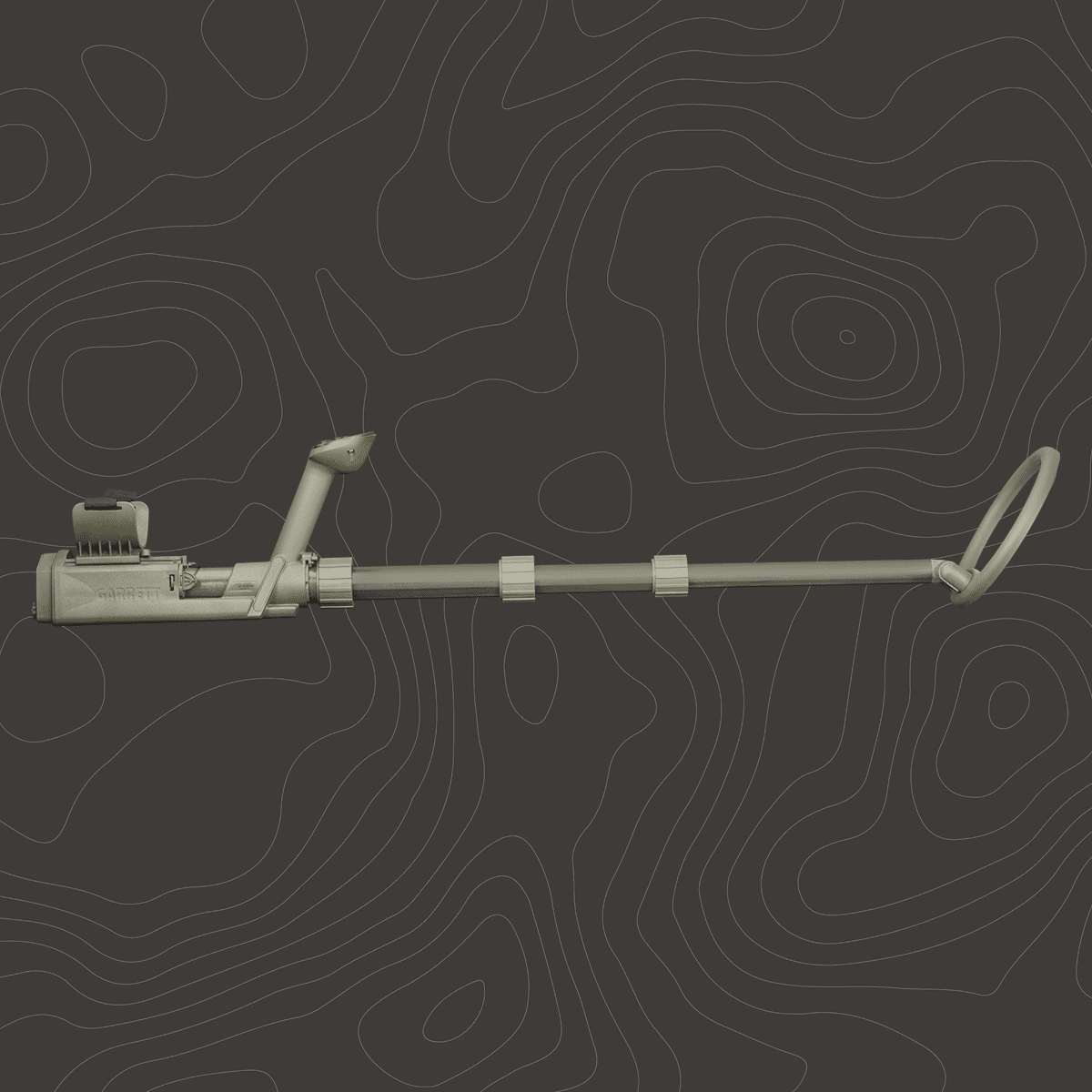

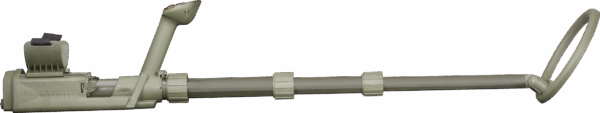

Detector Length
19.8 in./504 mm (folded)

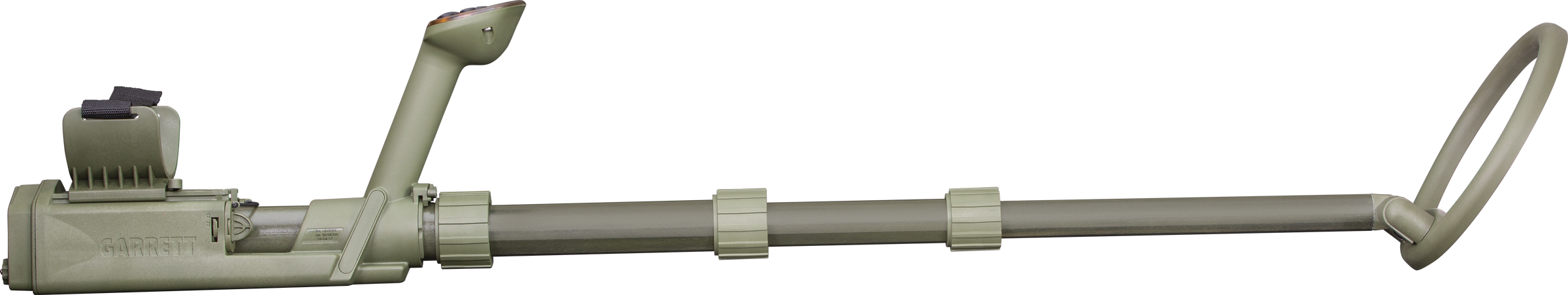

63 in./1600 mm (extended)
Weight
6.25 lbs. (2.83 kg) for detector
24.15 lbs. (10.95 kg) w/case.
Detection Technology
Advanced Pulse Induction Technology (APIT)
Water and Dust Protection
IP 67
Power
Eight (8) alkaline AA batteries included. Charger and extra set of rechargeable batteries optional. Average operation time with fresh batteries is 10-12 hours.
Design Standard
MIL STD 810 G
Warranty
36 months, Limited Parts/Labor
Operating Temperatures
Humidity to 95% non-condensing.
Alkaline, NiMH batteries: -10°F (-23°C) to 149°F (65°C).
Lithium batteries:-40°F (-40°C) to 149°F (65°C).
Storage temperature (without batteries): -72°F (-58°C) to 158°F (70°C).
Target Alerts
Adjustable audio volume/LED bar
Garrett Recon Pro Accessories
Enhance the functionality and versatility of your Recon Pro All Metals Locator with mine, military, and industrial metal detector accessories.
- Travel cases for optimal protection
- Coil covers protect from scratching and chipping
- Headphones for ergonomic use
- Rechargeable batteries for long-lasting performance

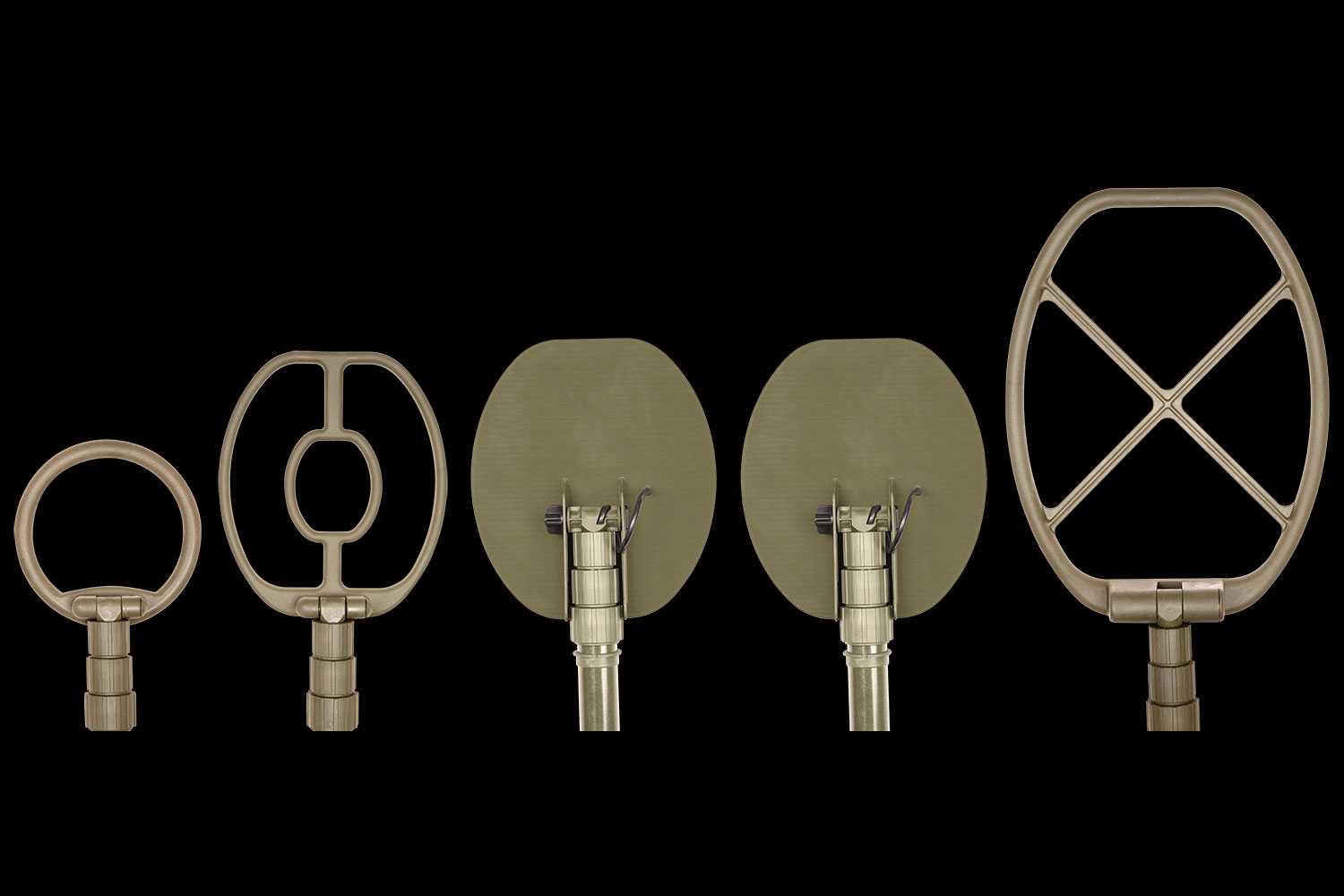

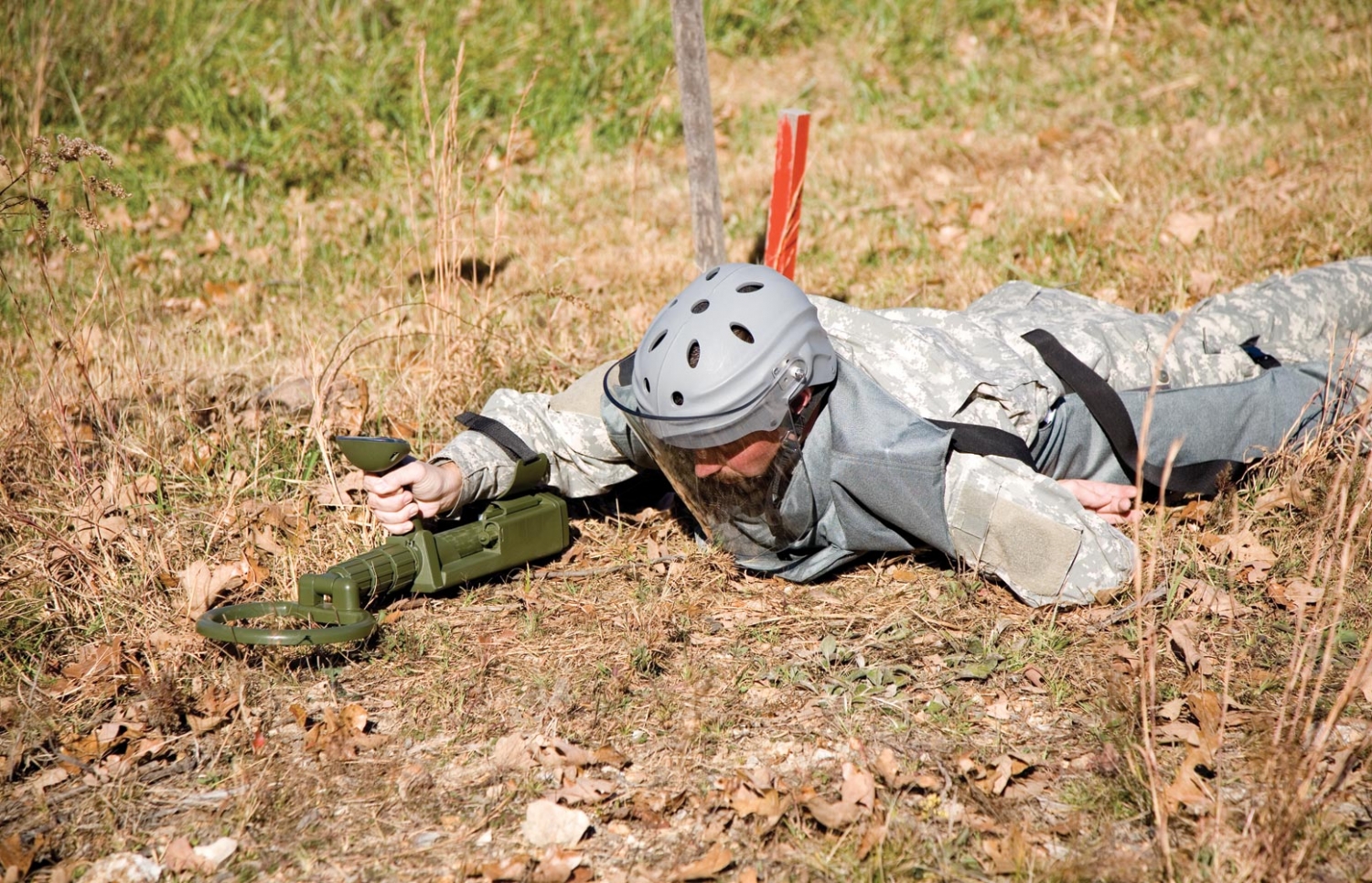

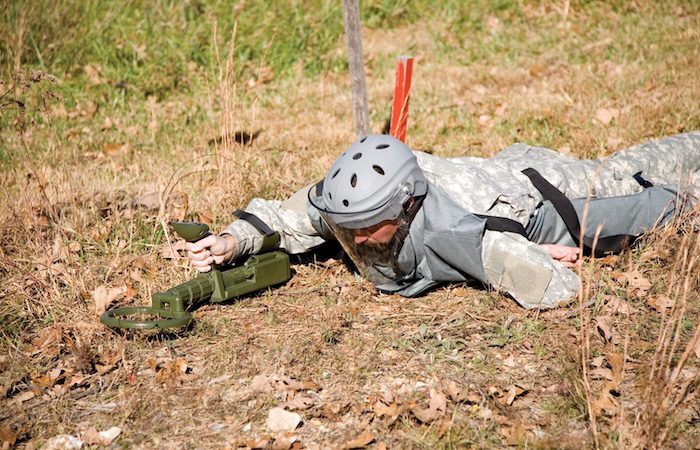

COUNTERMINE ACCESSORIES
8″ (20 CM) Mono Open Searchcoil
Concentrated search energy for sharp performance on tiny targets.
Deepseeker® 15” X 20” (38 X 50 CM) Mono Open Searchcoil
Use for locating larger and more deeply buried objects. Includes surface debris elimination.

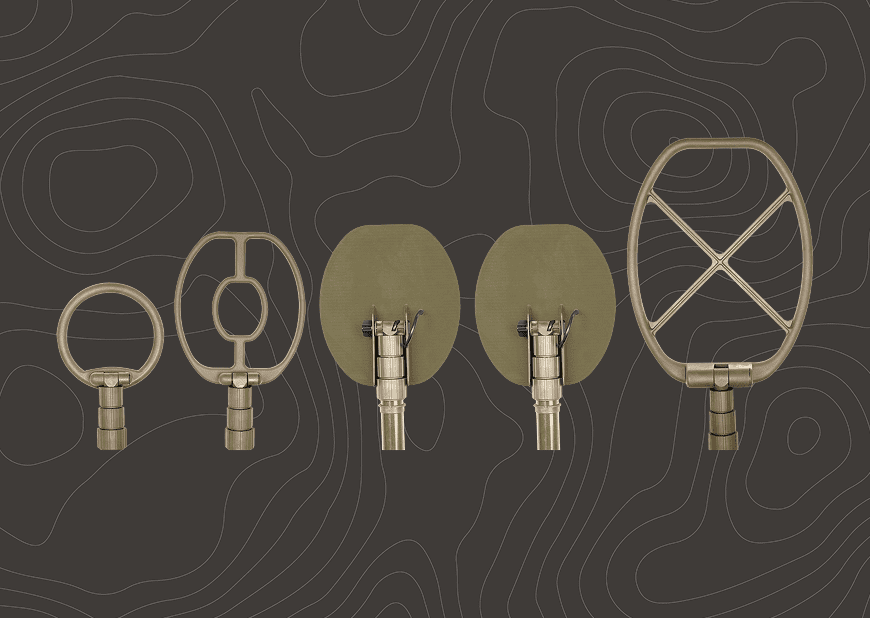

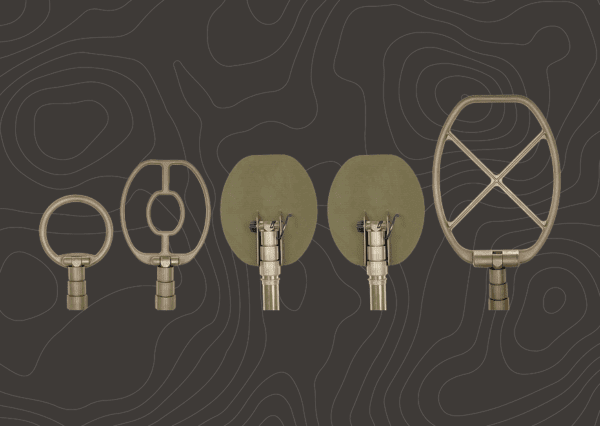

Garrett Recon Pro Search Heads
Standard and optional search heads available for Garrett Recon Pro detectors.
- Mono open/closed searchcoil
- DD open/closed searchcoil
