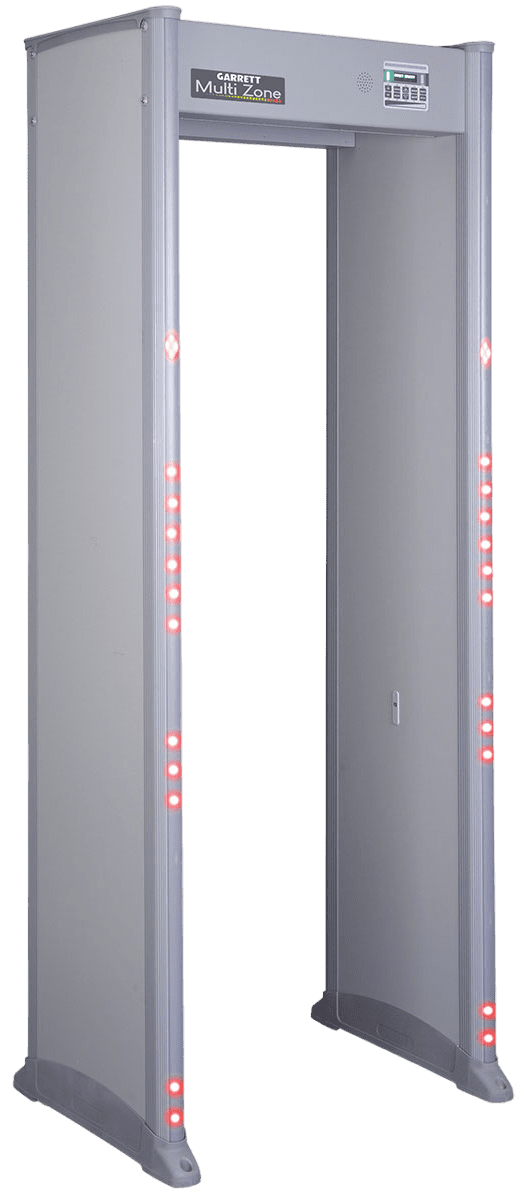

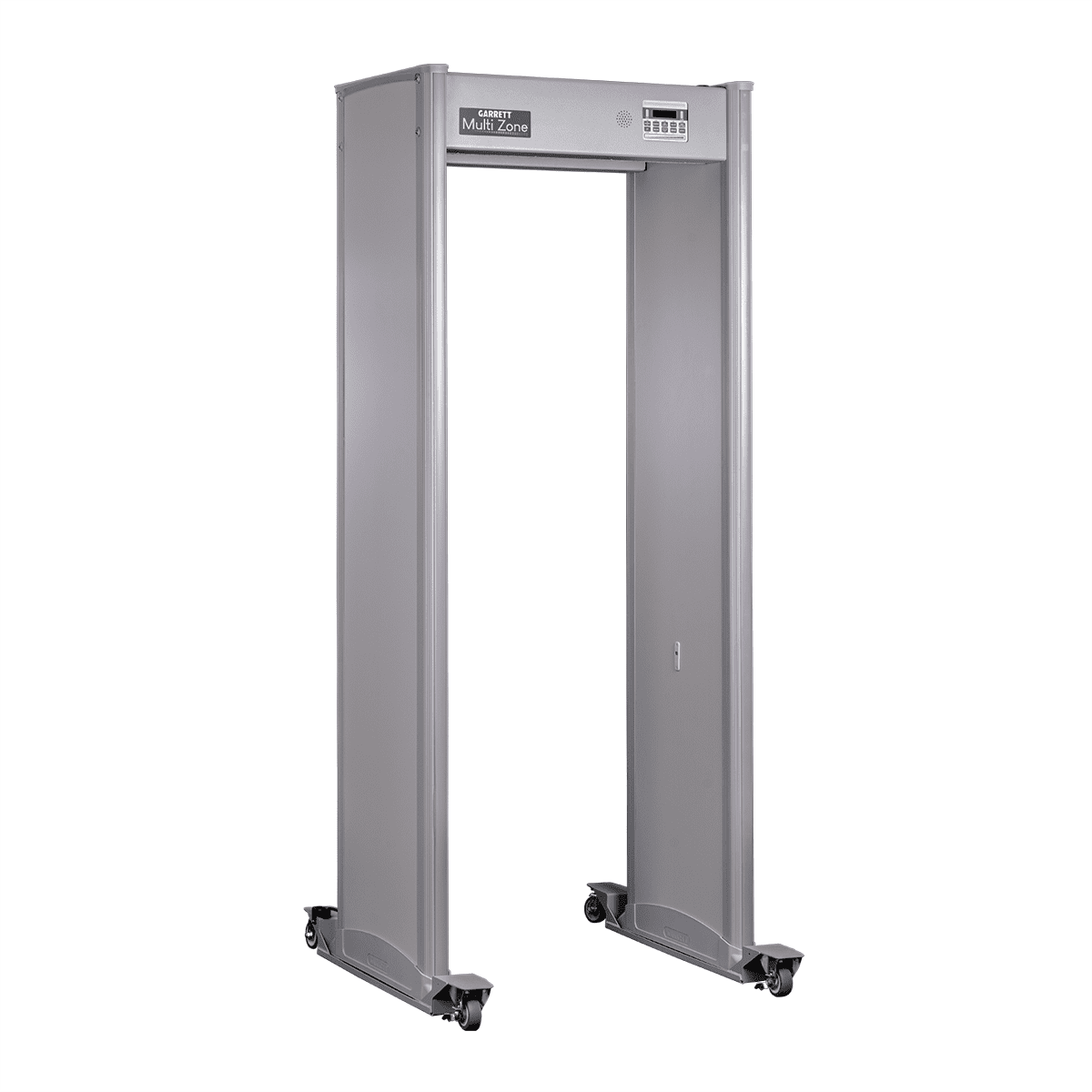

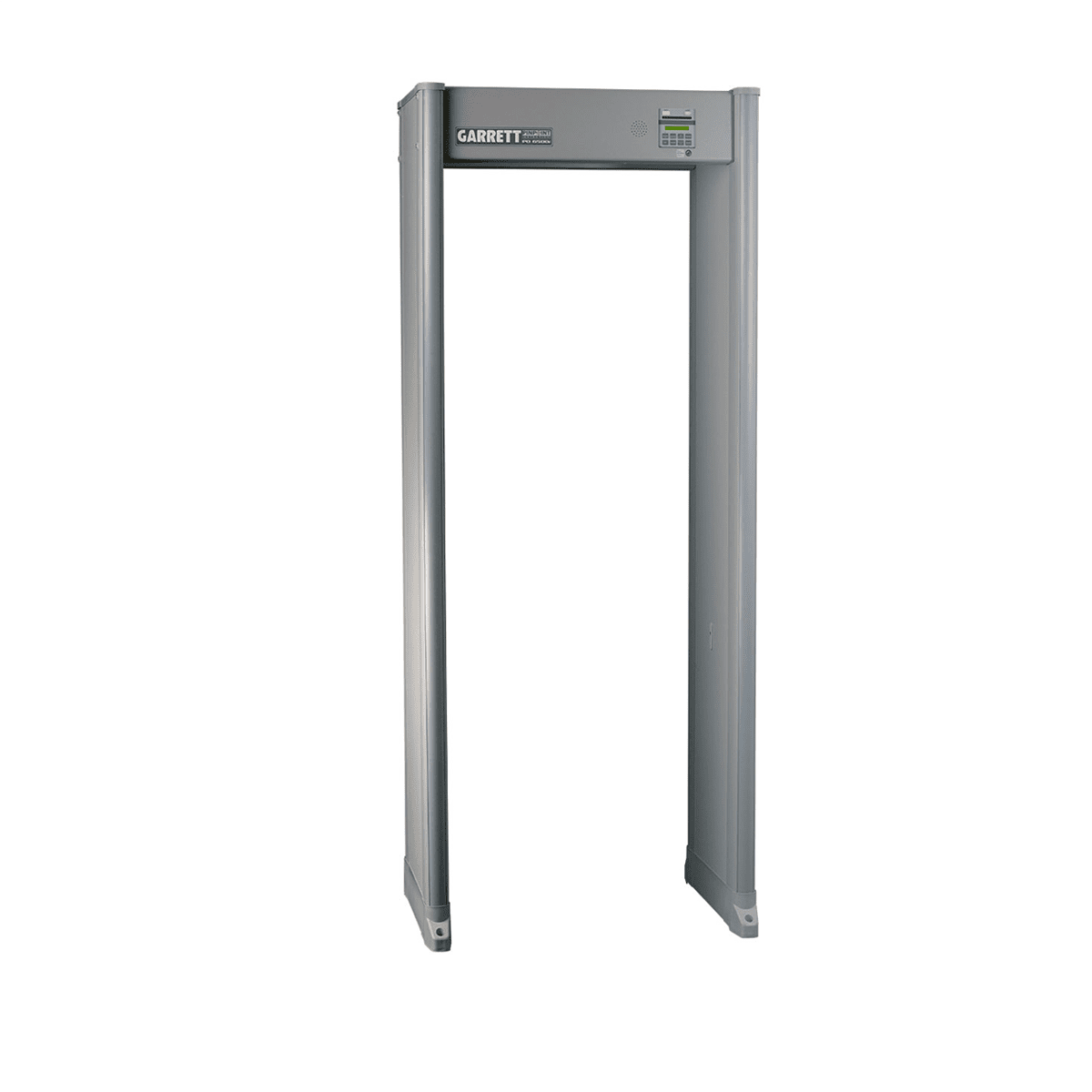

Garrett Multi Zone™ Walk-Through Metal Detector
American Quality, Global Price. 22 zones and powerful ease-of-use.
PRODUCT HIGHLIGHTS
Walk-Through Metal Detector
FAST, EASY, VERSATILE SECURITY
ACCURATE PINPOINTING.
Precise Detection: 20 zones provide exact locations of multiple objects simultaneously.
Comprehensive Coverage: Effectively locate items across left, center, and right zones, ensuring thorough security screening.
PORTABLE PROTECTION.
Rapid Deployment: Optional casters and battery module for quick setup and mobility.
No Wires: Easily move and deploy at various locations.
OPTIMUM PERFORMANCE.
Versatile Programs: Over 15 applications for diverse settings including schools, airports, and events.
Field Programmable: Environmentally protected for reliable performance.

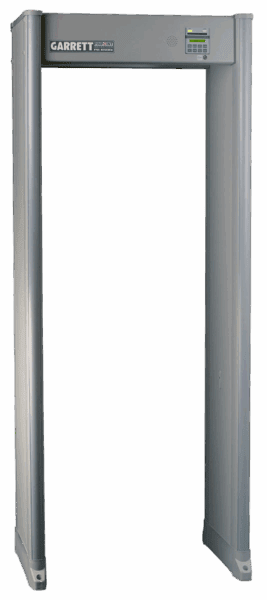

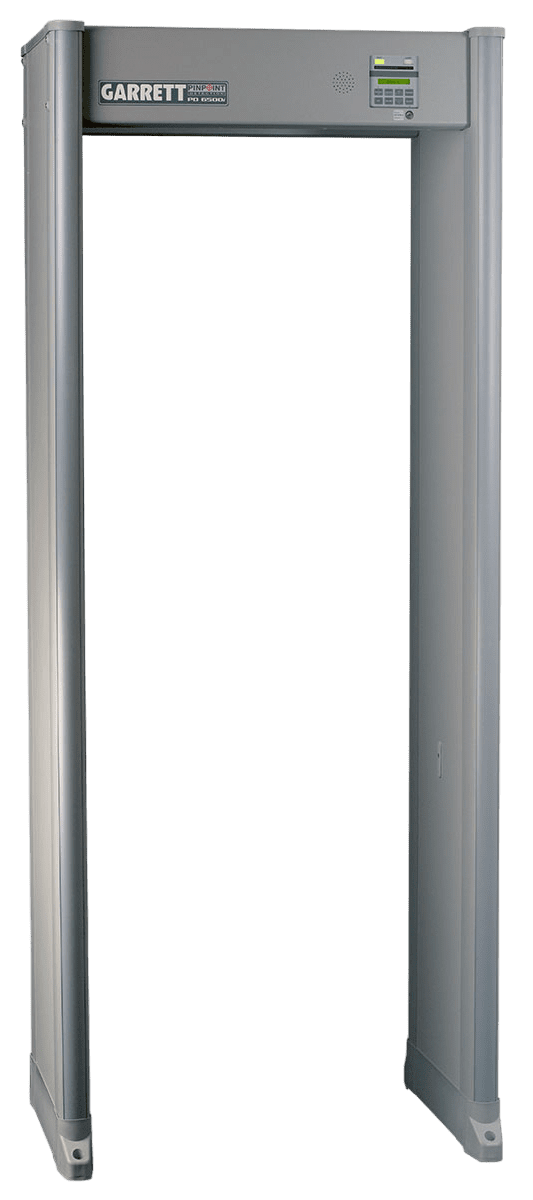

HOW IT COMPARES WITH PD 6500I.
Detection Zones: Multi Zone has 20 zones, while PD 6500i offers 33 zones.
Synchronization: Both models synchronize with wired and wireless operations, but Multi Zone includes an auto frequency scan.
PREVIEW VIDEO OF MULTI ZONE™

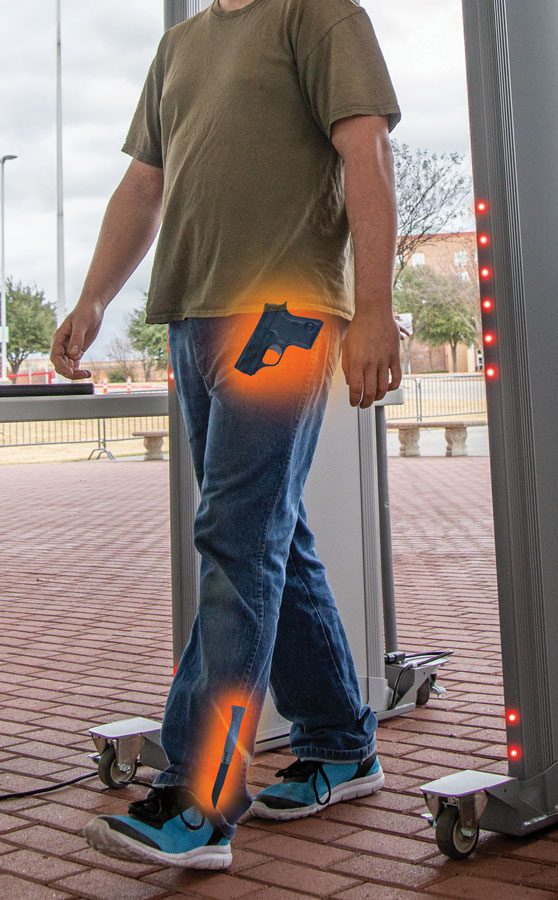

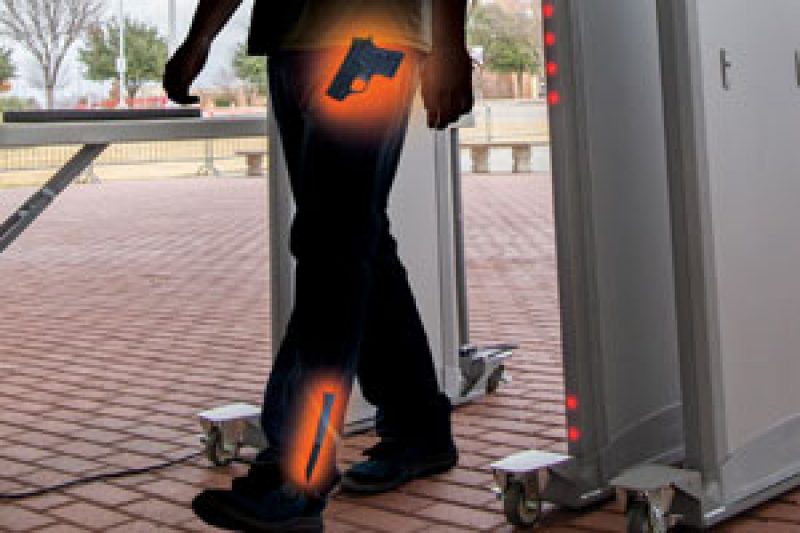

ACCURATE PINPOINTING
The Multi Zone’s twenty zones provide precise location of one or more objects simultaneously. Multiple targets are indicated on both walkthrough panels simultaneously via bright LED zone indicators.
20 ZONES

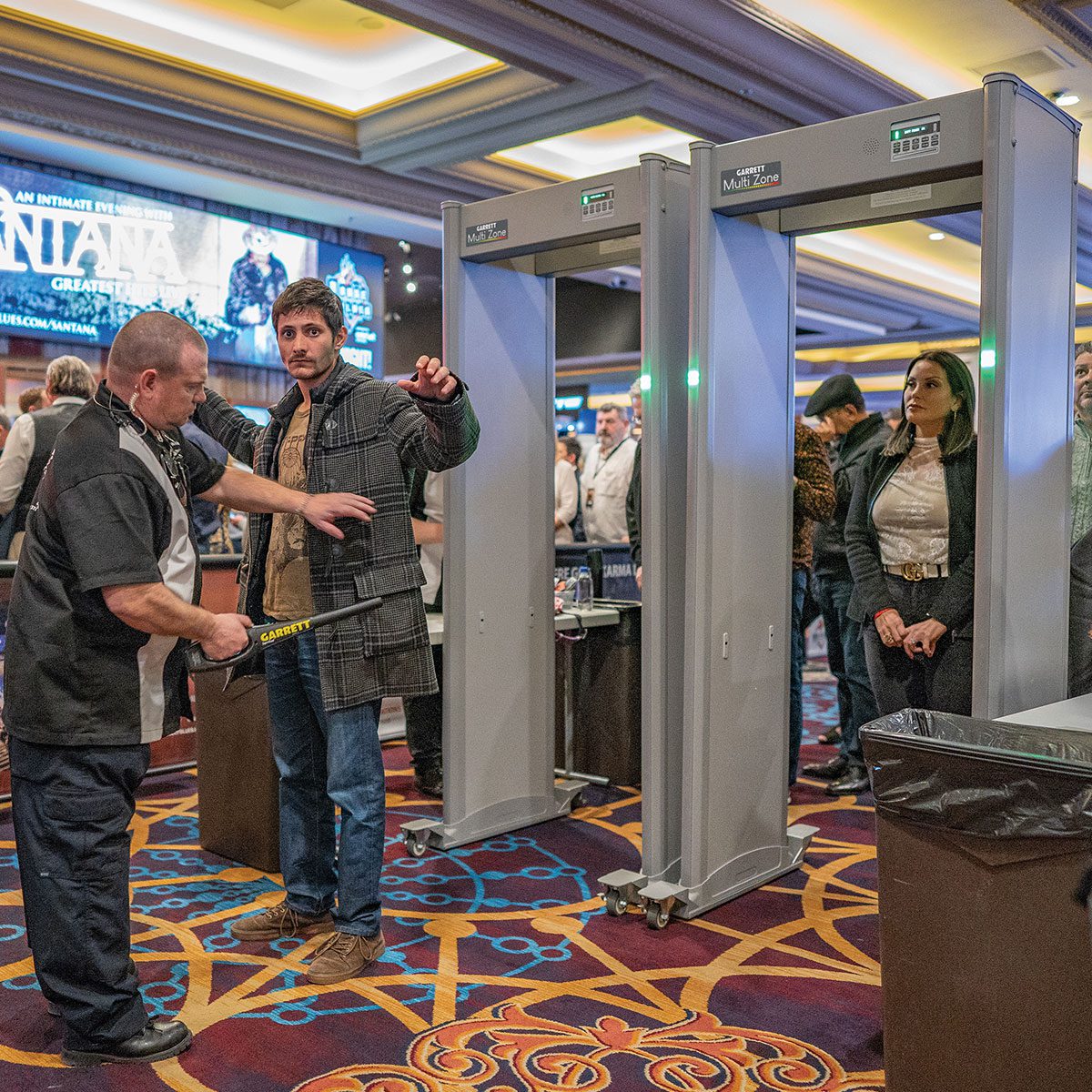

PORTABLE DETECTION
Fast, easy, versatile security.
Equipped with optional casters and battery module, the Multi Zone. can be rapidly deployed at special events, schools, and other large venues.
No wires to deal with. Easy to move to another location with a moment’s notice.

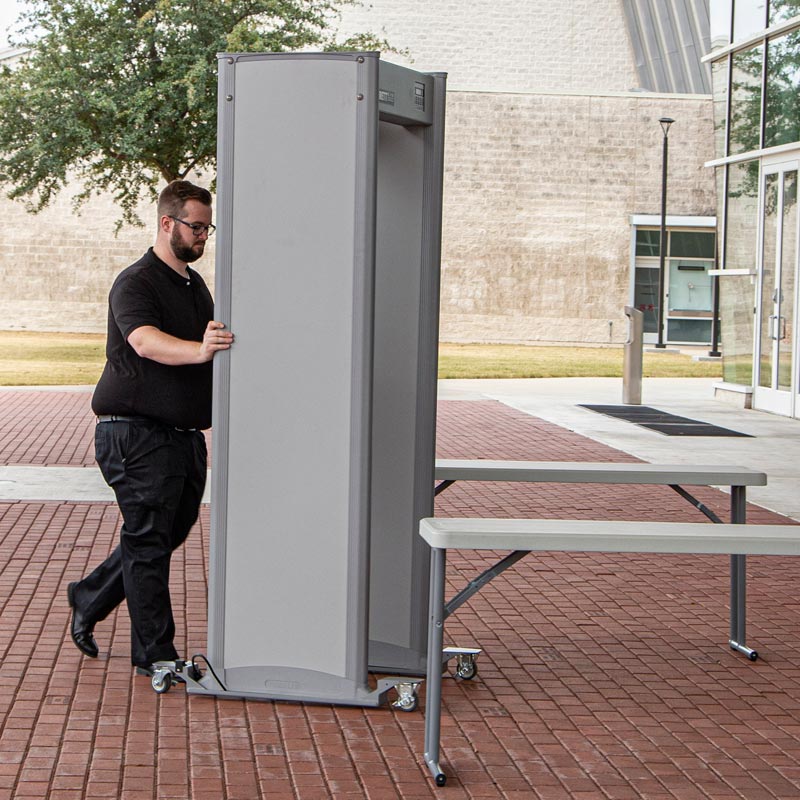

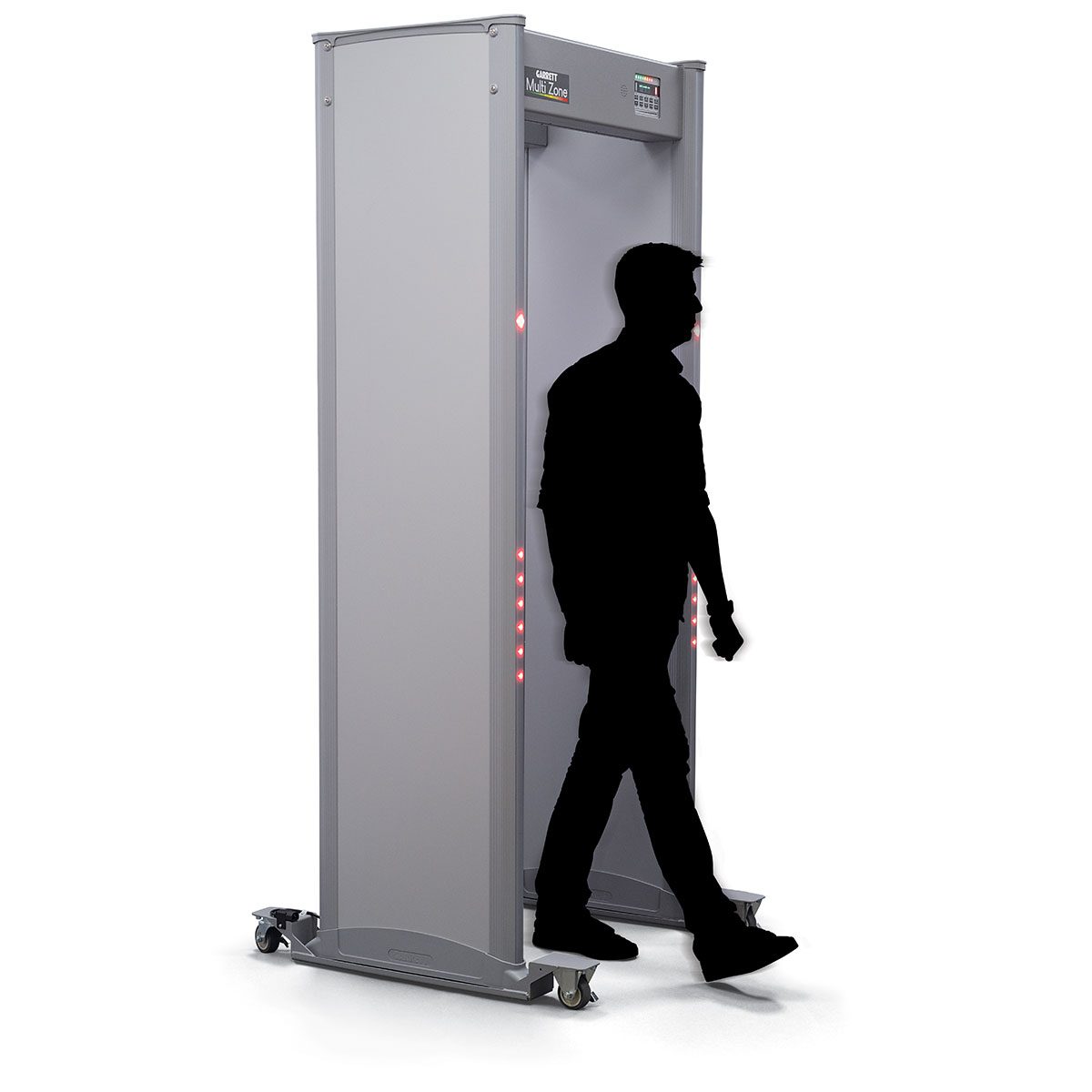

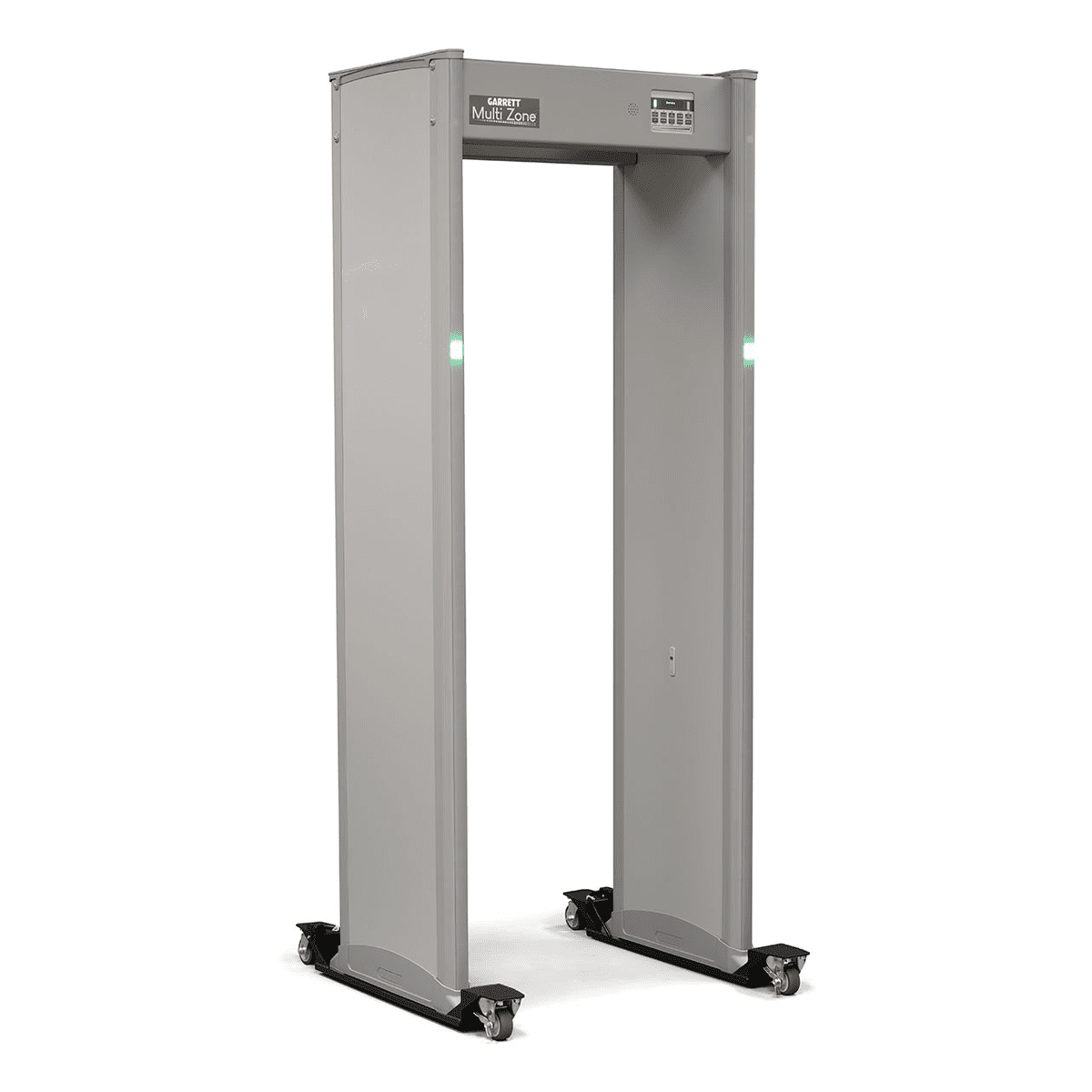

Pictured: Multi Zone shown with optional casters and battery module
MULTI ZONE™ ADDITIONAL FEATURES

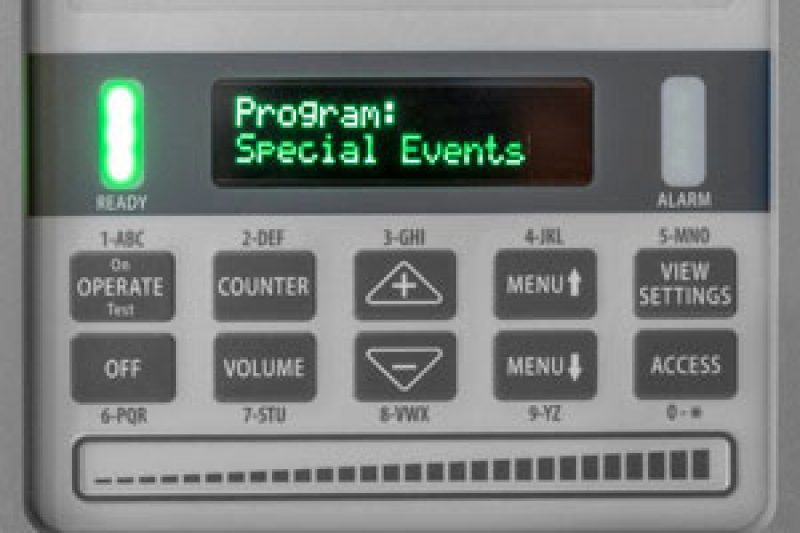

Optimum Performance
More than 15 application programs engineered to address the needs of schools, airports, prisons, courthouses, special events, and other applications.
20 Zone Precision
The Multi Zone’s twenty zones provide precise location of one or more objects simultaneously.

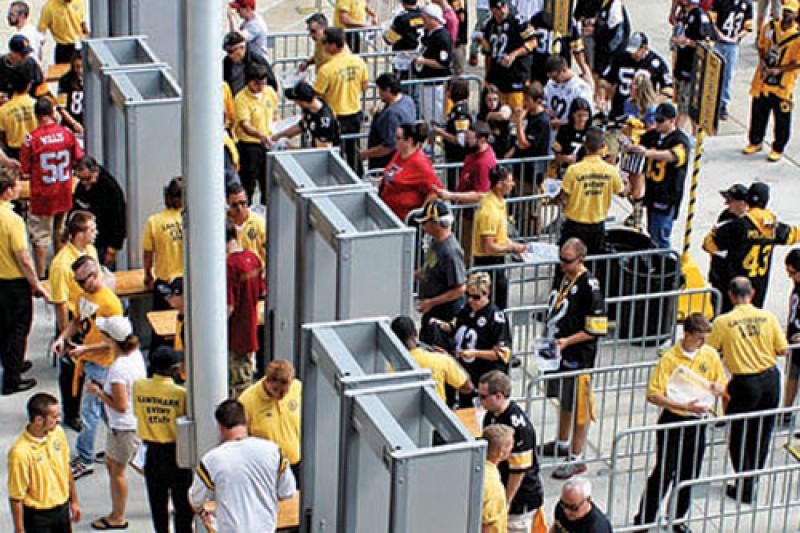

Directional Counter:
Offers four settings for counting (forward, reverse, subtract in reverse, and bi-directional).

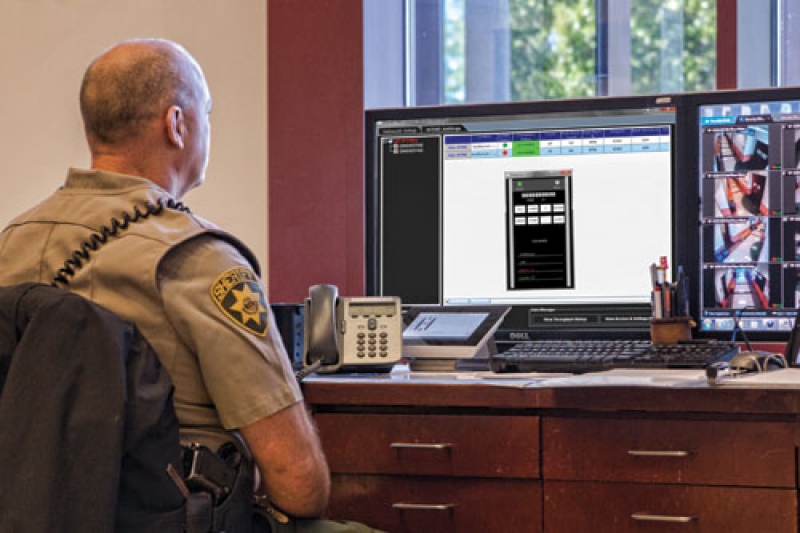

Networking Ability
Manage walkthroughs individually or as groups and perform statistical analysis via network with iC Module.
Auto-Scan Function
The Multi Zone scans electromagnetic environment and selects optimal frequency for noise cancellation.
Superior Versatility
Field programmable to allow system upgrades. Environmentally protected against wind, rain and dust.
Enhanced Access Control
Tamper-free detector controls via a 5-digit alpha/numeric system that has 60 million code combos. Additional security measures include a programmable keypad restriction and switch secured in the lockable cabinet.

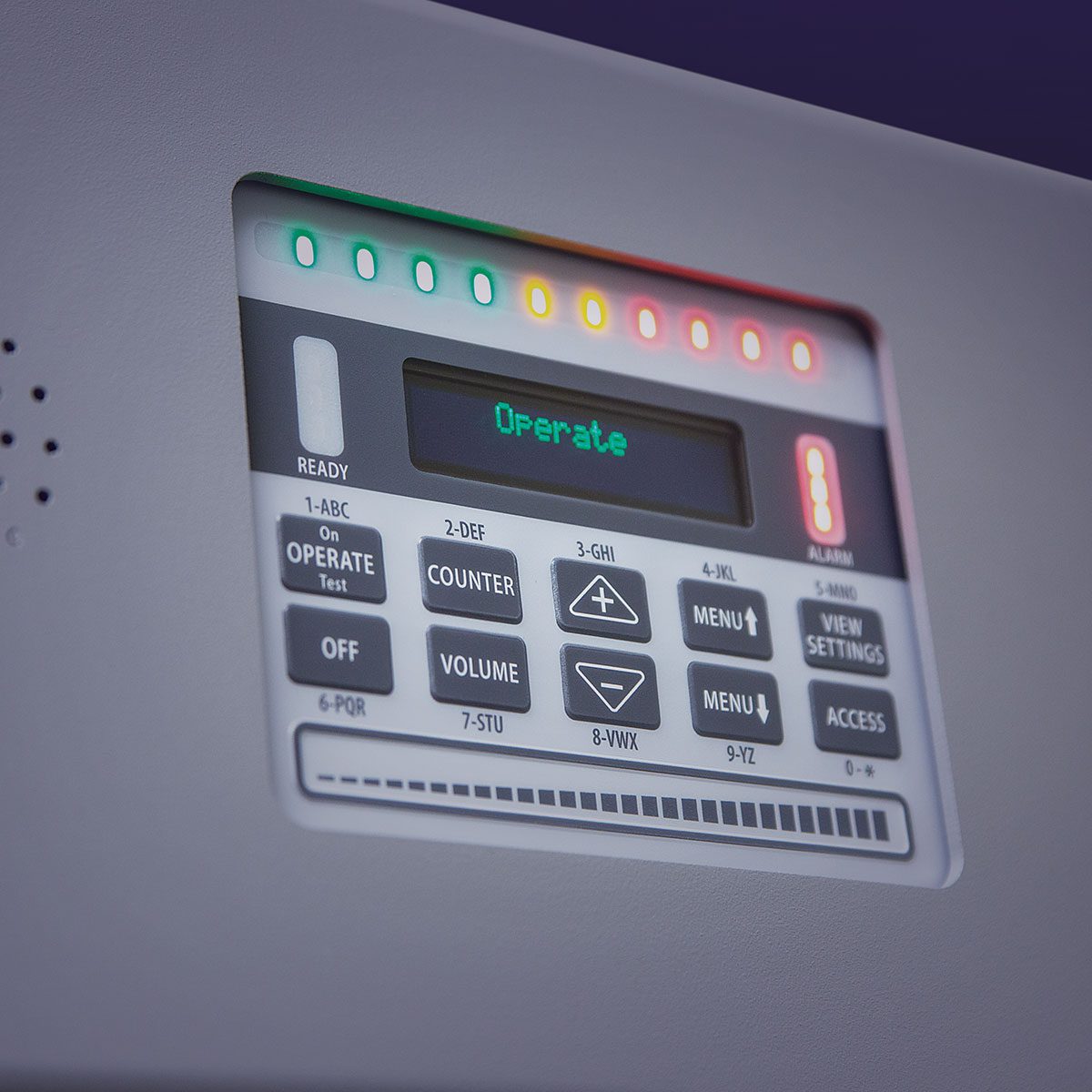

Intuitive Menu Design
32-character menu prompts are easy to understand (i.e. no confusing codes or acronyms to memorize).

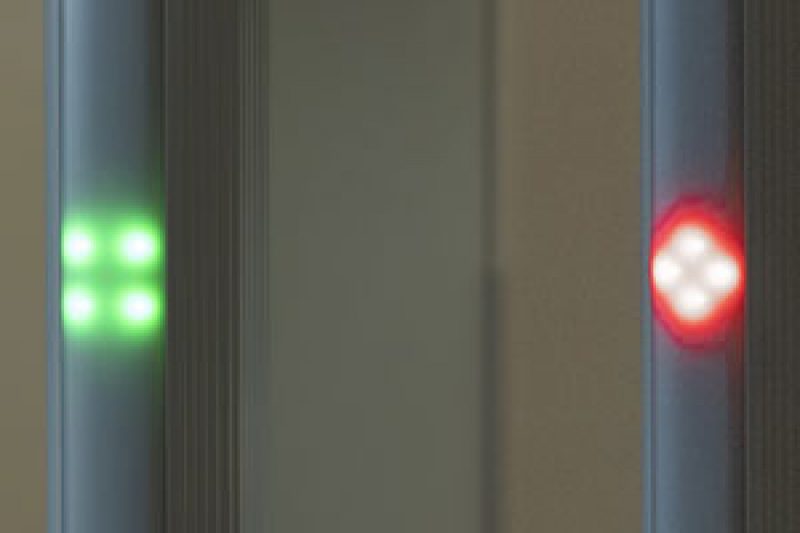

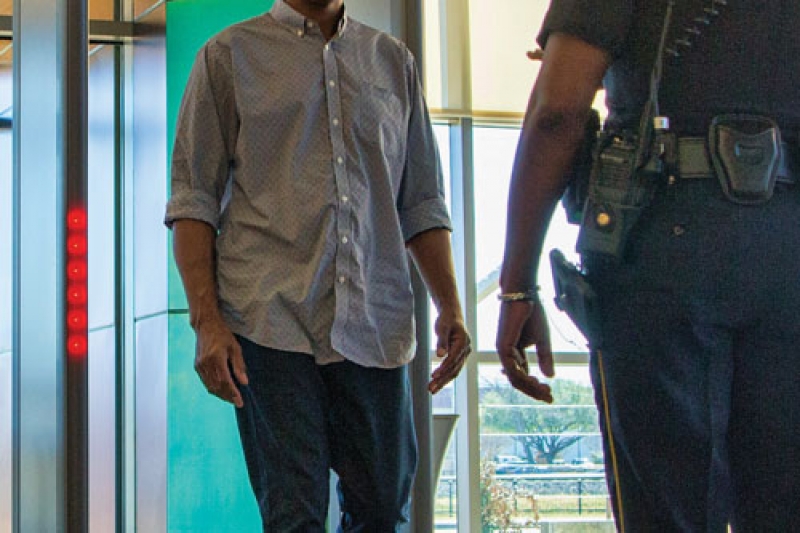

Bright LED Indicators
Eye-level green and red status lights, and zone indicators are highly visible, even in direct sunlight.

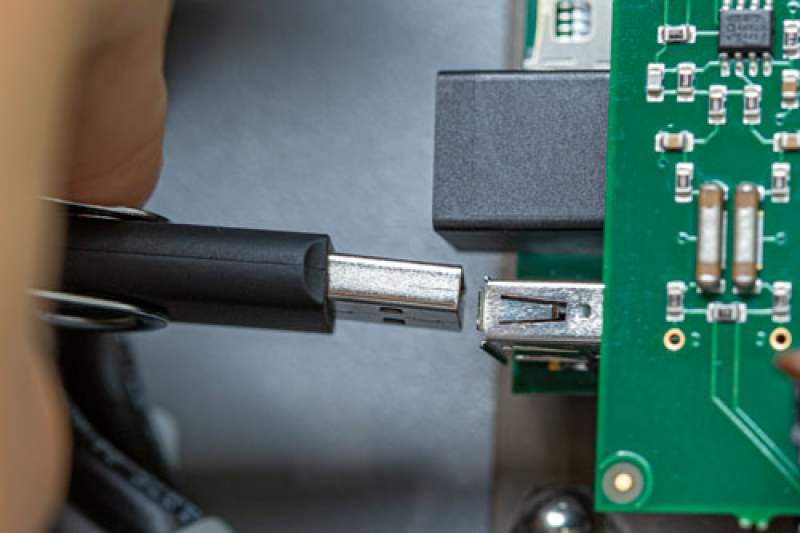

Internal SD Media Port
For updating software.

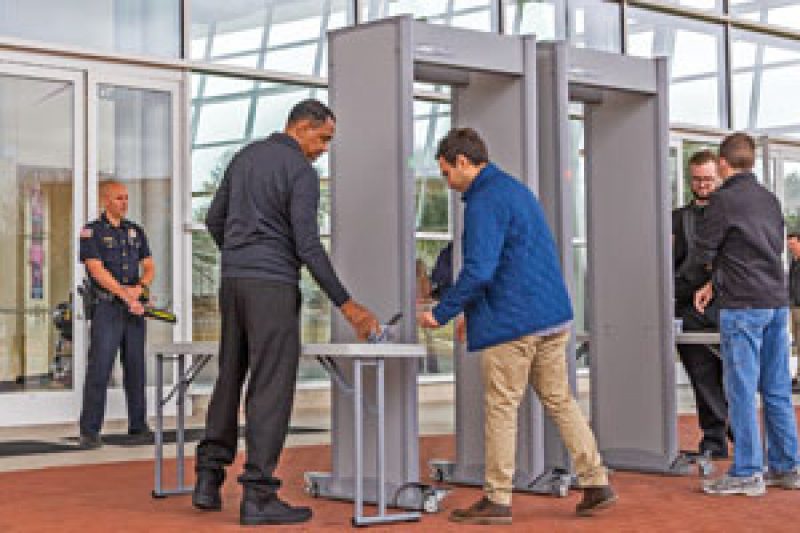

Advanced Synchronization
Advanced circuitry allows multiple detectors to be installed as close as 2 inches from each other.
Unique Slidebar
Use to quickly adjust the value of a setting.
Garrett detectors, pinpointers, and searchcoils now come with a 3 Year Warranty.
Walk-Through Accessories

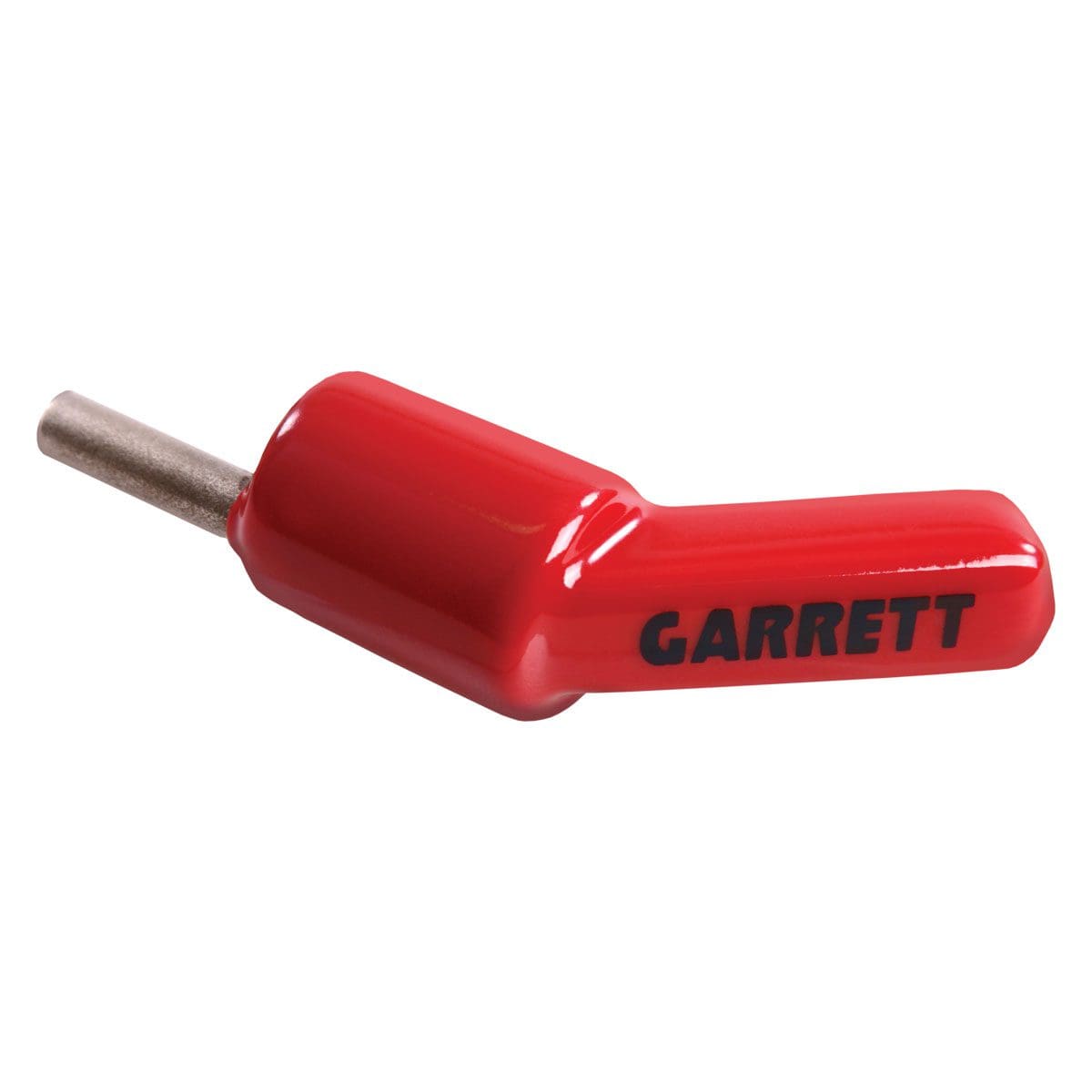

Garrett Operational Test Piece (OTP)
Designed to FAA 3-gun test requirements.

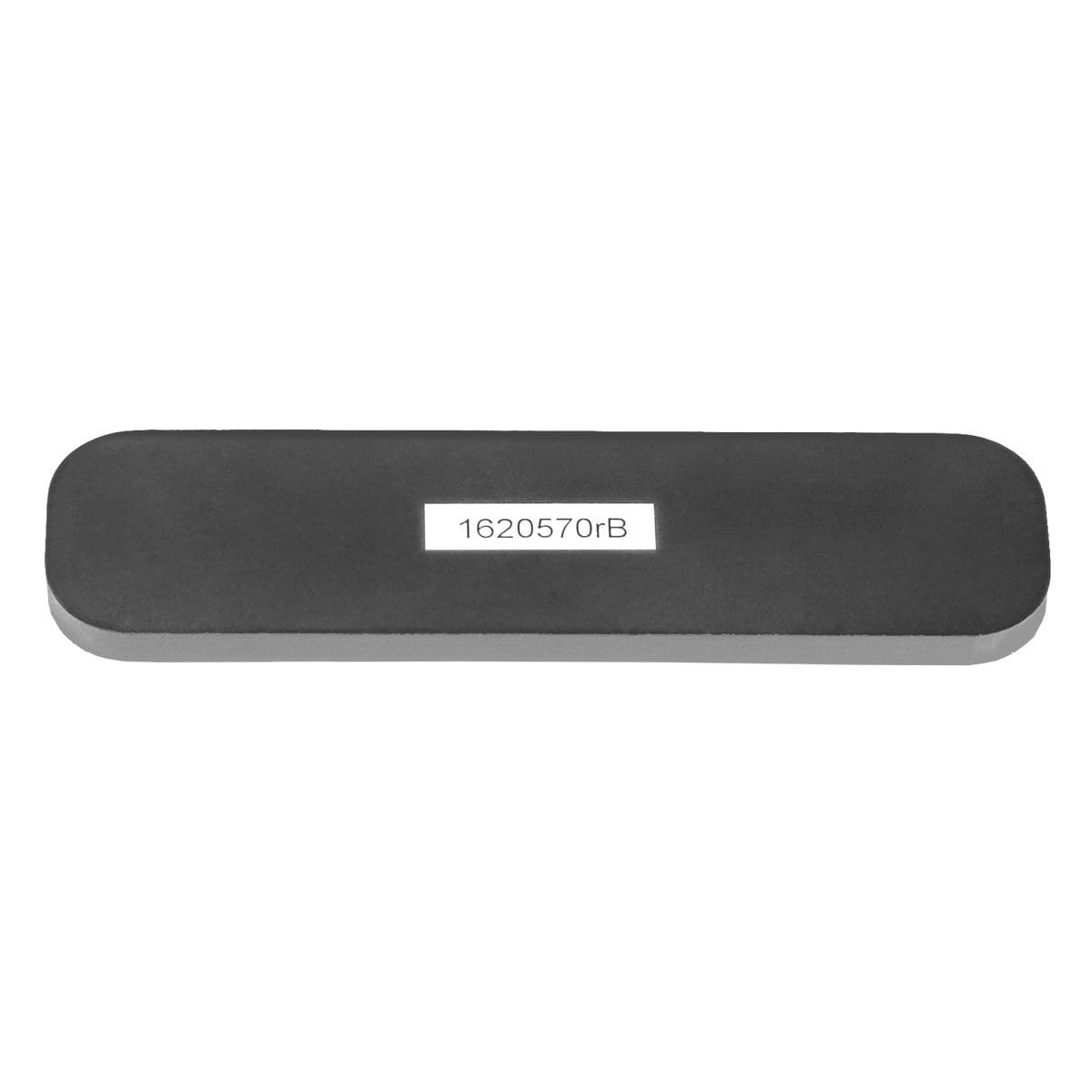

Garrett Flat Test Piece (FTP)
Detector test piece that represents small knife or box cutter.

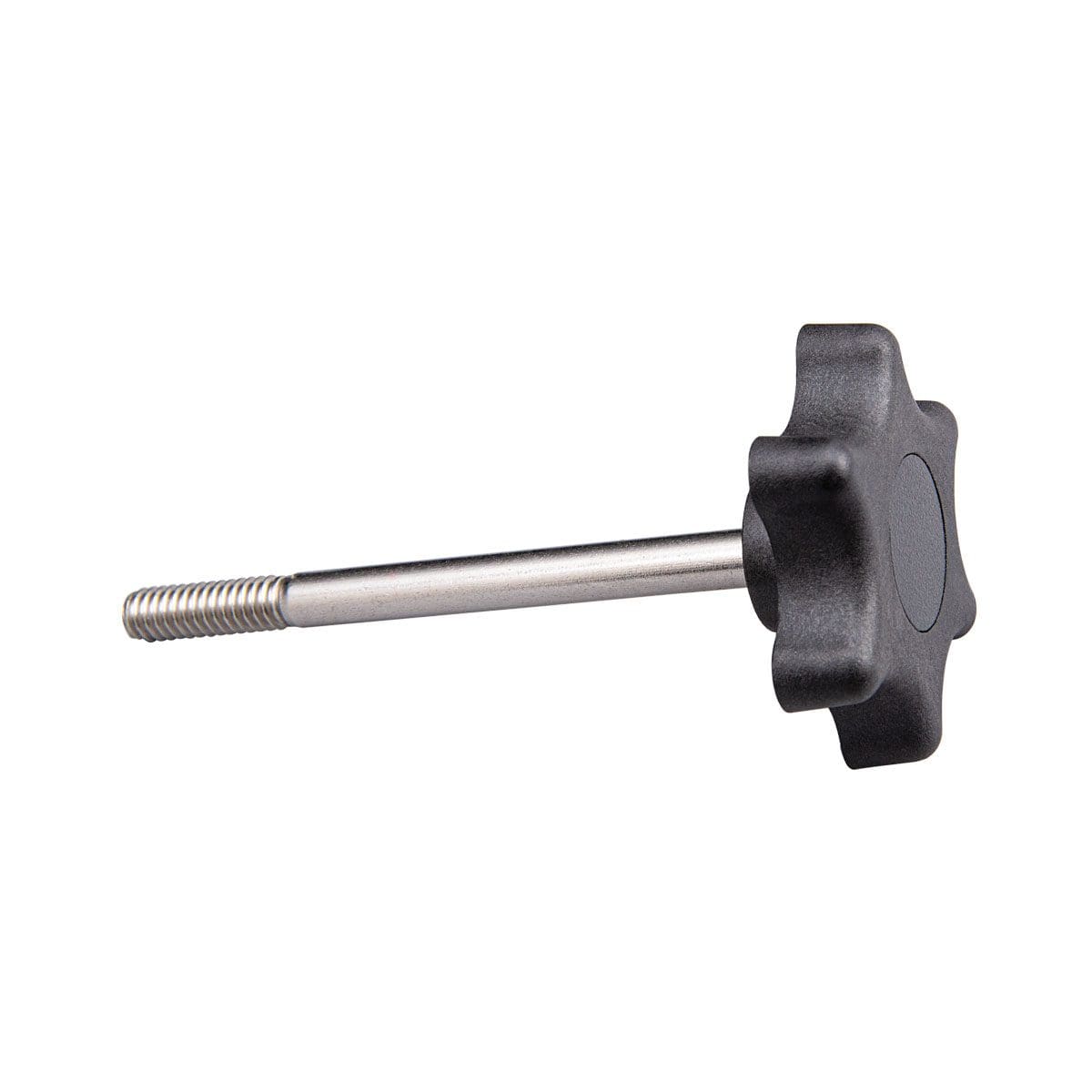

Garrett Speed Assembly Kit
Quick screws with knurled hand knobs for toolless walkthrough assembly or disassembly. Comes with 8 screws.

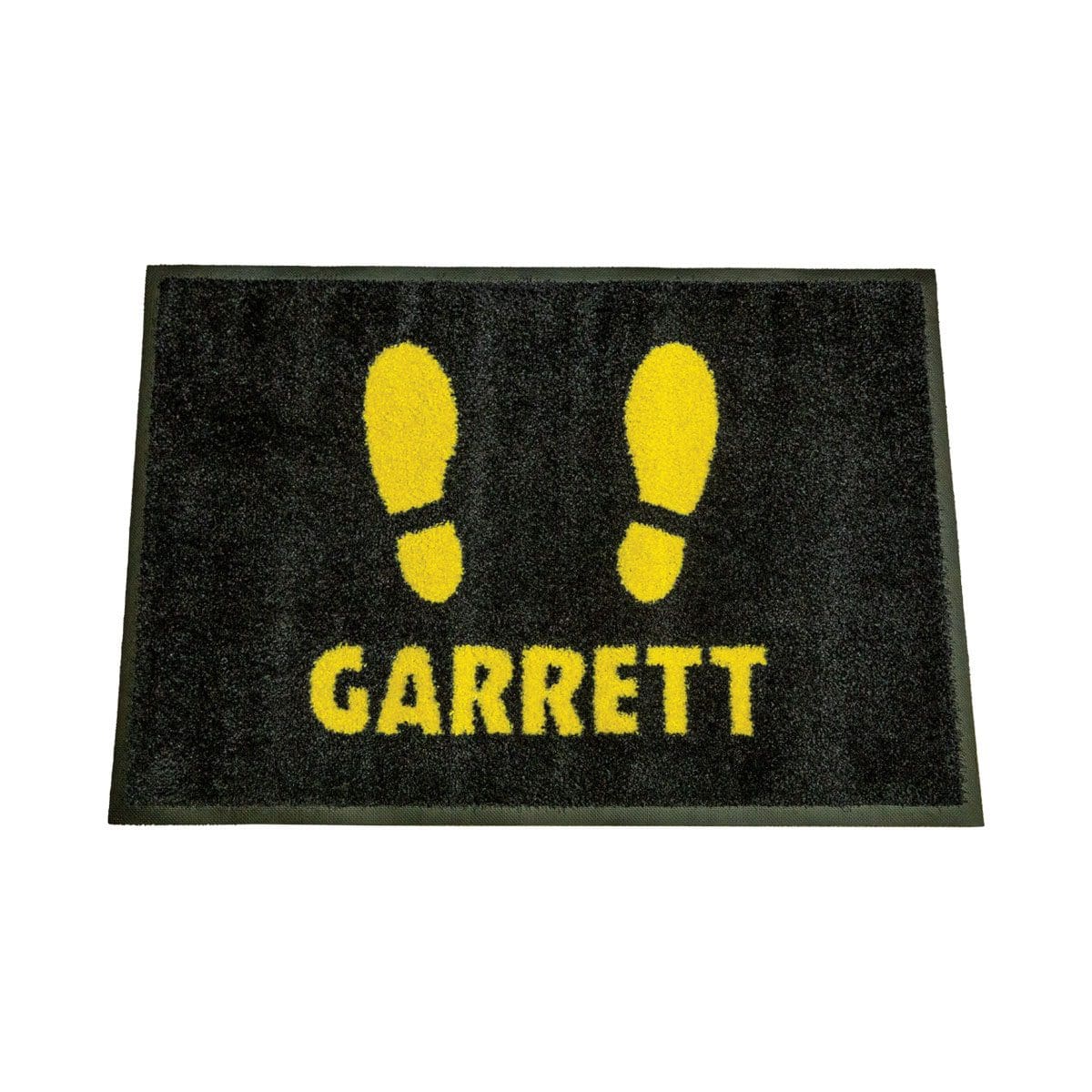

Garrett Floor Mat
For checkpoint use while screening patrons.
Garrett Walk-Through Detector Specs Comparison
 For maximum performance |  Powerful and budget friendly | |
|---|---|---|
| Detection Zones | 33 zones (left, right and center); visual and audible alarms with a built-in dry contact alarm relay | 20 independent zones; visual and audible alarms |
| Multi-Unit Synchronization | Synchronization with wired AC power lines or with manual frequency selection for wireless operation | Synchronization with wired AC power lines or with manual frequency selection for wireless operation. Auto frequency scan for wireless operation |
| Visual Displays | LED zone indicator lights on both panels. Pace lights on entry side only, with intuitive images. | LED zone indicator lights on both panels. Status lights are individually configurable as pace lights, ready/alarm lights or disabled. |
| Access Control | Eight-button keypad with numerical codes. Keypad lock to control access and to enable/disable the keypad. | Ten-button operation with full alpha-numeric 5-digit access code. Enable and disable keypad function with a rocker switch locked inside the detector head. |
| Passageway Interior Size | Width 30″ (0.76 m) Height 80″ (2.03 m) Depth 23″ (0.58 m) (32” versions are also available) | Width 30″ (0.76 m) Height 80″ (2.03 m) Depth 23″ (0.58 m) (32” versions are also available) |
| Overall Exterior Size | Width 35″ (0.90 m) Height 87″ (2.21 m) Depth 23″ (0.58 m) | Width 35″ (0.90 m) Height 87″ (2.21 m) Depth 23″ (0.58 m) |
| Shipping Size | Width 35.5″ (0.90 m) Height 91.5″ (2.32 m) Depth 6.25″ (.16 m) | Width 35.5″ (.90 m) Height 91.5″ (2.32 m) Depth 6.25″ (.16 m) |
| Shipping Weight | 165 lbs. (74 kg) | 151 lbs. (68.5 kg) |
| Operating Temperatures | -4º F (-20º C) to +149º F (65º C); Humidity to 95% non-condensing. | -4º F (-20º C) to +140º F (60º C); Humidity to 95% non-condensing. |
| Power | Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 45 watts; no rewiring, switching or adjustments needed. | Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 40 watts; no rewiring, switching or adjustments needed. 1-hour backup battery included for the MultiZone. |
| Regulatory Information | Meets international airport standards such as TSA, ECAC, STAC, AENA, CJIAC, DFT. Meets additional standards and requirements such as USMS, NIJ-0601.02, NILECJ. Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP, IEEE. | Meets Electrical Safety and Compatibility Requirements for CE, FCC, CSA, IEC, ICNIRP and IEEE. Additional certifications pending. |
| Weatherproofing | Meets IP 55, IP 65, IEC 529 Standard for moisture, foreign matter protection | Meets IP 55, IEC 529 Standard for moisture, foreign matter protection |
| Construction | Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. | Attractive scratch and mar-resistant laminate. Detection Heads and Support: heavy duty aluminum. |
| Control Outputs | Solid state switches (low voltage AC or DC) for operating external alarms and control devices. | Optional Relay module connected via RS 485 cable provides NO/NC relay contact |
| (optional) Remote Control | Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote | Desktop Remote Control with Zone Indication; personal computer with wired or wireless iC Module; or IR remote |
| (optional) Networking | Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. | Manage individual or groups of walkthroughs and perform statistical analysis of throughput with wired or wireless iC Module and client software. |
| Warranty | 36 months, limited parts and labor | 36 months, limited parts and labor |
Garrett Walk-Through Detector Safety
Garrett walk-through metal detectors meet U.S., Transportation Security Administration (TSA), and international regulatory requirements for electromagnetic safety. Extensive research has found no information that would indicate Garrett products have adverse effects on pregnancy, medical devices (such as pacemakers), or magnetic recording media. However, those with medical conditions should follow directives by physicians and medical device manufacturers regarding metal detectors.
