Vortex VX9

VX9


MORE POWER THAN VX7

The Professional’s model. Full three-tiered MD-MF Target ID display (including two ferrous scales to help identify unwanted iron trash). Includes Multi-Salt and additional frequency choices. Additional Recovery Speed controls. FAST Mode for competition hunts and high-trash search areas. THIN COINS Mode for detecting fine, lower conductive coins such as hammered silver and thin gold coins.
Full Three-Tiered MD-MF Target ID Scale
When operating in Multi-Frequency, the VX9’s Target ID system displays a non-ferrous scale and two ferrous scales to help identify unwanted iron trash. Complex targets may indicate on both scales simultaneously.

More target information . . . so you can make better dig decisions!
Thin Coins Mode (VX9 only)
Perfect setting made specifically for going after small thin coins - hammered silvers, tiny ancient gold coins, etc.




Faster recovery speed.

Enhanced Response on select Target ID range.

Target Response reduced for common ferrous items and high-tone targets.

Fast Mode
Designed for use in trashy areas, where abundant trash can mask adjacent coins. Also ideal for use in competition hunts. Includes fast recovery speed and reduced iron volume.
3 Levels of Recovery Speed control
Choose from three recovery speeds. Increased recovery/reactivity speed helps you more clearly distinguish adjacent targets. A great benefit for competition hunts and for hunt sites filled with metallic trash that might otherwise mask good targets.
Vortex searching beach
Includes Beach Mode and Multi-Frequency Salt operation!
Utilize the power of MD-MF Technology and Multi-Salt operation. Smooth operation and deep Target ID accuracy along wet salt beaches and in the surf. Fully submersible to 16 feet.
Wireless ready!
Built-in Z-Lynk wireless technology means you can search without cords attached to your detector.

Garrett MS-3 Z-Lynk headphones and other Z-Lynk accessories sold separately
SEVEN (7) FREQUENCY OPTIONS
Choose from five powerful single frequencies (5 kHz, 9 kHz, 13 kHz, 18 kHz, or 25 kHz) or search with one of two Vortex simultaneous Multi-Frequency options (the traditional Multi or Multi-Frequency Salt for saltwater beach use).
SEARCH MODE VERSATILITY


Choose from 7 options:

  • Thin Coins Mode

  • Fast Mode

  • Zero Discrimination

  • Beach Mode

  • Standard Mode (ideal for hunting relics, jewelry, and most international coins)

  • USA Coins Mode

  • Custom Mode
Iron Volume
Control What you Hear
Iron Volume allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease the volume of undesired items. Eight adjustment levels.
Lightweight and Collapsible!
Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm)

Weight: 3 lbs. (1.38 kg) with coil cover installed.

MD-MF Technology Explained
The world’s first fully upgradeable waterproof detector series! As your skills increase, you can opt to convert your VX-5 to a VX-7 or VX-9 model with software updates. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power!


SUBMERSIBLE TO 16 FEET (5 METERS)
Suba diver underwater scanning with a Garrett Vortex metal detector.




Search streams, lakes, and the ocean coast with your Vortex.

(Submersible headphones coming soon)



EASY-ACCESS POWERFUL MENU OPTIONS
Hi-Resolution Ground Balance
175 points of ground balance resolution, ranging from ferrous ground to saltwater.

Volume Control
For both the built-in speaker and headphones.

Eight Sensitivity/Depth Adjustments

Iron Audio
Garrett’s unique feature helps to correctly identify complex iron objects, such as bottlecaps and steel washers.

Seven Search Modes + Pinpoint

Frequency Shift
Use to reduce noise or electrical interference (EMI)

Backlight
Illuminate your LCD screen to see target information at night.
Click to explore the Vortex VX9
Garrett Vortex VX9 control panel
+
+
+
+
+
+
+
+
+
+
+
+
+
+

World’s first fully transformable detector series!


As your skills increase, transform your VX7 into a VX9.
Vortex Series Comparison Chart
Vortex VX5 Vortex VX7 Vortex VX9
MD-MF
Target ID Scale
One Target ID Scale
(0-99)
2-tier Target ID Scales 3-tier Target ID Scales
Frequencies 13 khz, Multi-Freq. 5, 13 kHz, Multi-Freq.,
Multi Salt
5, 9, 13, 18, 25 kHz,
Multi-Freq., Multi-Salt
Search Modes Zero, Standard, USA
Coins, Custom
Zero, Standard, USA
Coins, Beach, Custom
Zero, Standard,
USA Coins, Thin Coins,
Beach, Custom, Fast
Bottlecap Reject (MF function) Fixed Yes Yes
Iron Boundary (MF function) Fixed Fixed Yes
Notch Discrimination Yes Yes Yes
High-Resolution Iron Discrimination Yes Yes Yes
Sensitivity settings 8 8 8
Variable Recovery Speed Fixed Yes: 2 settings Yes: 3 settings
Z-Lynk Wireless No Yes Yes
Channel (EMI Reduction) Yes Yes Yes
Increased sensitivity/depth No Yes Yes
Auto Ground Balance Yes Yes Yes
Number of Tones 3 3, 5 3, 5
Volume Control Yes Yes Yes
Iron Audio™ Yes Yes Yes
Iron Volume No Yes Yes
Button Lock (Dive Mode) Yes Yes Yes
Pinpoint Yes Yes Yes
LCD Backlight Yes Yes Yes
Battery Condition Indicator Yes Yes Yes
Length (Adjustable) 24.75" to 56.75"
(62.86 cm - 144.14 cm)
24.75" to 56.75"
(62.86 cm - 144.14 cm)
24.75" to 56.75"
(62.86 cm - 144.14 cm)
Total Weight (with 8.5" x 11" coil) 3 lbs (1.38 kgs) 3 lbs (1.38 kgs) 3 lbs (1.38 kgs)
Fully Waterproof to 16 ft (5m) 16 ft (5m) 16 ft (5m)
Warranty 3 Years,
Limited Parts/Labor
3 Years,
Limited Parts/Labor
3 Years,
Limited Parts/Labor

Updateable / Upgradeable Yes Yes Yes

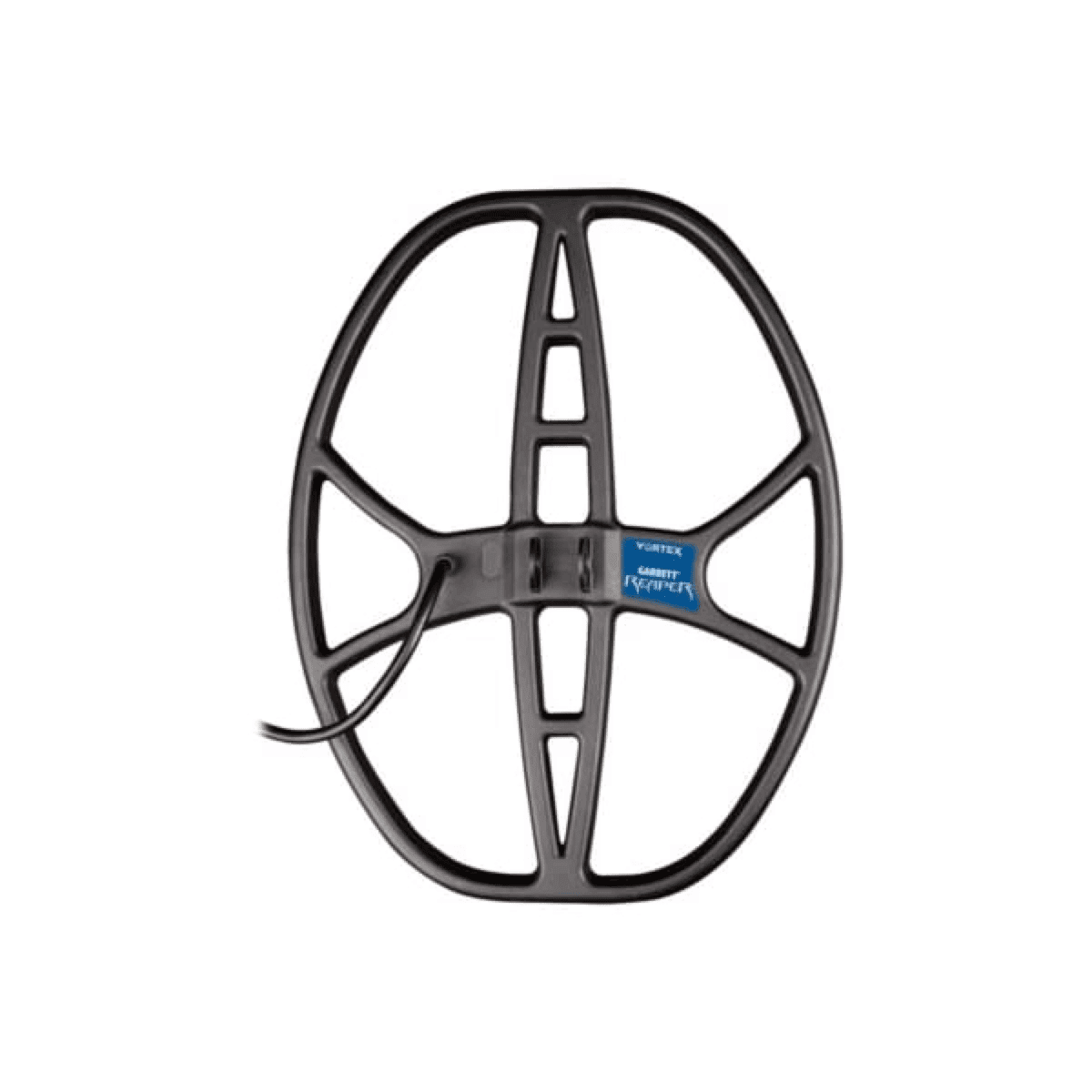

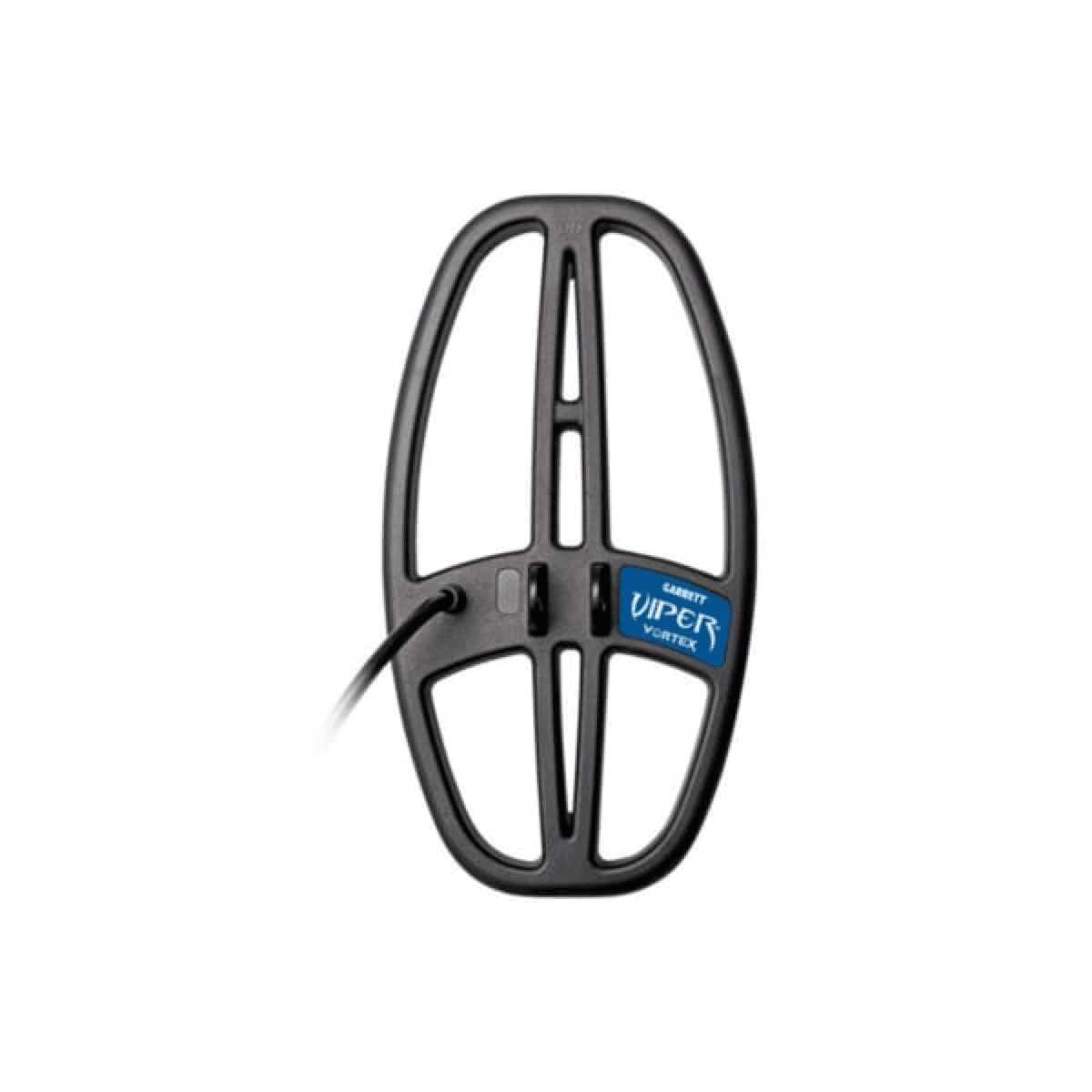

Vortex Searchcoils
Vortex searchcoils have a unique waterproof connector and are not compatible with other Garrett detectors.
Vortex Manual & Quick Start Guide
Vortex Manual and Quick Start Guide


Click to view or download a Vortex Manual and Quick Start Guide.


English

Italian

Spanish

Accessories

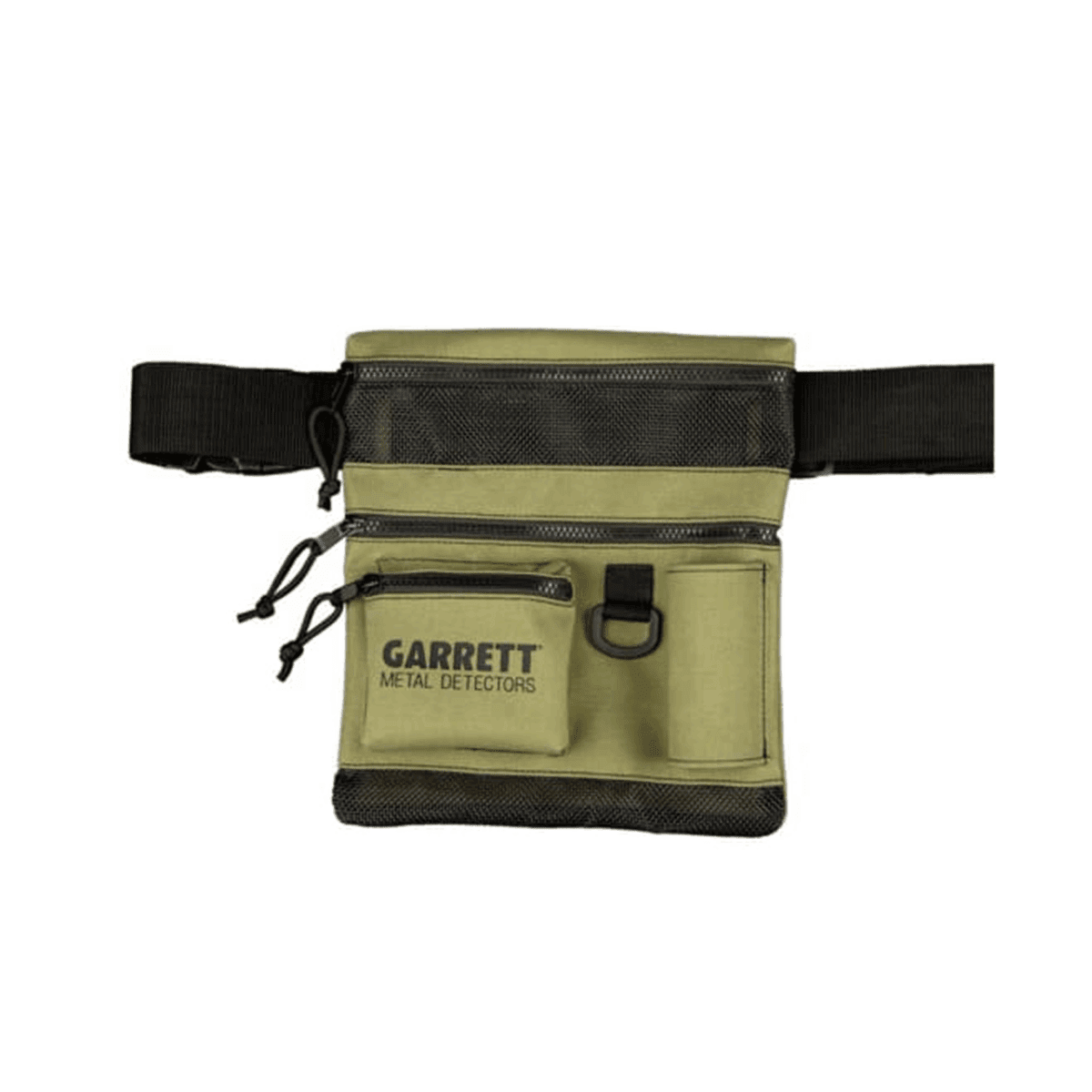

Digging tools, treasure pouches, Keepers finds box, and sand scoops.
