Garrett Guide Hand-Held Metal Detector

PN: 1173000

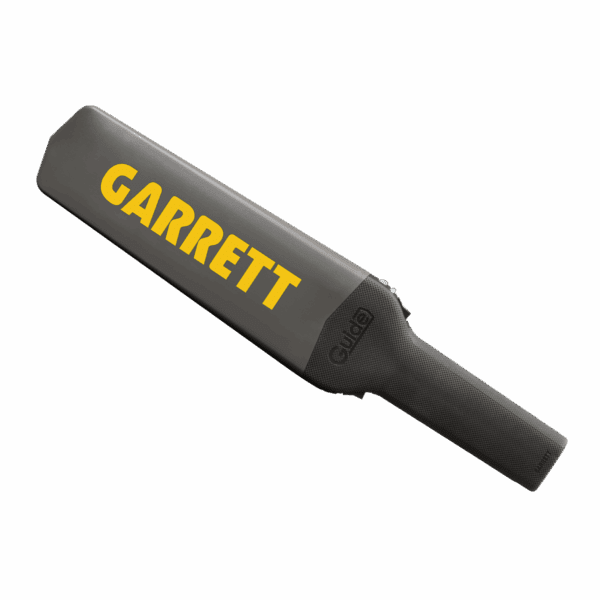

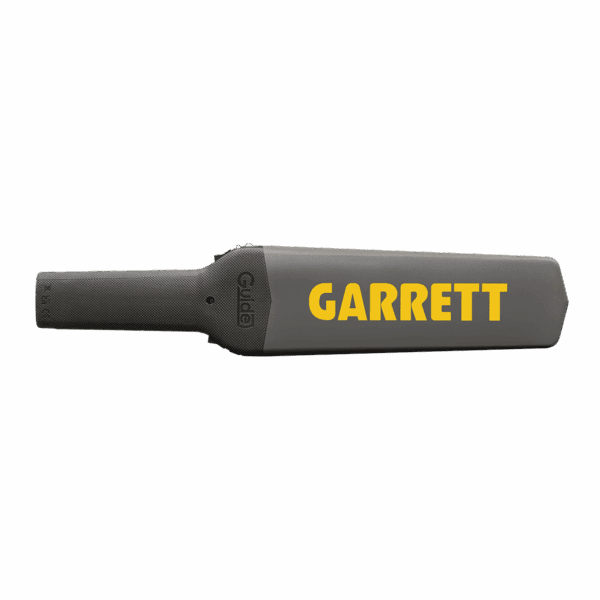

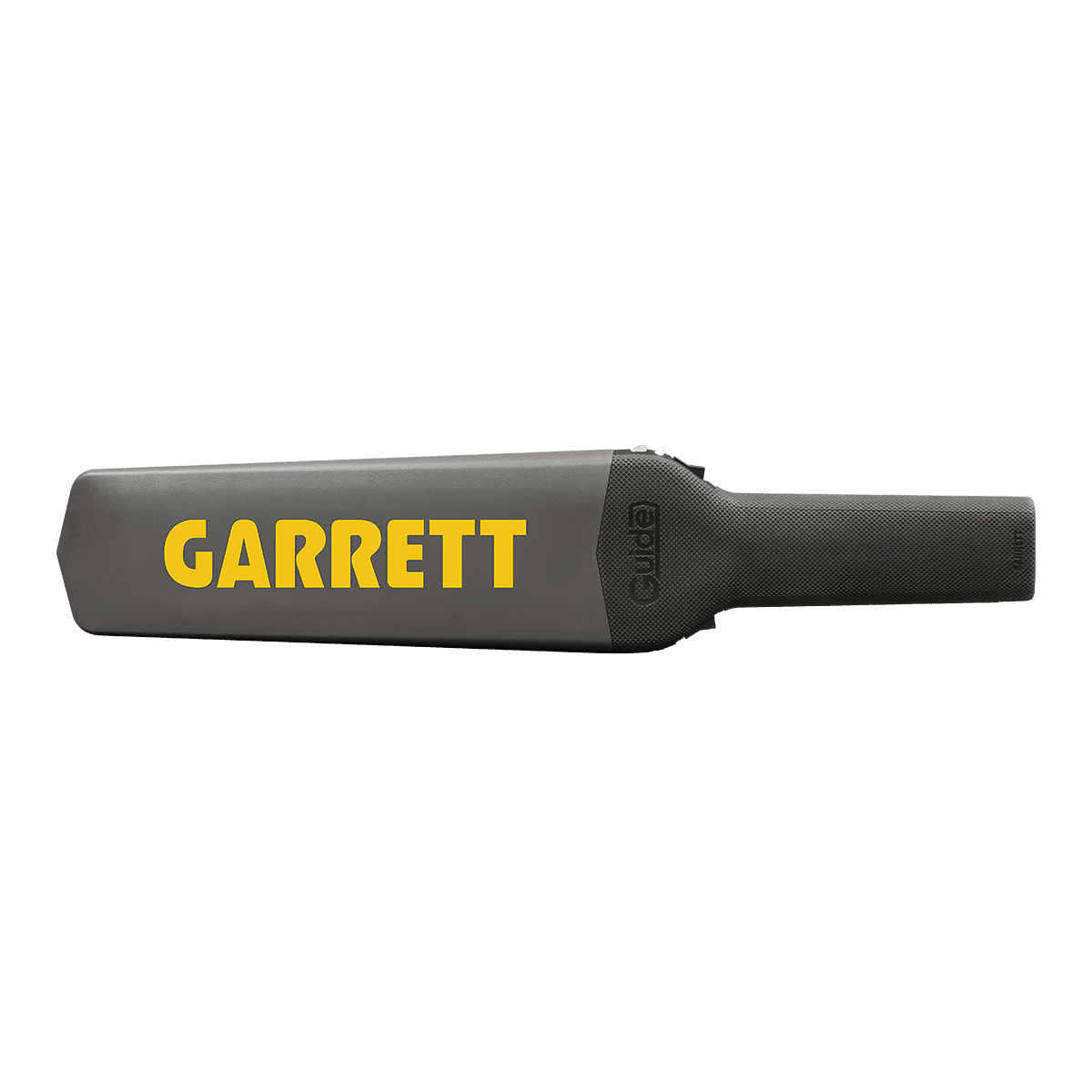

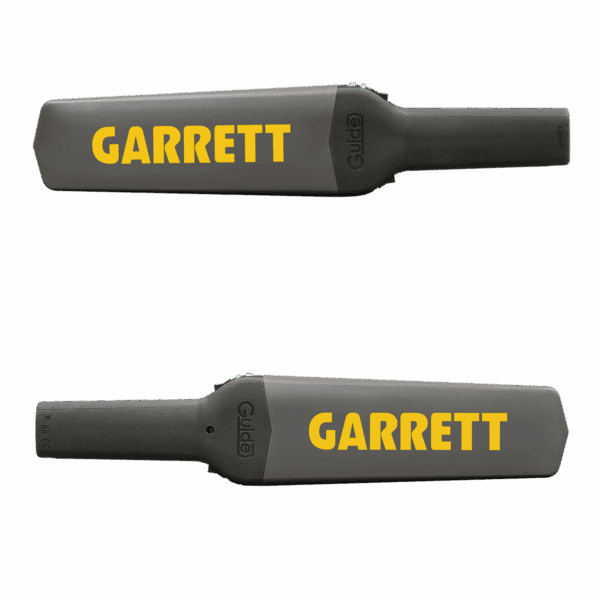

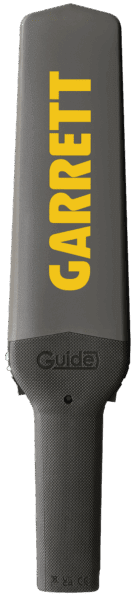

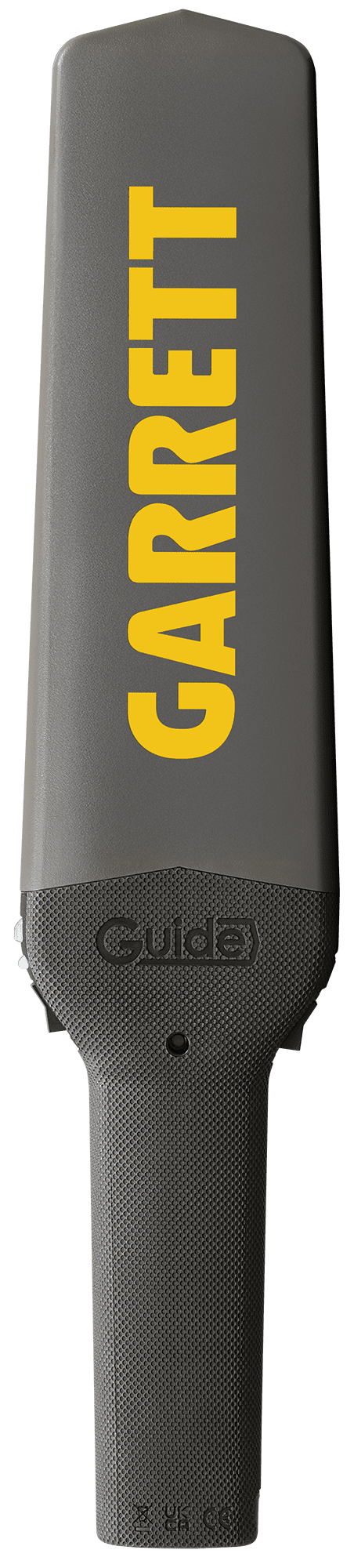

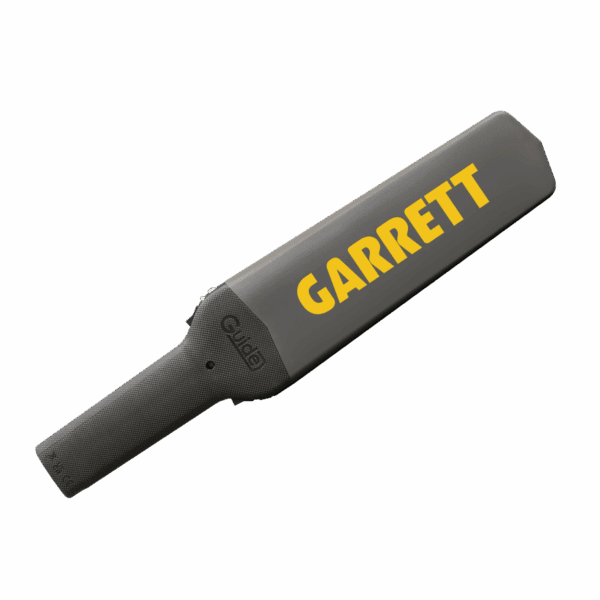

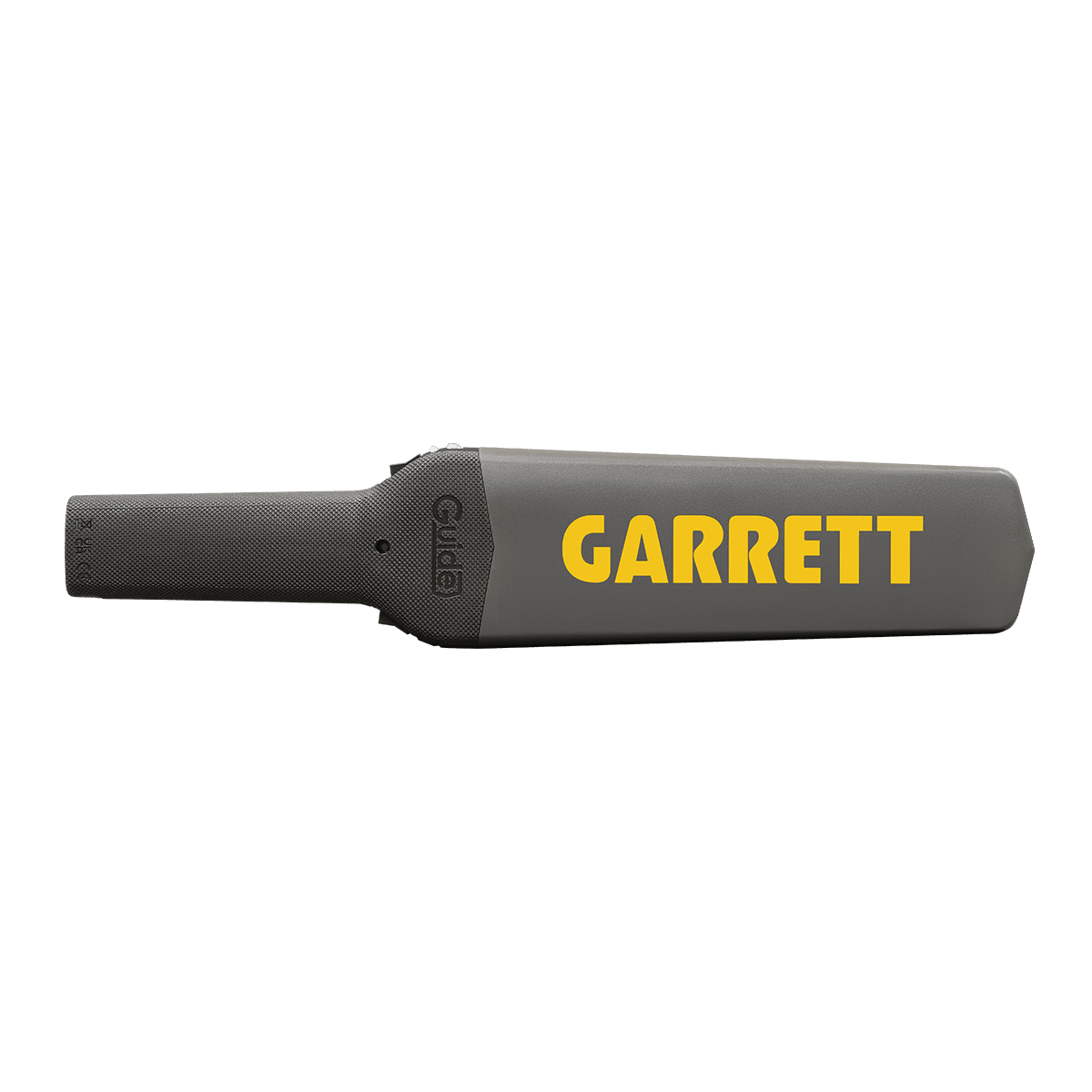

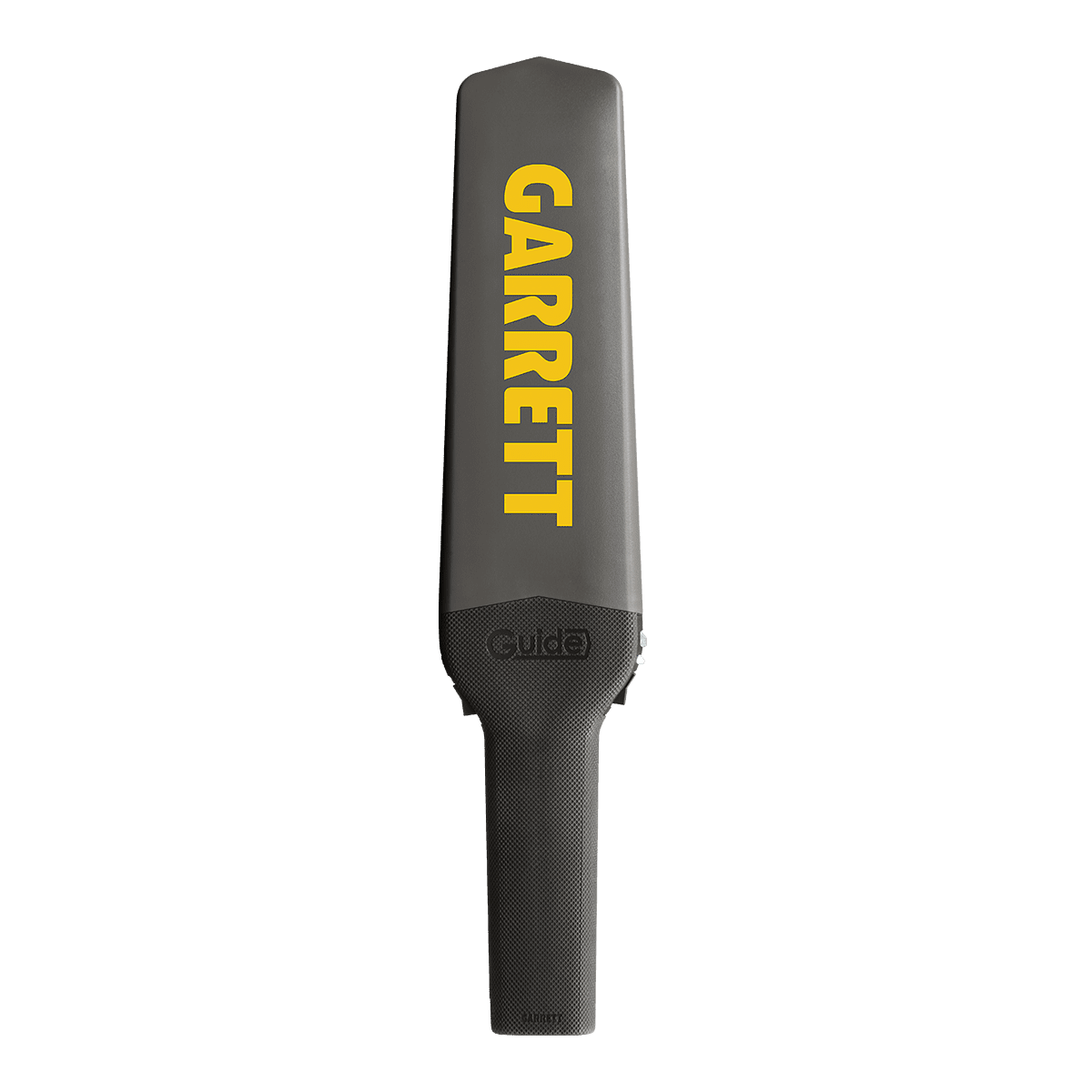

Garrett Guide Hand-Held Metal Detector

Name: Garrett Guide Hand-Held Metal Detector
Brand: Garrett Electronics
SKU: 1173000

Next-generation hand-held security. Sophisticated and simple metal detection for secondary screening.

On Sale

USA Customers

Free Ground Shipping when you spend $100.00

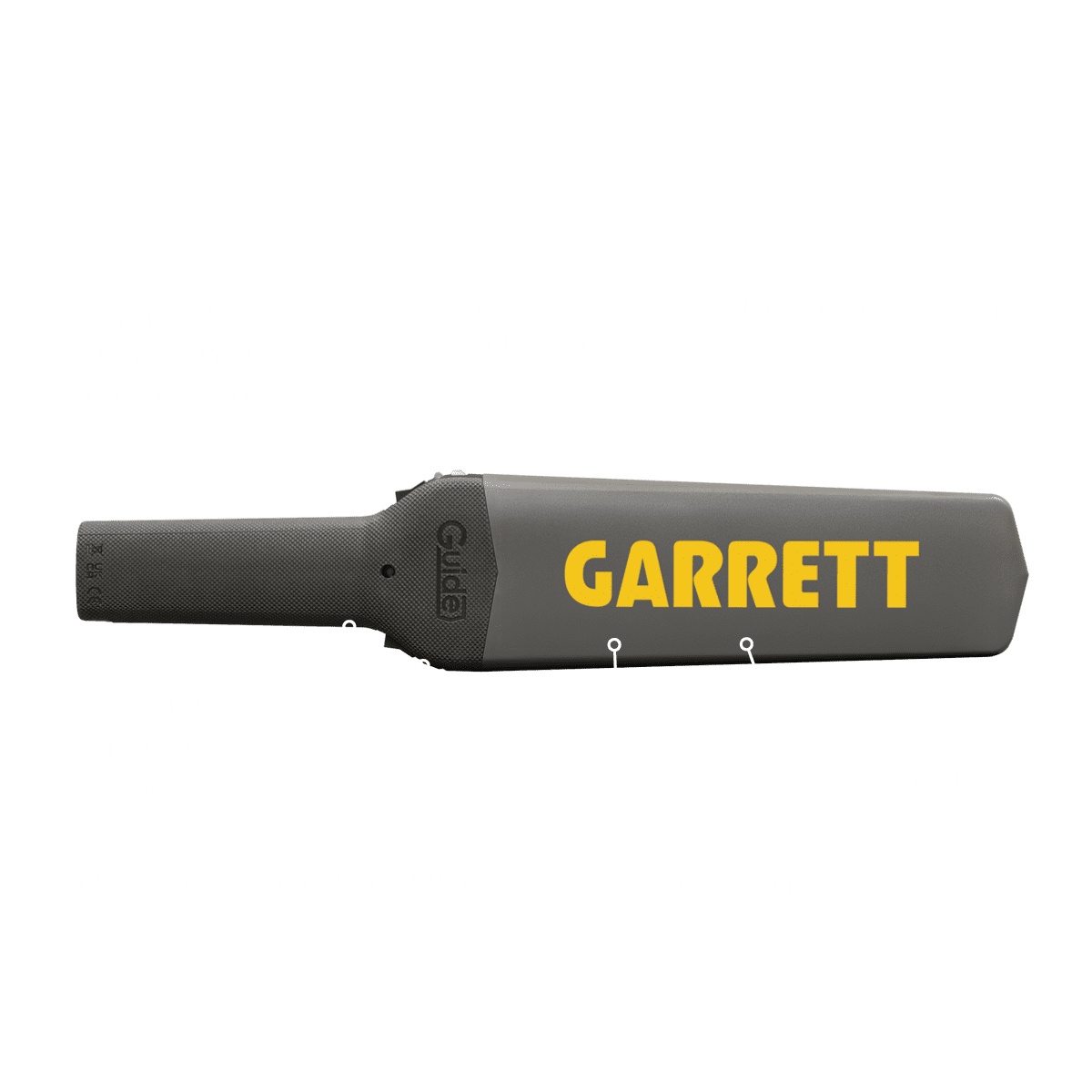

PRODUCT HIGHLIGHTS

Hand-Held Metal Detector

ELEGANCE AND EASE-OF-USE.

Maximal Effect, Minimal Effort: Takes the hallmark simplicity of Garrett handhelds to the next level with one-button activation, three-button full control. More features and more accessibility than ever before.

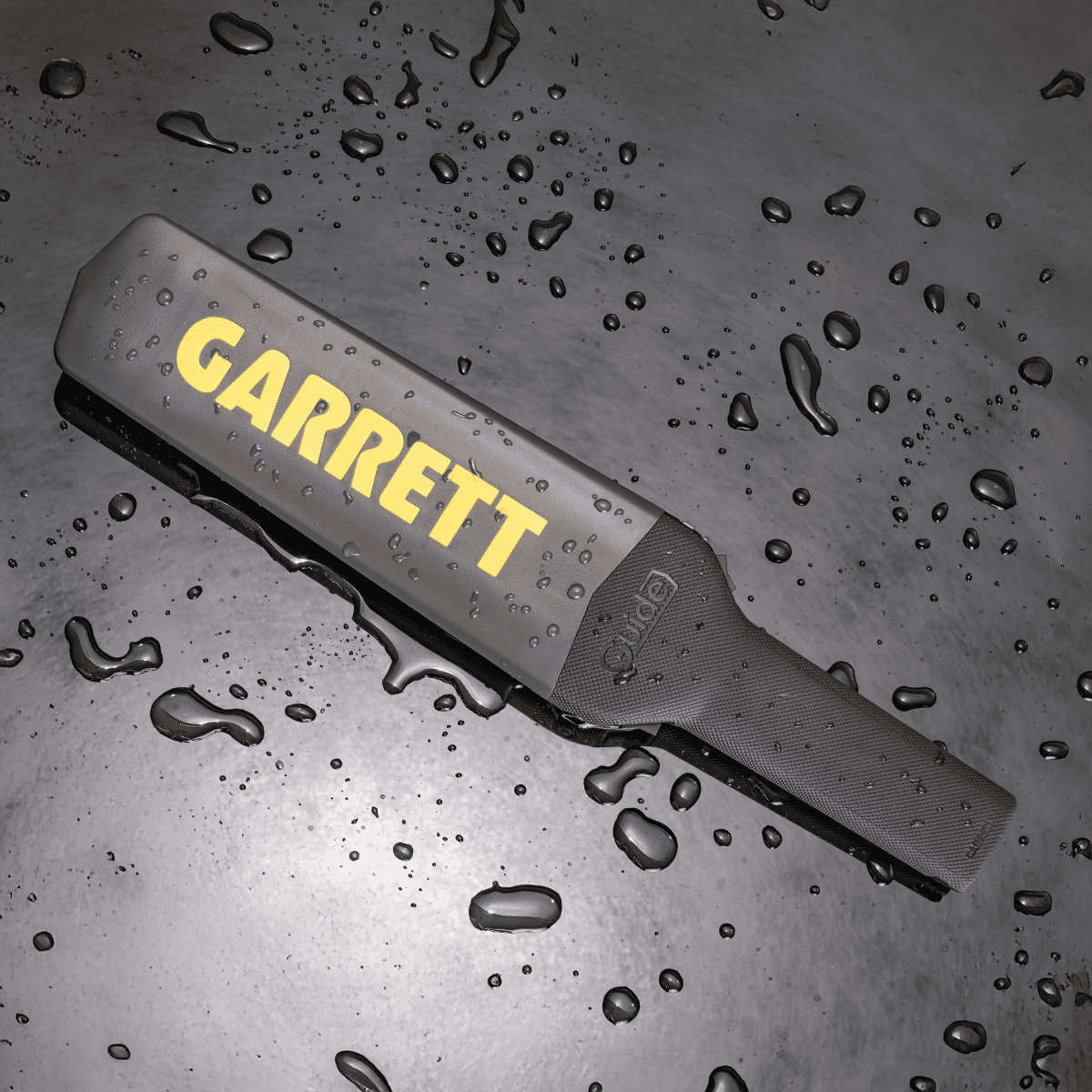

Refined Construction: Features a sleek and modern aesthetic with IP 65 waterproofing and a microtextured dimpled rubber grip, all constructed to military spec drop test requirements.

HIGH SECURITY DETECTION.

7 Selectable Sensitivities: Lets you find your targets how you want, from focusing on large threats at low sensitivities to prison and clean-room level security at higher levels.

Address Interference Instantly: Eliminates electromagnetic interference from other handhelds by pressing the Offset Button and negates the impact of troublesome rebar with the Reduced Sensitivity Switch.

RECHARGEABLE AND LONG-LASTING.

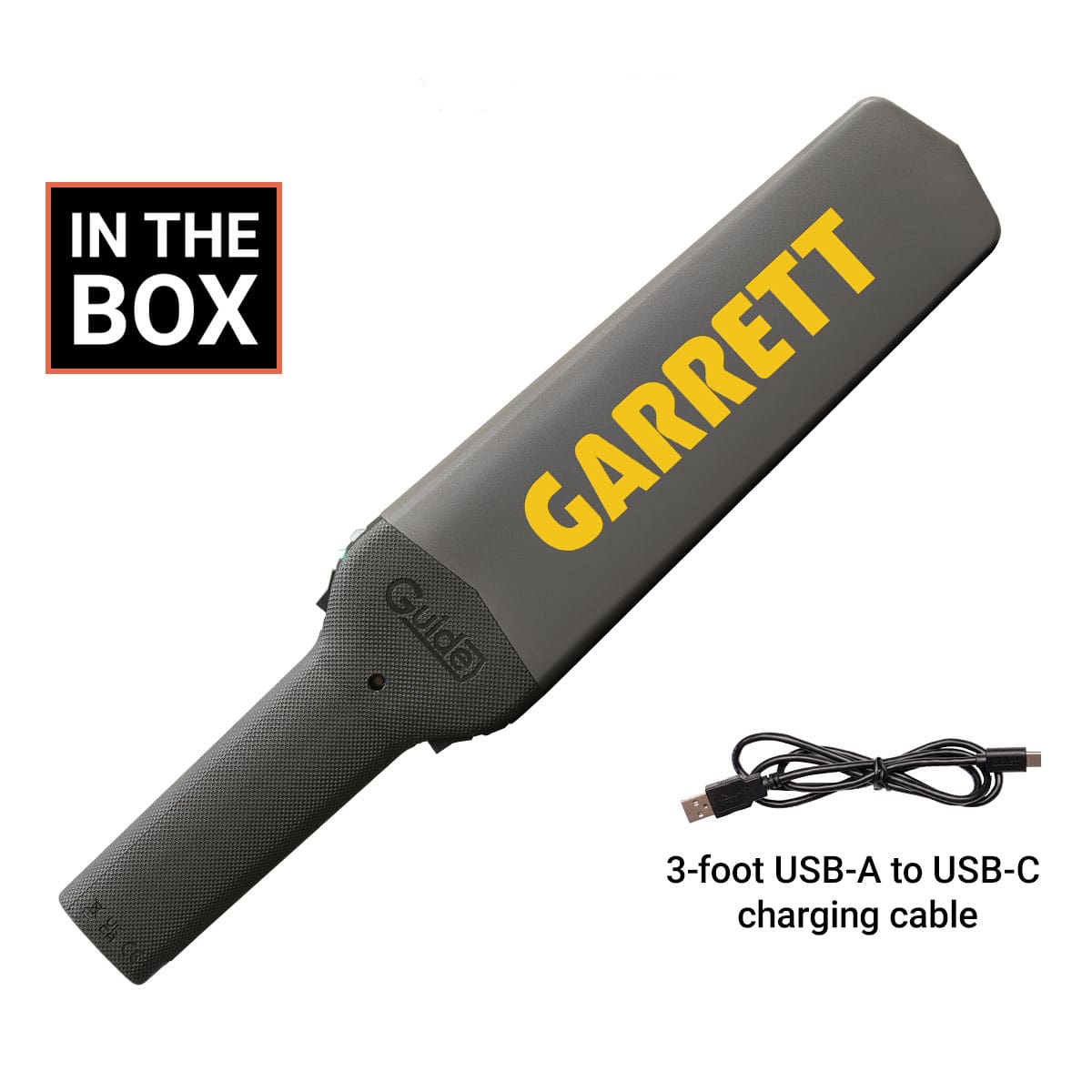

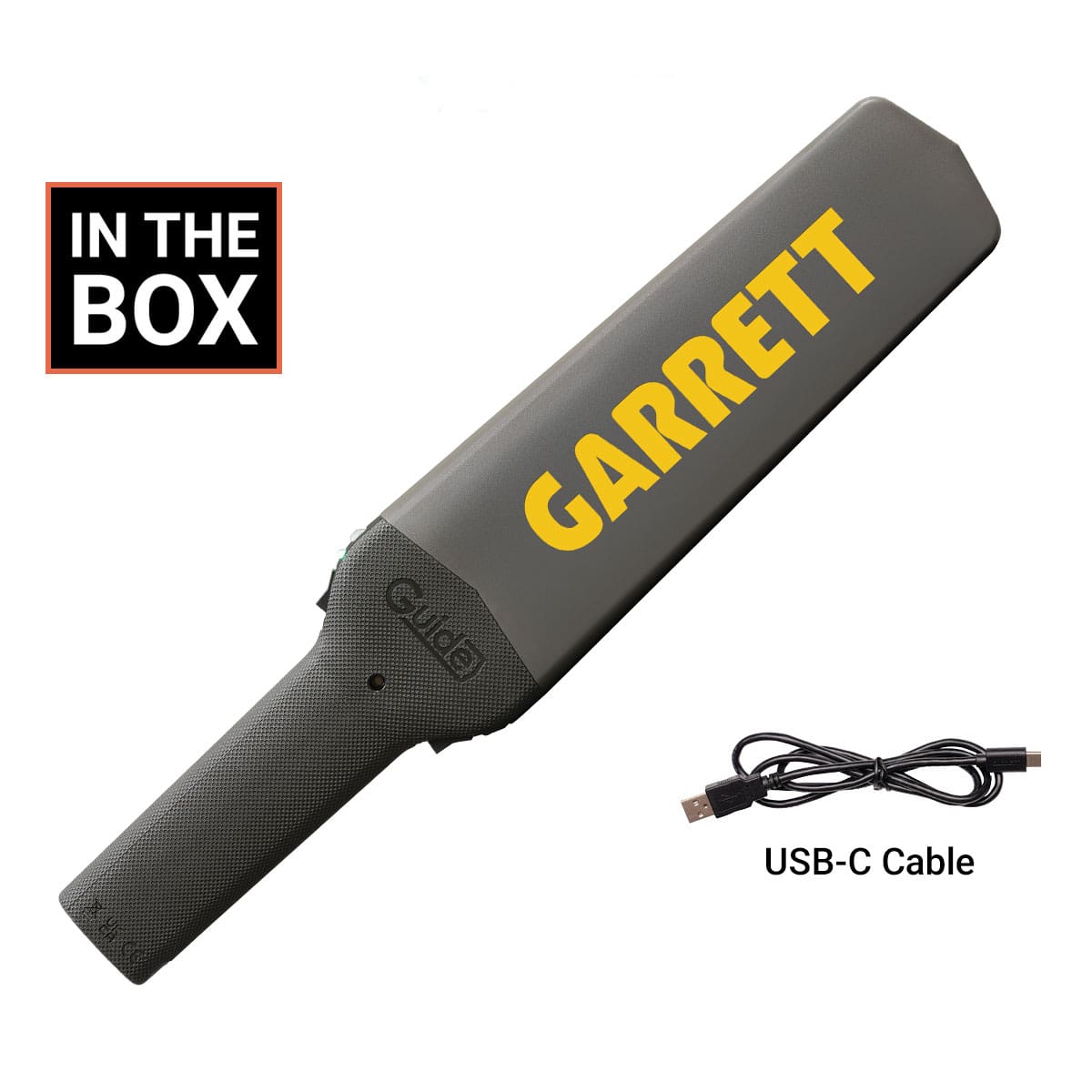

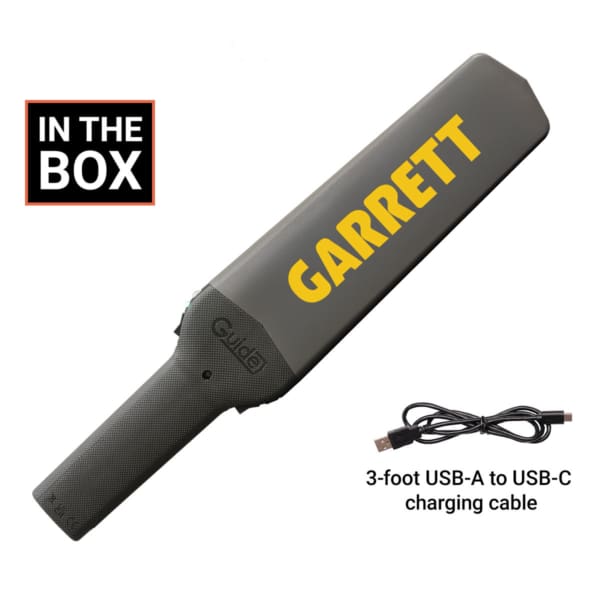

Eliminate Waste: Comes with rechargeable lithium-ion batteries and a 3- foot USB-A to USB-C charging cable to reduce environmental waste and save on repeated battery purchases.

Powerful Batteries, More Uptime: Operates for more than 125 hours on a single charge and fully charges in only 5 hours.

FAST AND CONSISTENT SCANS

Large Scanning Surface: 8-inch scan length means better screening coverage, reduced operator fatigue, and simplified scanning patterns for rapid security checks.

Self-Calibrating Design: Eliminates manual sensitivity adjustments, ensuring consistent and reliable performance.

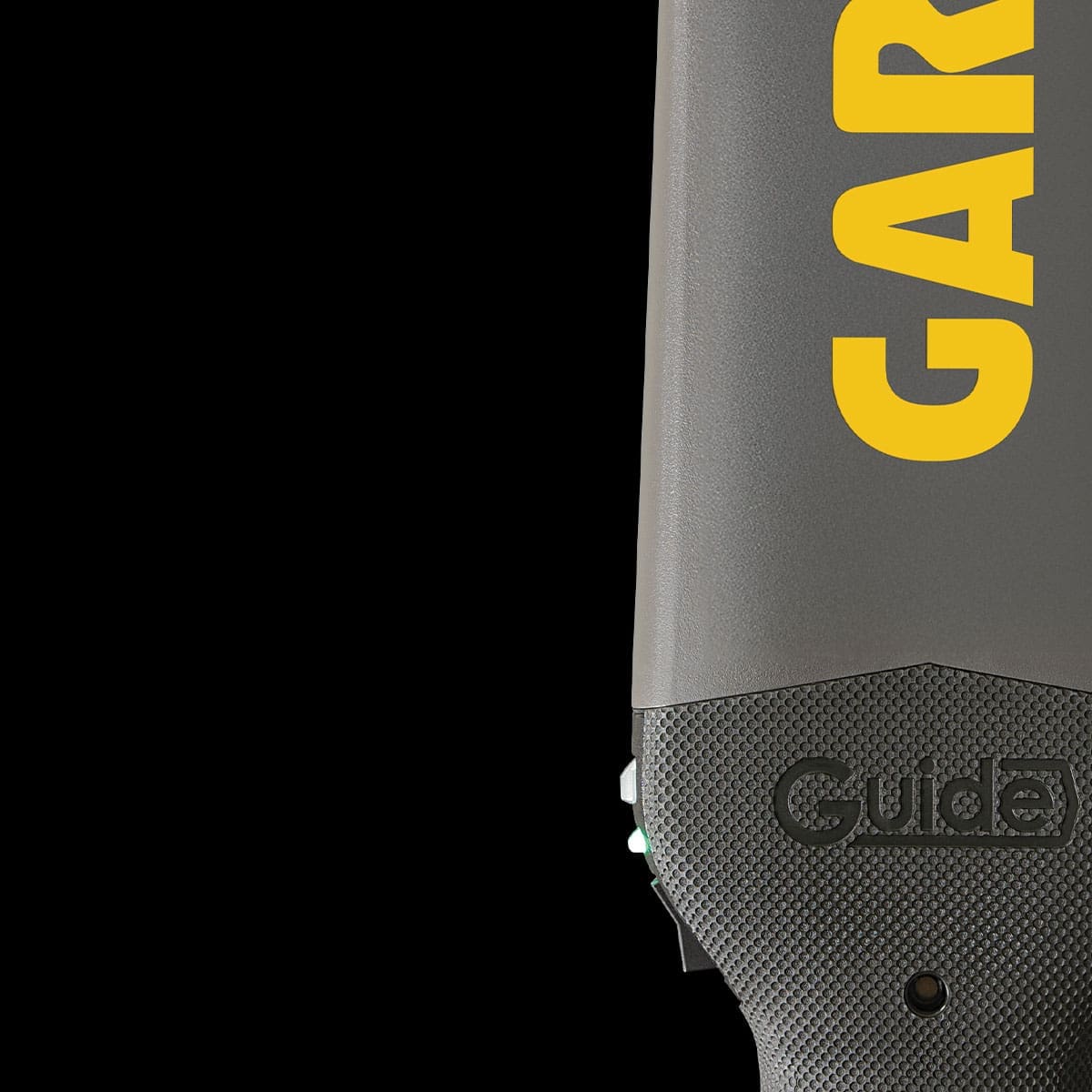

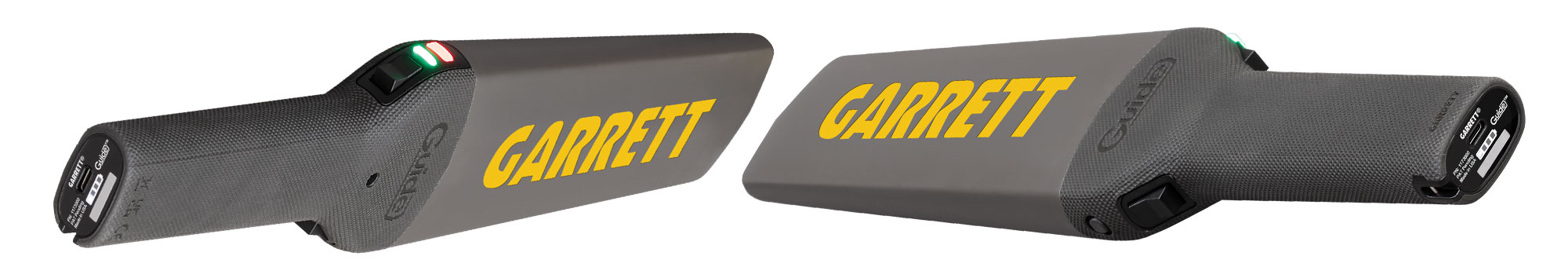

INTRODUCING THE GARRETT GUIDE

ELEGANCE AND EASE-OF-USE

For nearly 40 years, the Super Scanner V^™ has been the most trusted security handheld globally, with proven performance, demonstrated durability, and Garrett’s hallmark simplicity. Now, the Garrett Guide^™ takes everything that made the Super Scanner V the global standard and raises it to the next level. Guide brings the performance you trust to a new level of refinement and ease-of-use.

Durable construction is still military spec, but Guide adds IP 65 waterproofing and a sleek design that is at home in the most sophisticated environments.
Simple features are still easy to use, but Guide adds no-hassle USB recharging and accessible sensitivity selection.
Detection capabilities are still top tier, but Guide adds seven discretely selectable sensitivity levels for enhanced consistency.

NEXT GENERATION HANDHELD SECURITY

Guide is feature-dense but low on complexity, designed to show the way, not get in the way. Security staff trained on the Super Scanner V will be able port their experience directly to the Guide while enjoying additional quality of life features, while those new to metal detection will be able to get up and running with Guide in only few minutes more.

Beyond that, Guide has been thoughtfully designed to serve the needs of security managers, with built-in rechargeability and a compact charging base accessory to charge and store more units in less space

Additional Details & Features

Meet and Beat: Designed to do anything the iconic Super Scanner V can do, or to do it better.

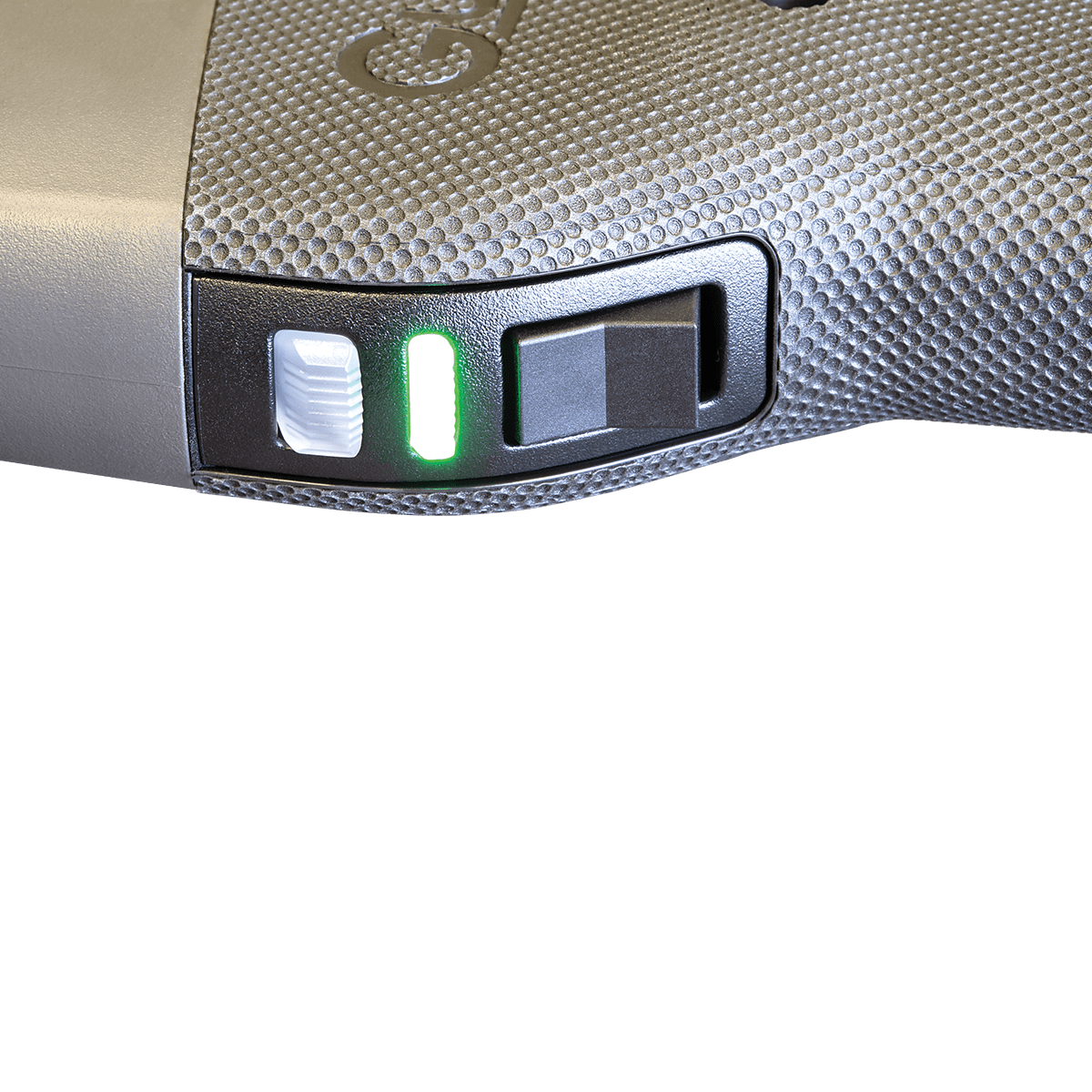

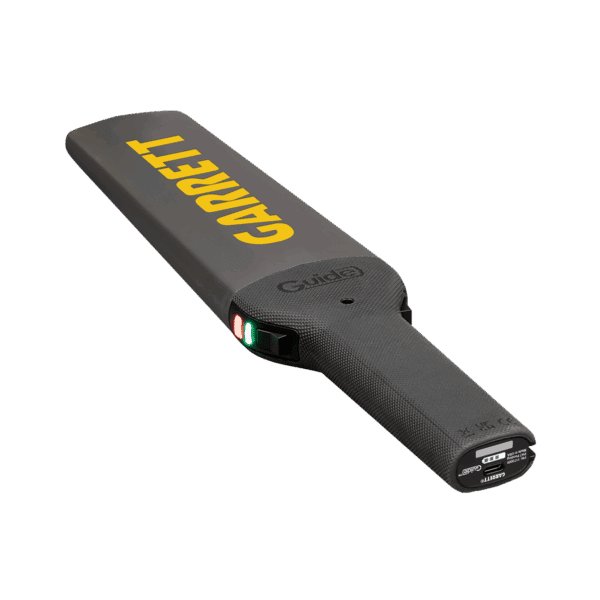

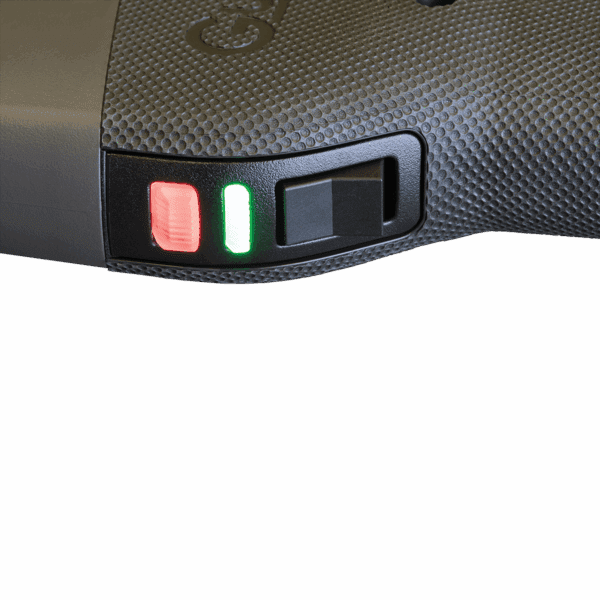

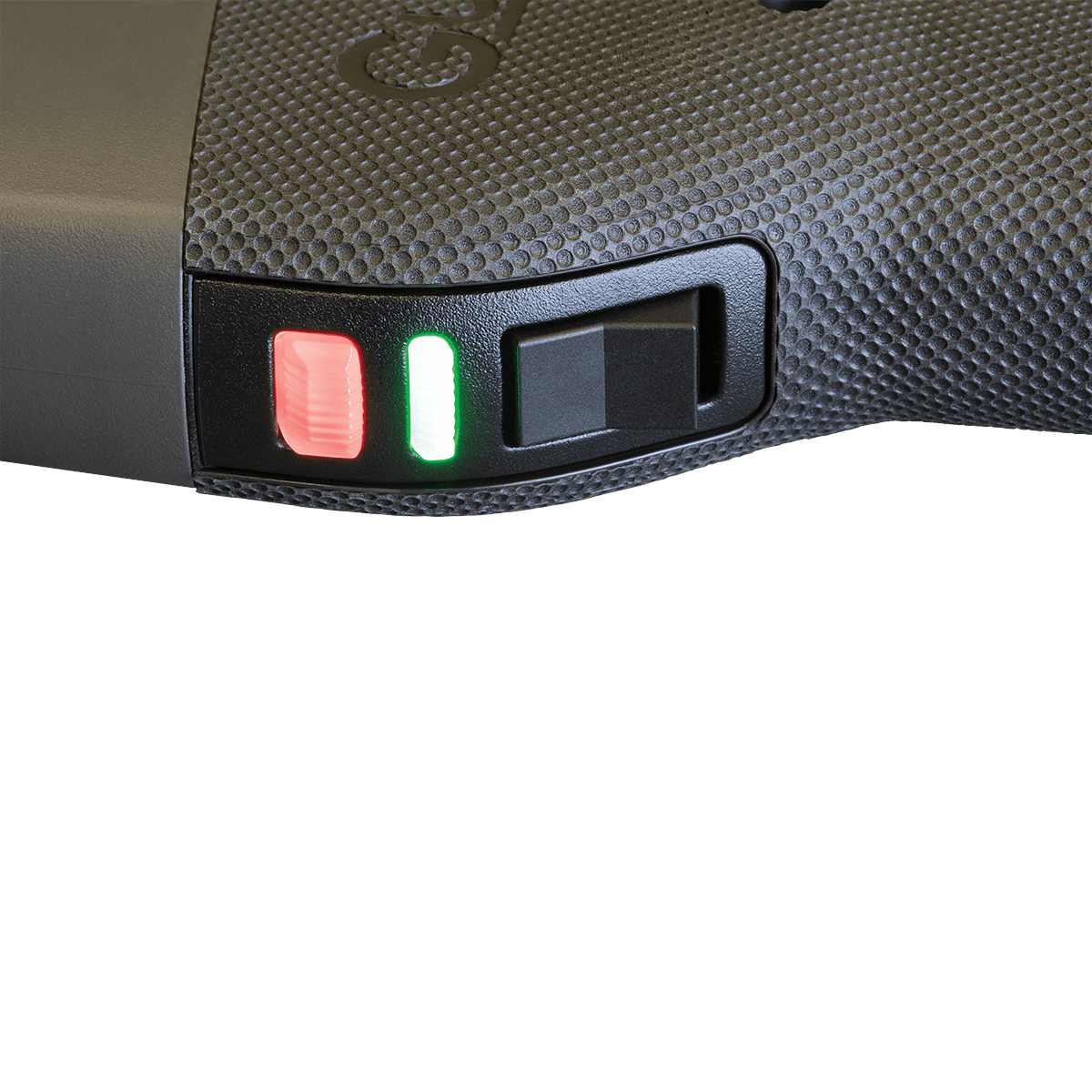

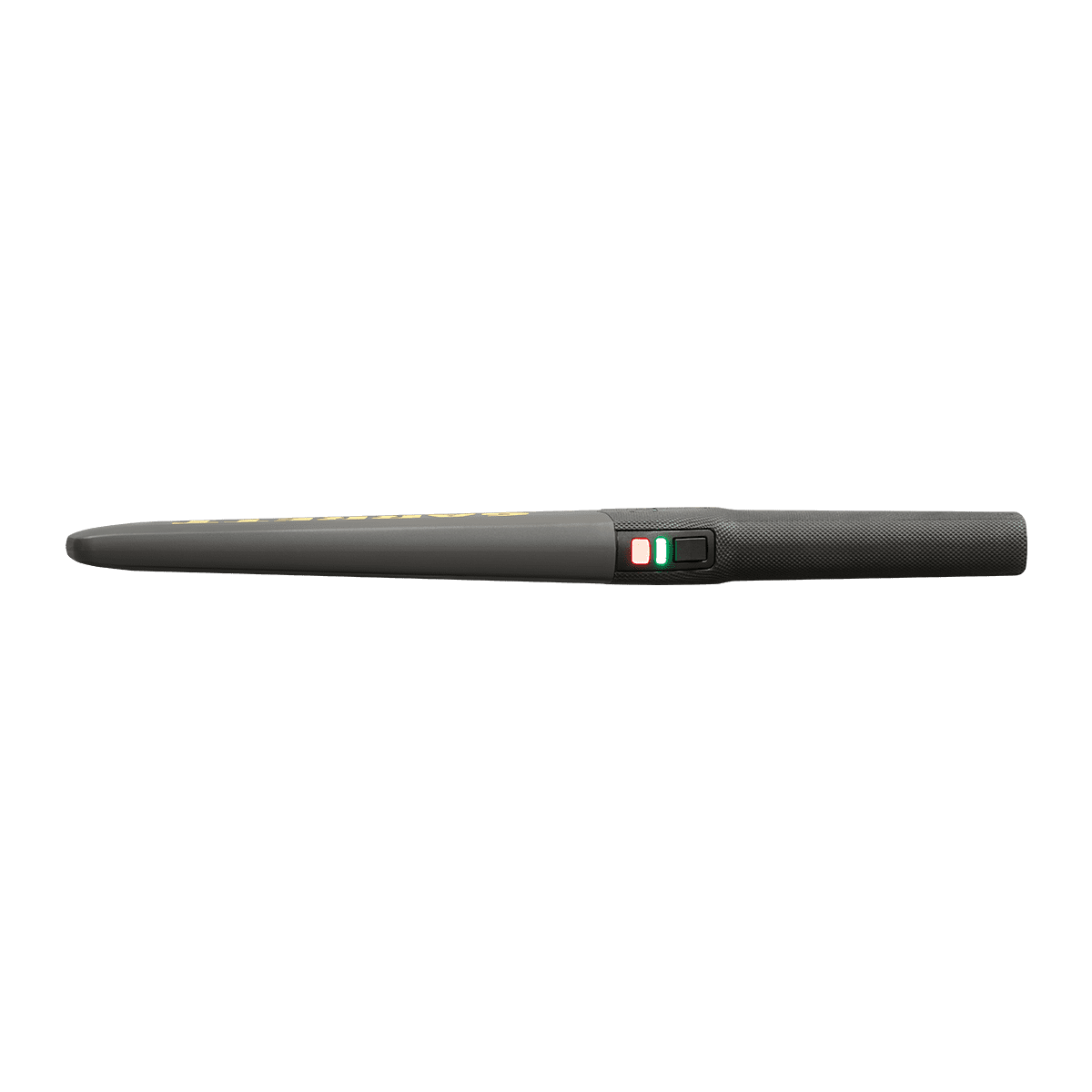

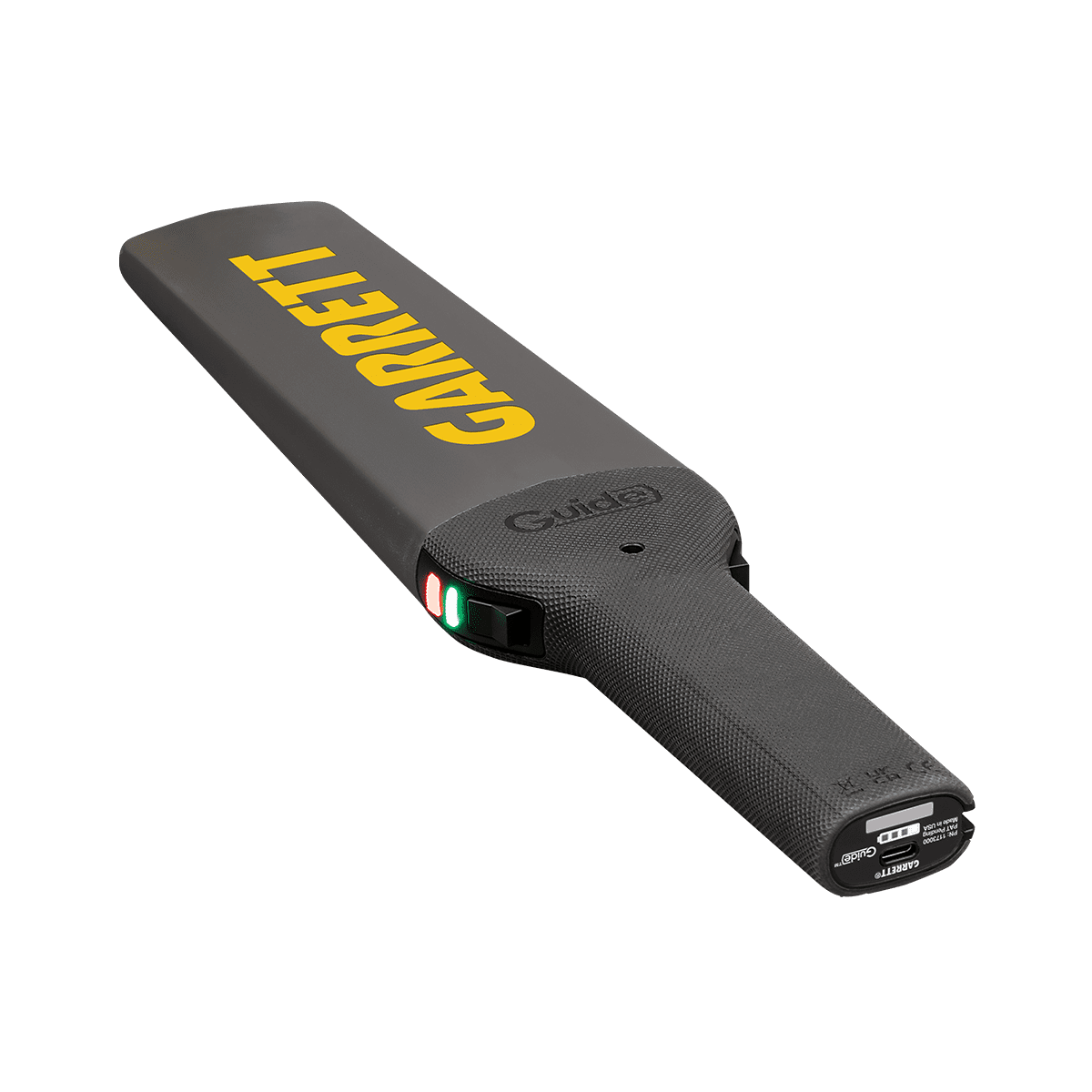

LED Indicators: Separate green and red Ready and Alarm LEDs indicate the scanning state of Guide, while soft white LEDs in the base display Status/Settings information.

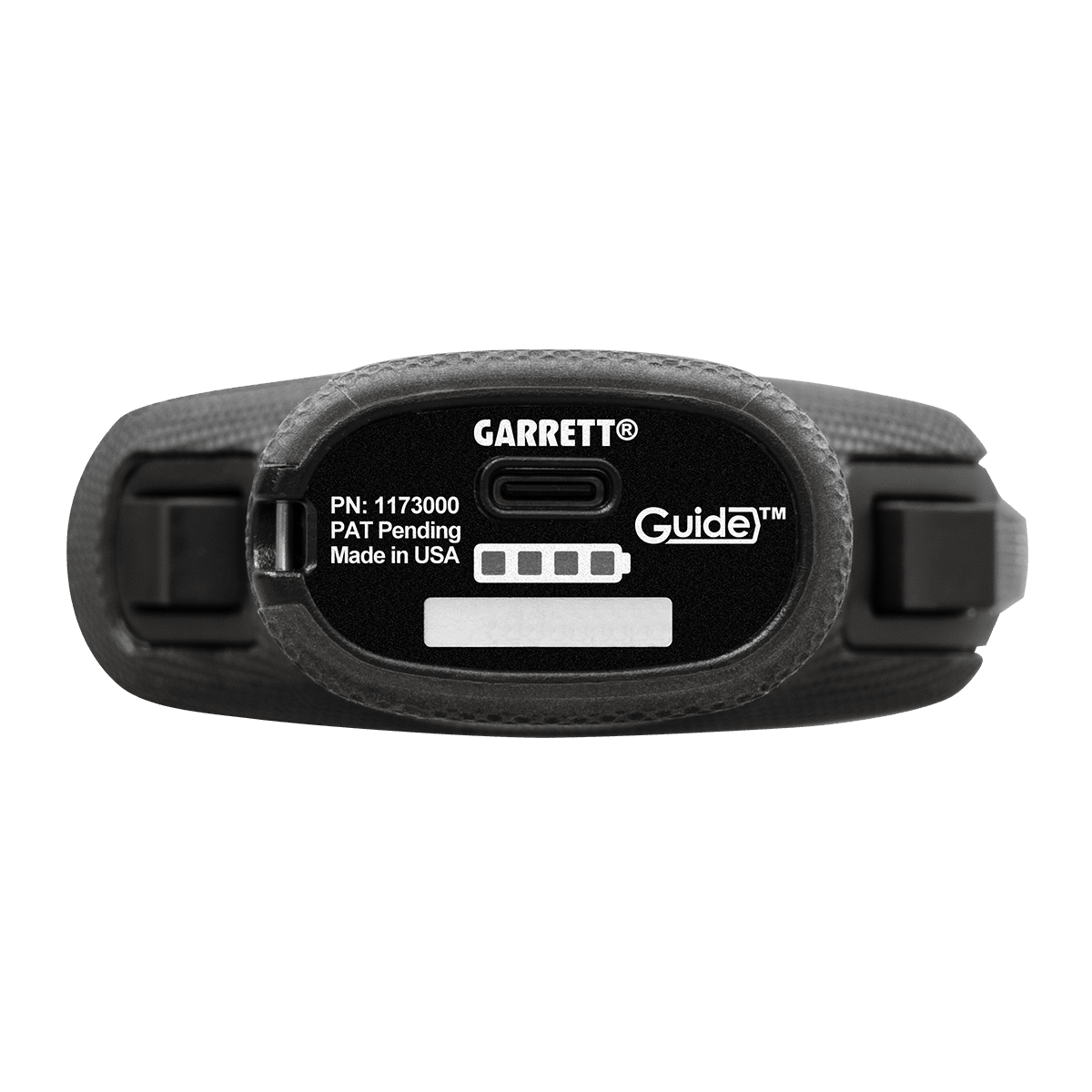

4-Level Charge Indication: Status/Settings LEDs display charge level from 0-25%, 26-50%, 51-75%, and 76-100%.
Audio or Vibrate Alarm: Rocker switch allows choice of audible alarm tone or haptic vibration alarms.

CLICK TO EXPLORE GUIDE

Find out more about key features and the technology behind the Guide^™ by clicking on the buttons below

BATTERY LEVEL INDICATOR

SPEAKER

THREE POSITION SWITCH

LED LIGHTS

LARGE SCANNING AREA

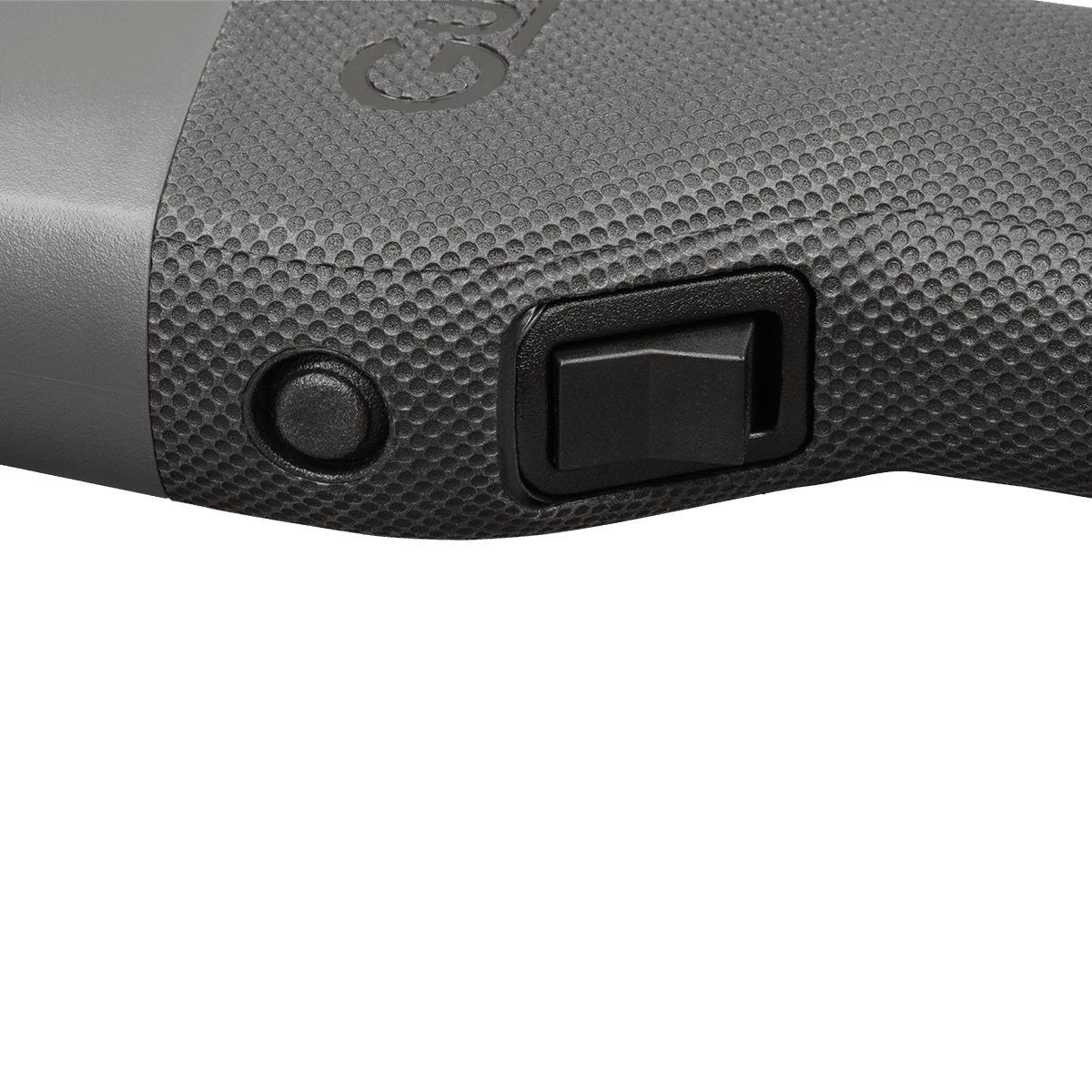

OFFSET BUTTON

REDUCED SENSITIVITY SWITCH

USB-C PORT

Detection Frequency: ~55 kHz
Audio Frequency: ~2kHz
Dimensions: Length: 16″ [406.4mm]
Width: 3.375″ [85.7mm]
Thickness: 1.125” [28.6mm]
Shipping Dimensions: Length: 21″ [533.4mm]
Width: 4″ [101.6mm]
Thickness: 2″ [50.8]
Weight: 1 lb [0.5Kg]
Voltage: 3.8 Vdc
Current: 15 mA typical
Battery: Lithium Ion 3.8V, 2.5Ahr
Operating Temperature: -4°F (-20°C) to 140°F (60°C)
Humidity: 100%
Environmental: IP65 rating

FREQUENTLY ASKED QUESTIONS

How does the alert system work?

Once a metal object passes through the device’s electromagnetic field, it triggers an audible alarm or vibration alert. It also activates a red LED light, alerting the security guard that a potential threat has been detected.
What makes this hand-held metal detector wand different from walk-through metal detectors?

u003ca class=u0022yellowu0022 href=u0022https://garrett.com/security/hand-heldu0022u003eHand-held detectorsu003c/au003e like the u003cemu003eGuideu003c/emu003e are designed for hands-on use, providing detailed and precise metal detection. Its compact size makes it ideal for secondary screening and targeted searches but it can also serve as a primary screening tool in certain environments.
